Description

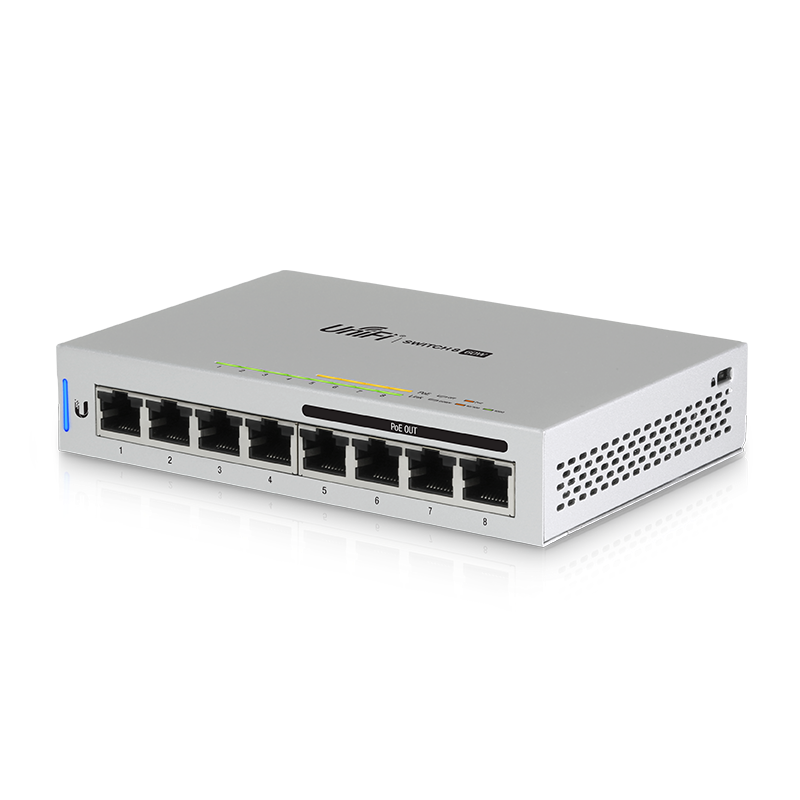

Ubiquiti UniFi Network Switch, US-8-60W, Gen1, 8-Port, POE 48W, (4) GbE PoE, (4) GbE Ports, Layer 2, No Mount, Silent, Fanless Cooling System.
An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.
(4) GbE PoE, (4) GbE ports
48W total PoE availability
Specifications:
| Mechanical | |
|---|---|
| Dimensions | 148 x 100 x 31 mm (5.8 x 3.9 x 1.2") |
| Weight | 432 g (15.2 oz) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (4) PoE (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Forwarding rate | 11.9 Mpps |
| Power method | (1) 48V DC, 2A Max. |
| Power supply | External AC/DC adapter: 100-240V AC, 50/60 Hz; 48V DC, 1.25A |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 12W (Excluding PoE output.) |
| Total available PoE | 48W |
| Max. PoE wattage per port by PSE | 15.4W |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Operating temperature | -5 to 45° C (23 to 113° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | PoE Link/Speed/Activity |
