Description

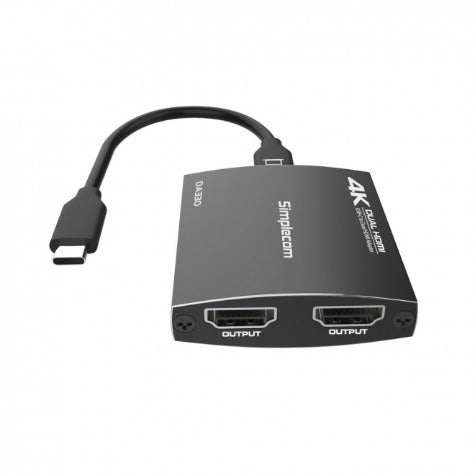

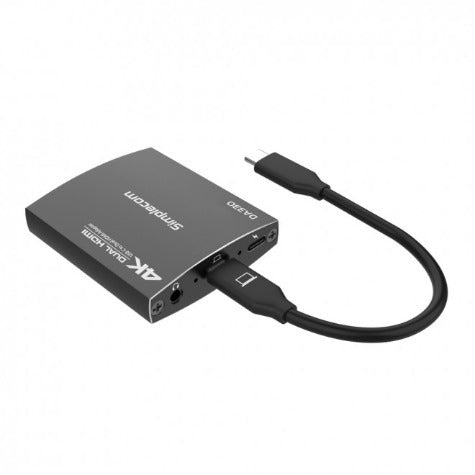

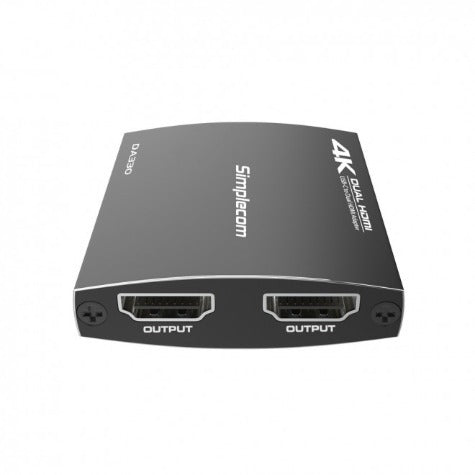

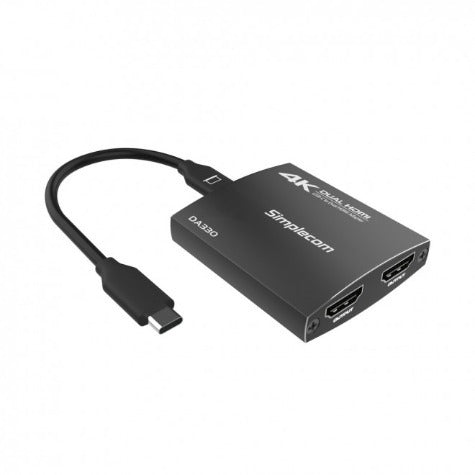

DA330 is a USB-C multiport MST (Multi Stream Transport) adapter offers dual HDMI outputs, USB-C Power Delivery, and 3.5mm audio output. It allows you to connect 2 screens simultaneously and supports both extend and mirror modes for Windows system.
DA330 supports display resolutions up to 4K@60Hz when single display is connected, and up to 4K@30Hz when two displays are connected. It also supports Power Delivery up to 100W charging via the USB-C port and one 3.5mm headphone jack for audio output.
Don't be restricted to the small screen on laptop, this adapter can significantly increase productivity by adding two screens to your laptop and ideal for multi-tasking. It’s a great solution for work or home office to display independent content on extra screens, and makes multi-tasking easier.
Features
- Support MST (Multi Stream Transport) for mirror or extended screen mode
- Connect 2 HDMI displays to your computer through a single USB-C port
- Support 2 mirrored screens or 2 extended screens
- Significantly increase productivity by adding multiple screens
- Support resolutions up to 4K@60Hz when single display is connected
- Support resolutions up to 4K@30Hz when two displays are connected
- Power Delivery supports up to 100W charging via the USB-C port

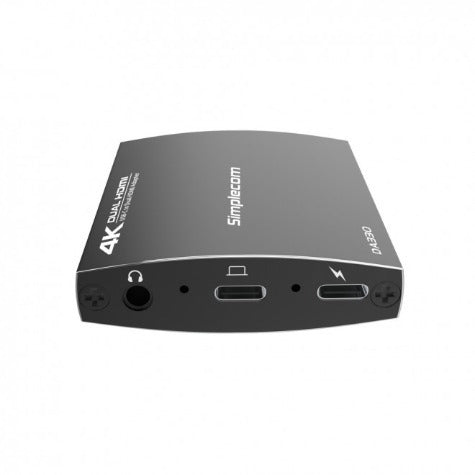

- 3.5mm headphone jack for audio output
- Plug and Play, no driver or software required
- Aluminum casing, durable and better heat dissipation
- MST supports Windows only, MacOS supports one extended screen only
Specifications
- Material: Aluminum
- Connection Ports: 2xHDMI, 3.5mm Audio, USB-C, USB-C PD
- HDMI Resolution (1 Display): Support up to 3840x2160 at 60Hz (4K@60Hz)
- HDMI Resolution (2 Displays): Support up to 3840x2160 at 30Hz (4K@30Hz)
- PD Charging: 1x USB-C Female (for charging only), up to 100W
- Operation Temperature: 0 - 50°C
- Cable Length: 10cm approx.
- Dimension: 6.2cm x 5.2cm x 1.5cm
System Requirements
- Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
- Windows 8 or above is required for MST and 2 Extended Screen support
- MacOS does not support MST technology and will only support one extended output
Important Note
- Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- 4K@60Hz resolution only can be supported when single display is connected
- The USB-C Female port is for PD Charging only, not for data transfer
- Please connect power delivery adapter when power is not enough
