Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

Simplecom
SKU: AUDSCSIM-CA152
Model Number: CA152

Price:
Sale price$13
Stock:
In stock

Description

Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

CA152 is a USB to 3.5mm audio and microphone adapter that turns your 3.5mm headphones into USB interface. The headphone jack is compatible with both TRS (three-conductor) plug headset and TRRS (four-conductor) plug headset with mic. Microphone jack is compatible TRS (three-conductor) plug microphone.

Not only for PC headphones with separate audio and microphone plugs, it’s also compatible with single TRRS plug mobile headset with both listening and talking support.

With built-in smart conversion chip, the headphones jack is able to automatically detect TRS or TRRS headset, the integrated mic will be enabled when a TRRS headset is plugged in, so you can also listen and talk when using a single cable headset with mic.

Wide support of operating systems, compatible with Windows PC, MacOS, Linux, Chrome OS and more.

  • USB to 3.5mm audio and microphone dual-port adapter
  • Headphone jack supports both listening and talking for TRRS (four-conductor) headset with mic
  • Microphone jack supports TRS (three-conductor) plug microphone
  • Plug and play, no driver software required
  • Premium aluminum casing for durable surface and stylish finishing
  • Durable and long-lasting braided cable
  • Compact and portable design, easy to carry
  • Widely supported operating systems for PC, Mac, Linux and more

Features

  • USB to 3.5mm audio and microphone dual-port adapter
  • Headphone jack supports both listening and talking for TRRS (four-conductor) headset with mic
  • Microphone jack supports TRS (three-conductor) plug microphone
  • Plug and play, no driver software required
  • Premium aluminum casing for durable surface and stylish finishing
  • Durable and long-lasting braided cable
  • Compact and portable design, easy to carry
  • Widely supported operating systems for PC, Mac, Linux and more

Specifications

  • Model: CA152
  • USB Interface: USB 2.0

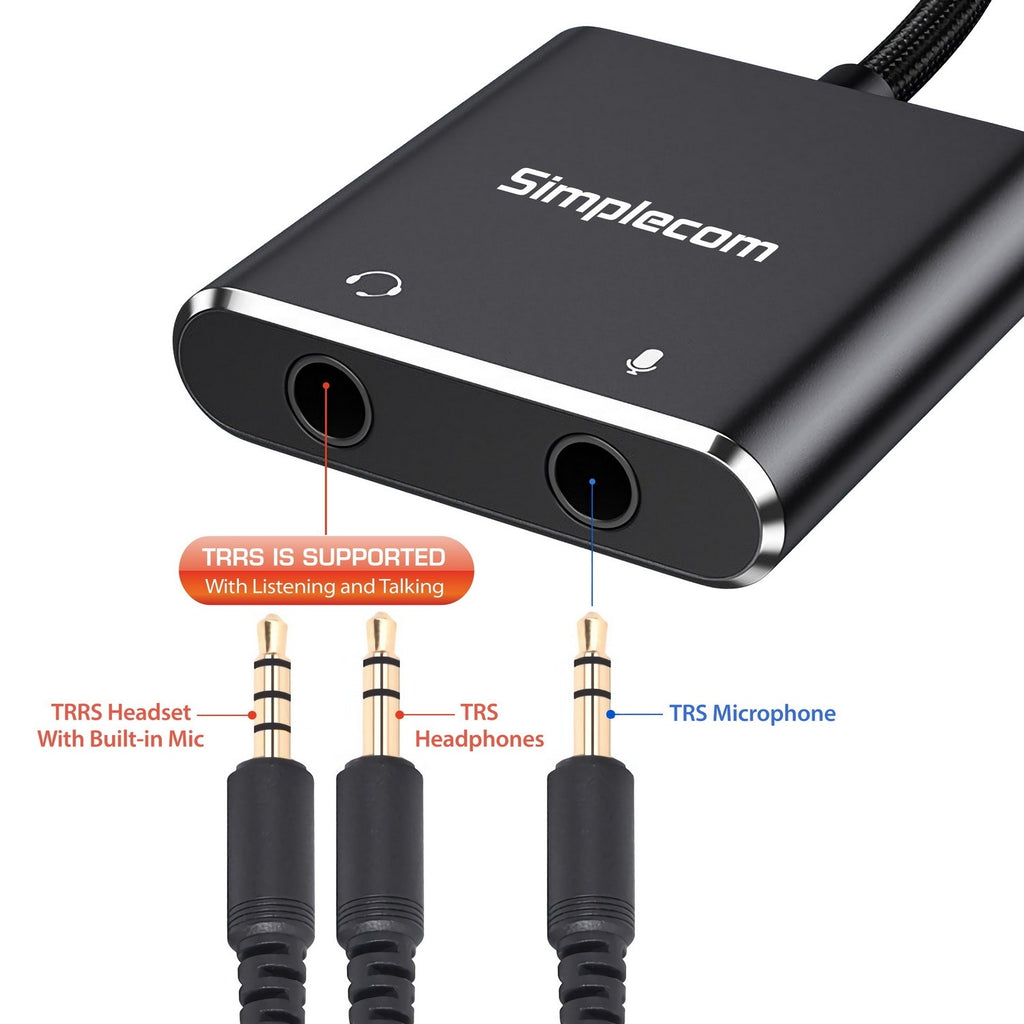

  • Headphones Jack: 3.5mm TRRS Female (four-conductor) with mic support
  • Microphone Jack: 3.5mm TRS Female (three-conductor)
  • Audio output: 24bit / 96Khz max (Stereo)
  • Material: Braided Cable + Aluminum Shell
  • Cable Length: 15cm (without connectors)
  • Dimension: 3.4cm x 3.3cm x 0.8cm
  • Weight: 18g
  • Operating system Support: Windows XP and above, MacOS 8.6 and above, Linux, Chrome OS, PS4, PS5, Switch

Important Notes:

  • The microphone port on the adapter will be disabled when a TRRS headset with integrated microphone is plugged in, and the microphone on the TRRS headset is activated.
  • Does not work with PS3, TV, Amplifier, Car, Xbox One. (The USB port on those devices do not carry audio signal)
  • Support CTIA standard TRRS headset only, legacy OMTP standard headset is not supported
  • No in-line control when using mobile headset, doesn’t support Pause, Play, Volume Up and Volume Down controls
