Description
Key Features & Benefits:

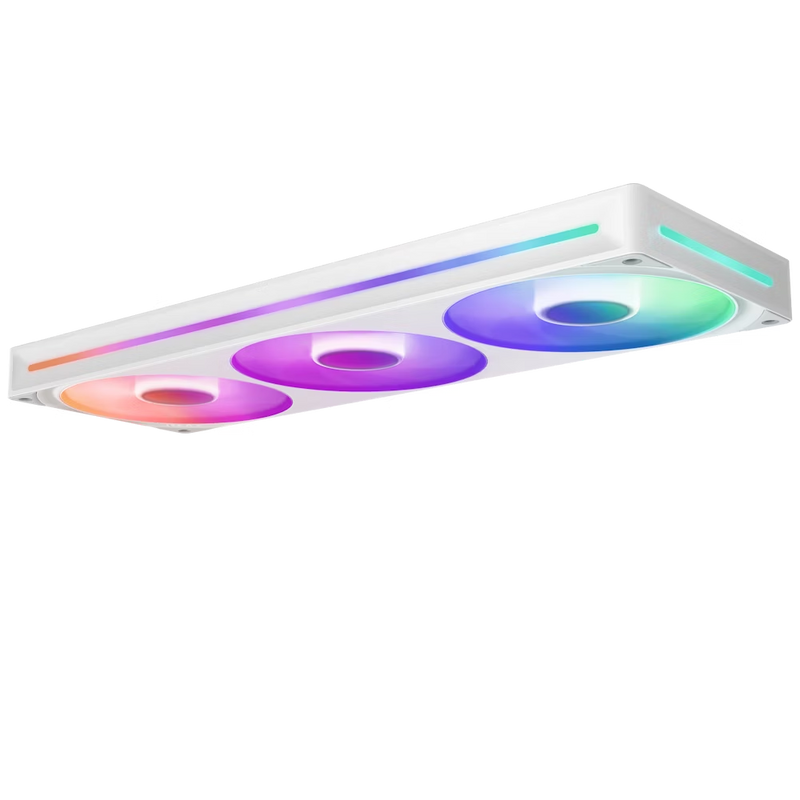

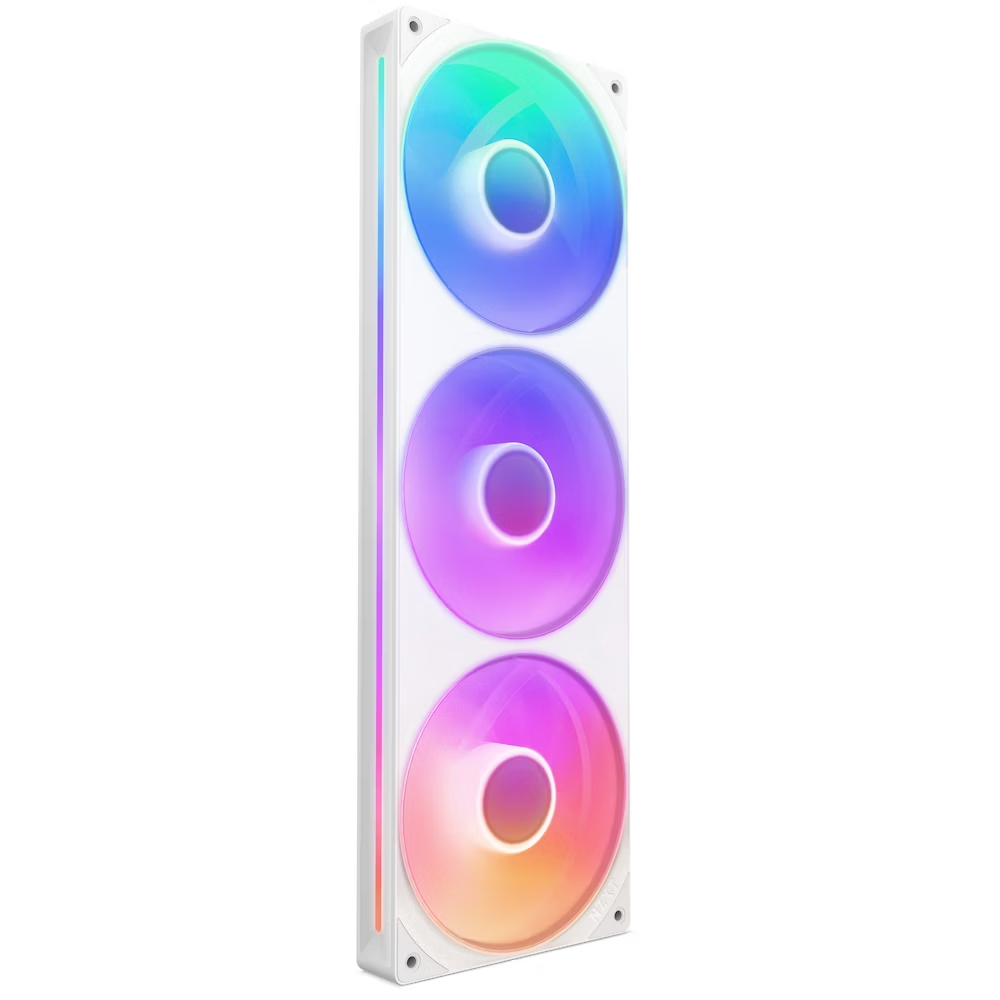

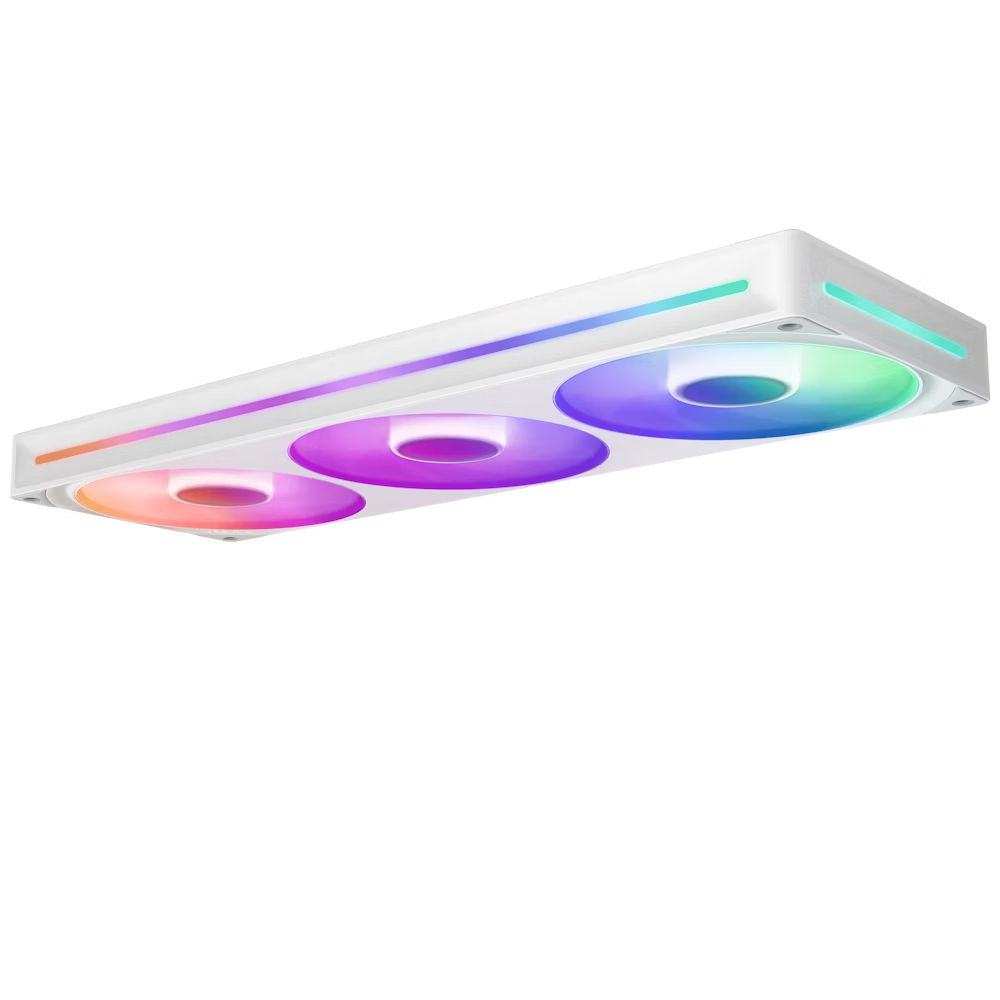

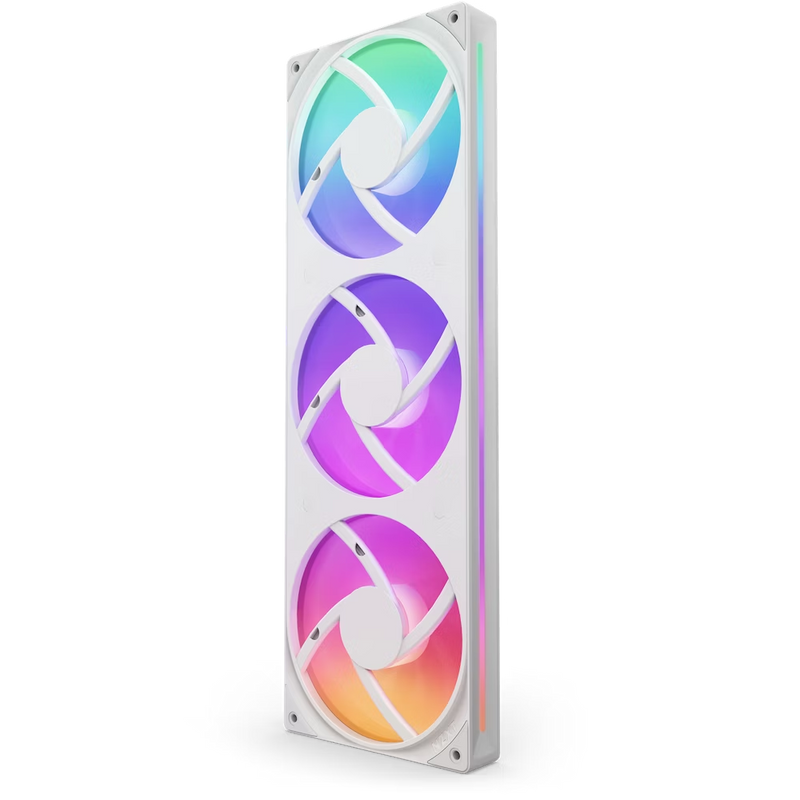

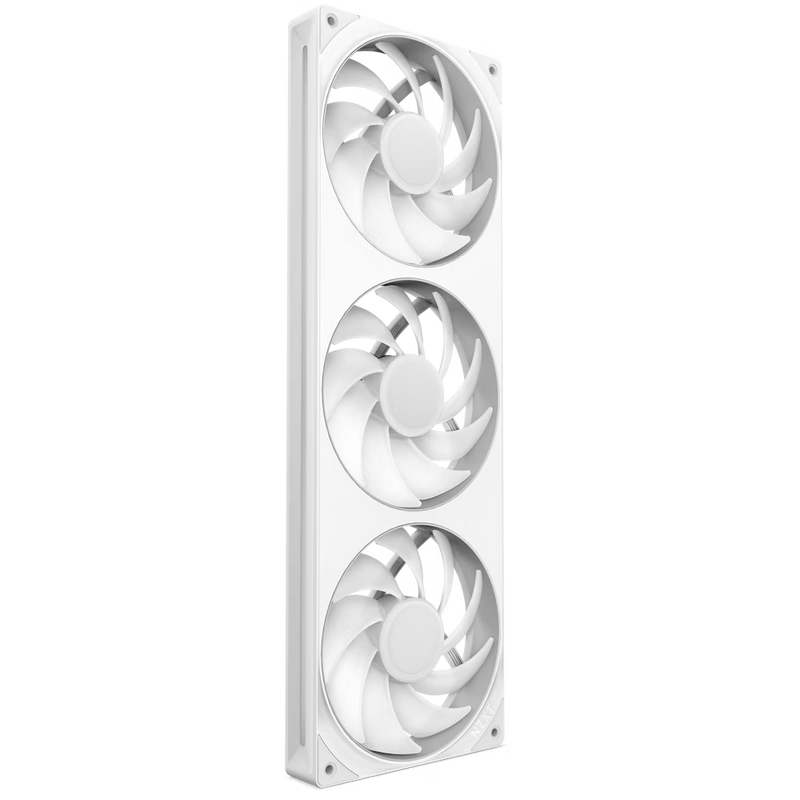

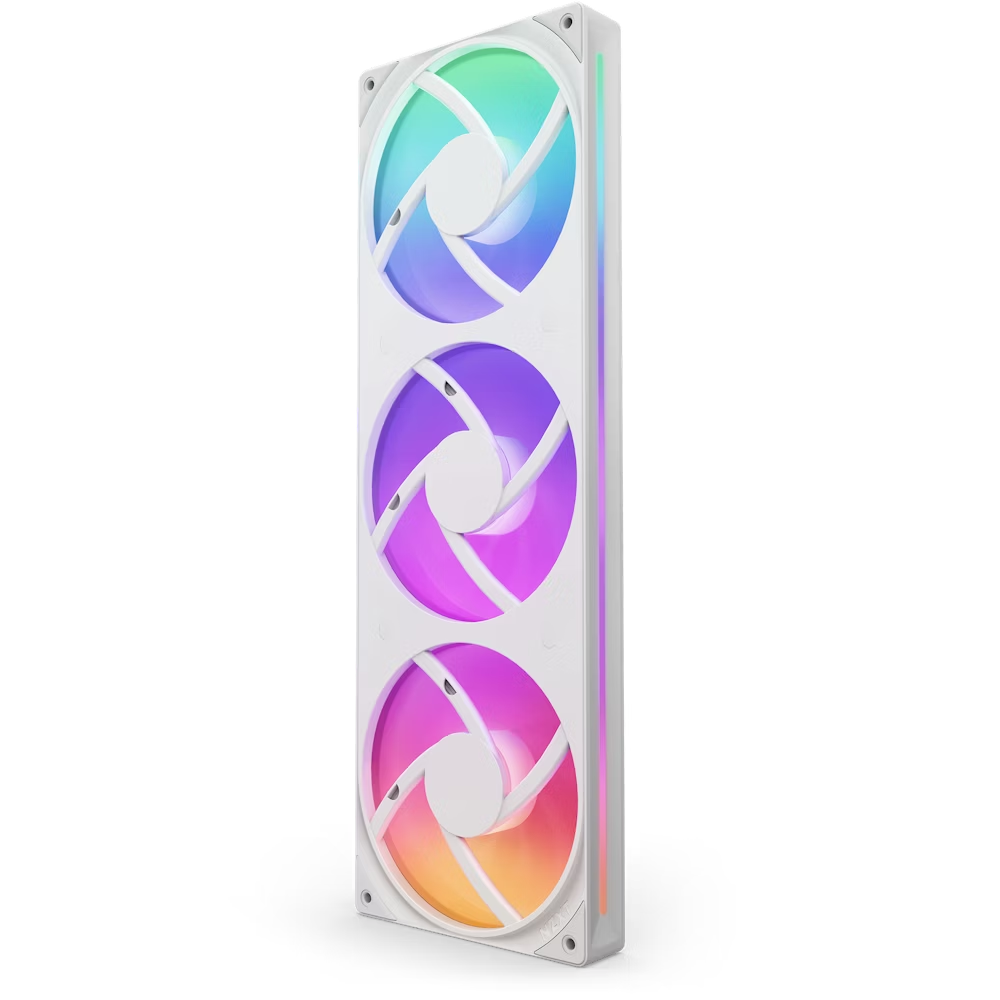

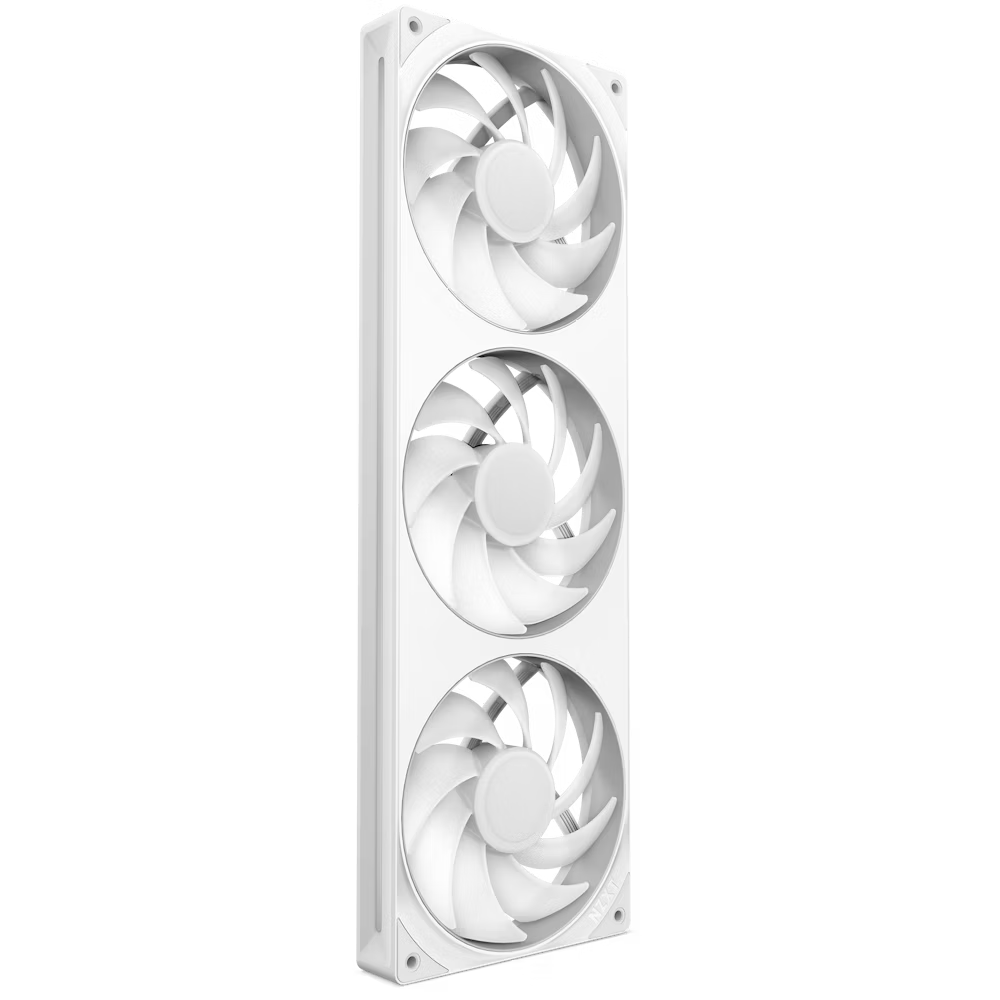

Streamlined Installation: The single-frame design consolidates multiple fans into one unit, simplifying setup and reducing cable clutter. Connect a single cable to an NZXT controller (sold separately) for full control over lighting and fan speeds via NZXT CAM software. Alternatively, use the included splitter cable to connect directly to any motherboard’s 5V ARGB header.
Enhanced Cooling Efficiency: The fan’s advanced blade design increases static pressure, pushing air through tight spaces with ease. Whether used as an intake or exhaust, it ensures optimal airflow and superior heat dissipation, perfect for liquid coolers or heatsinks.
Brilliant RGB Lighting: Featuring eight individually addressable RGB LEDs per fan hub, the NZXT F Series delivers vibrant and customizable lighting effects. The LEDs are diffused through semi-translucent blades, creating a visually stunning display.
Quiet and Stable Operation: Fluid Dynamic Bearings (FDB) provide smooth and quiet fan operation with an impressive lifespan of up to 60,000 hours. Anti-vibration rubber corners reduce noise caused by vibrations, ensuring a quieter performance at any speed.
Dynamic PWM Control: The 4-pin PWM connector allows the fan to adjust its speed based on your PC’s temperature, balancing cooling performance with noise levels for maximum efficiency.
Flexible Connectivity: Includes a splitter cable with 4-pin PWM for fan control and 5V RGB for lighting. The cable length and connectors are designed for easy integration into your build, enhancing versatility.
Inside the Box:
1 x RGB Core Fan
4 x Mounting Screws
1 x Splitter Cable
Tech Specs:
Dimensions:
Height: 360 mm
Width: 120 mm
Depth: 26 mm
Fan Specifications:
Speed: 500 - 2,400 ± 250 RPM per fan
Airflow: 75.12 CFM per fan
Static Pressure: 3.3 mm H₂O per fan
Noise Level: 30.00 dBA per fan
Power Consumption: 12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W
Bearing Type: Fluid Dynamic Bearing
LED Quantity: 8 LEDs per fan
Connector: 8-pin for PWM & RGB
Cable Length: 600 mm
Cable Specifications:
Splitter Cable Connections & Length:
4-pin PWM Fan Cable: 300 mm
5V RGB & 4-pin NZXT RGB Cable: 100 mm
