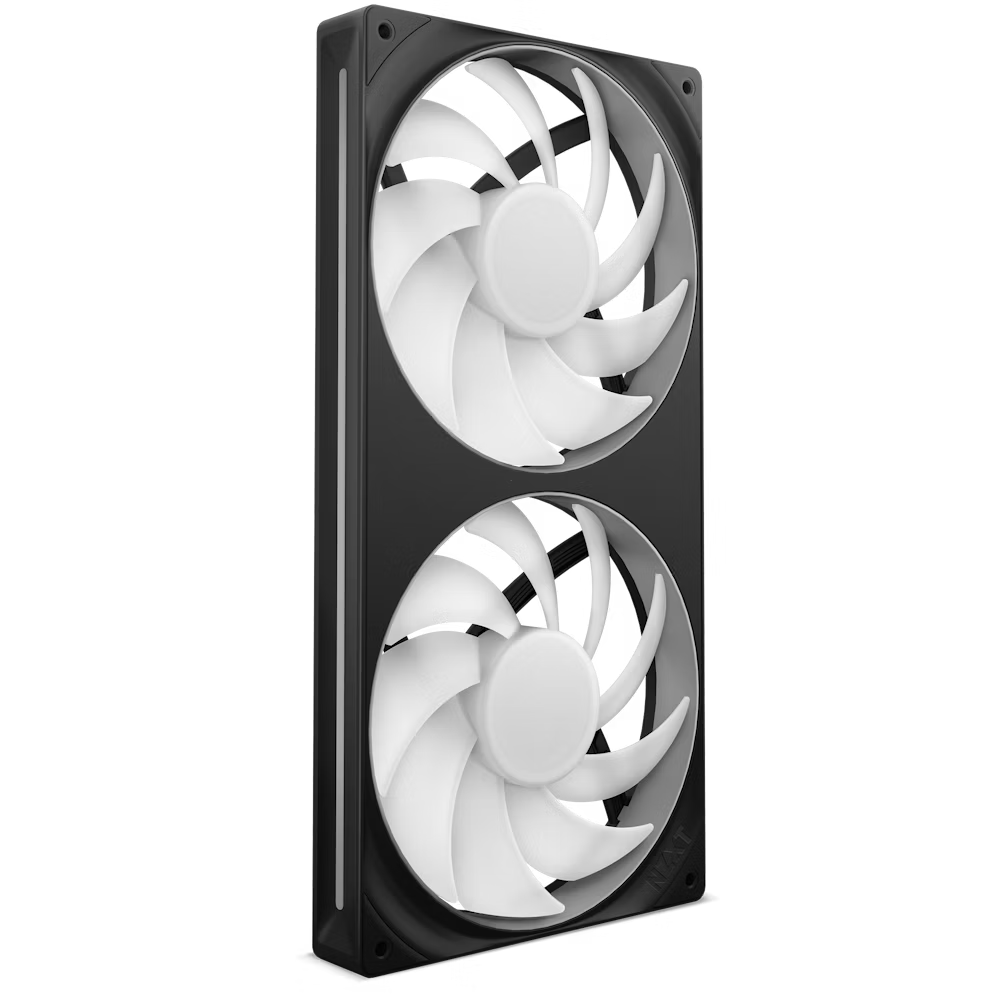

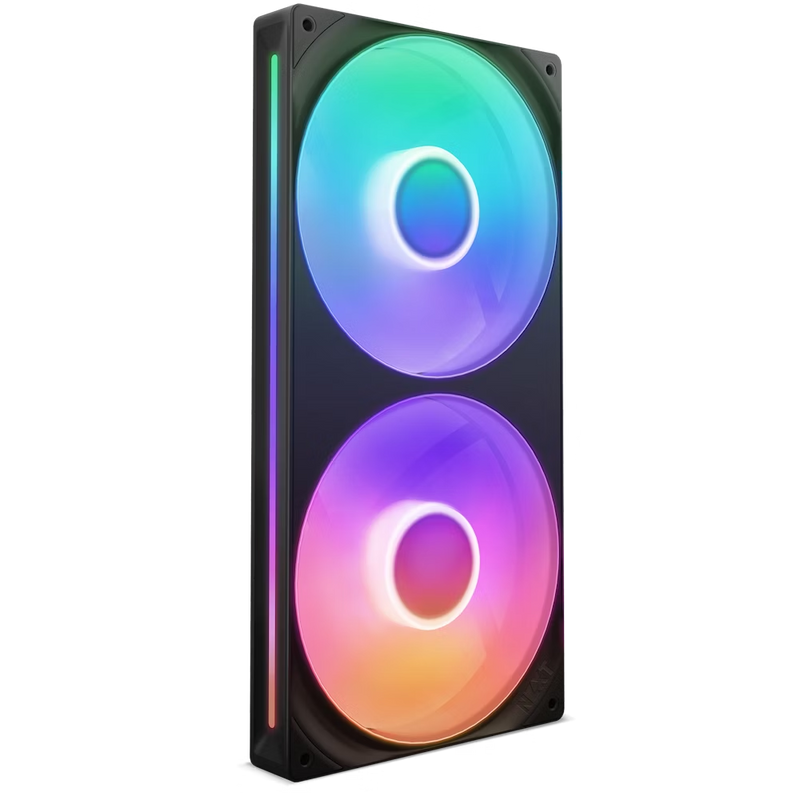

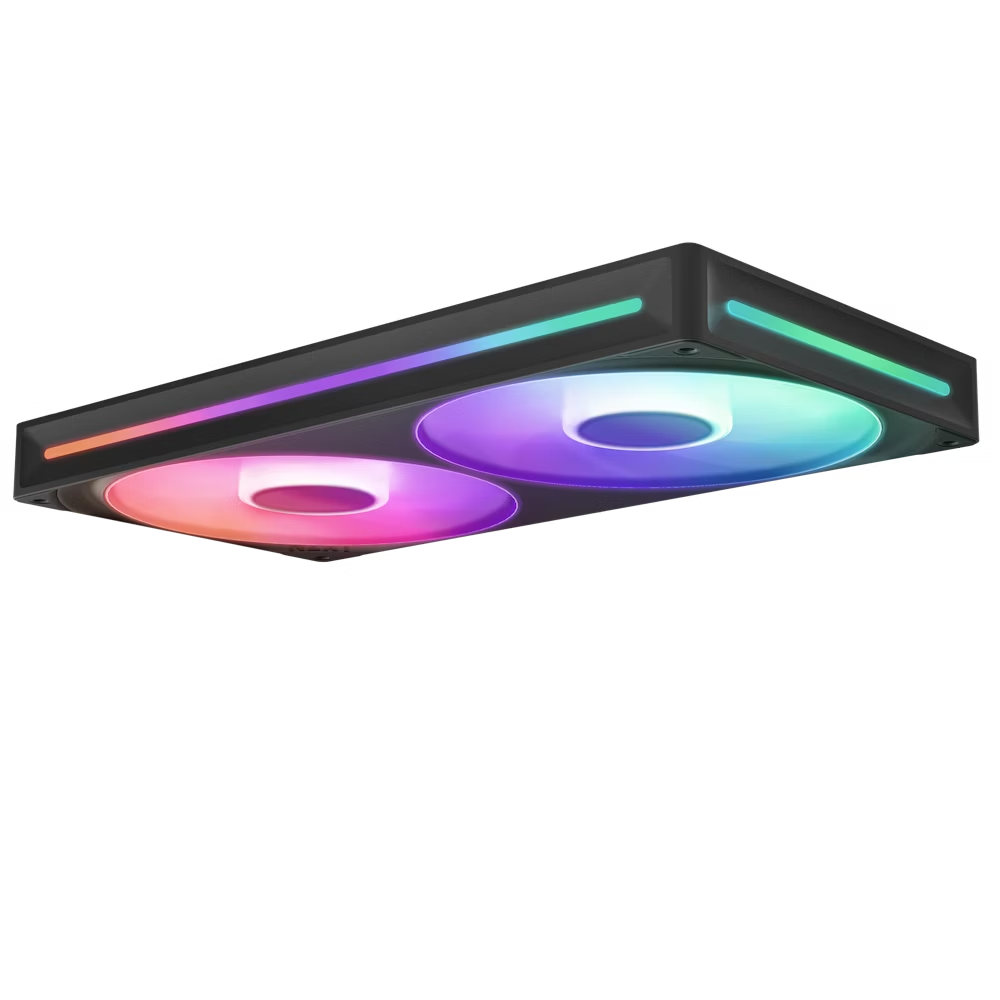

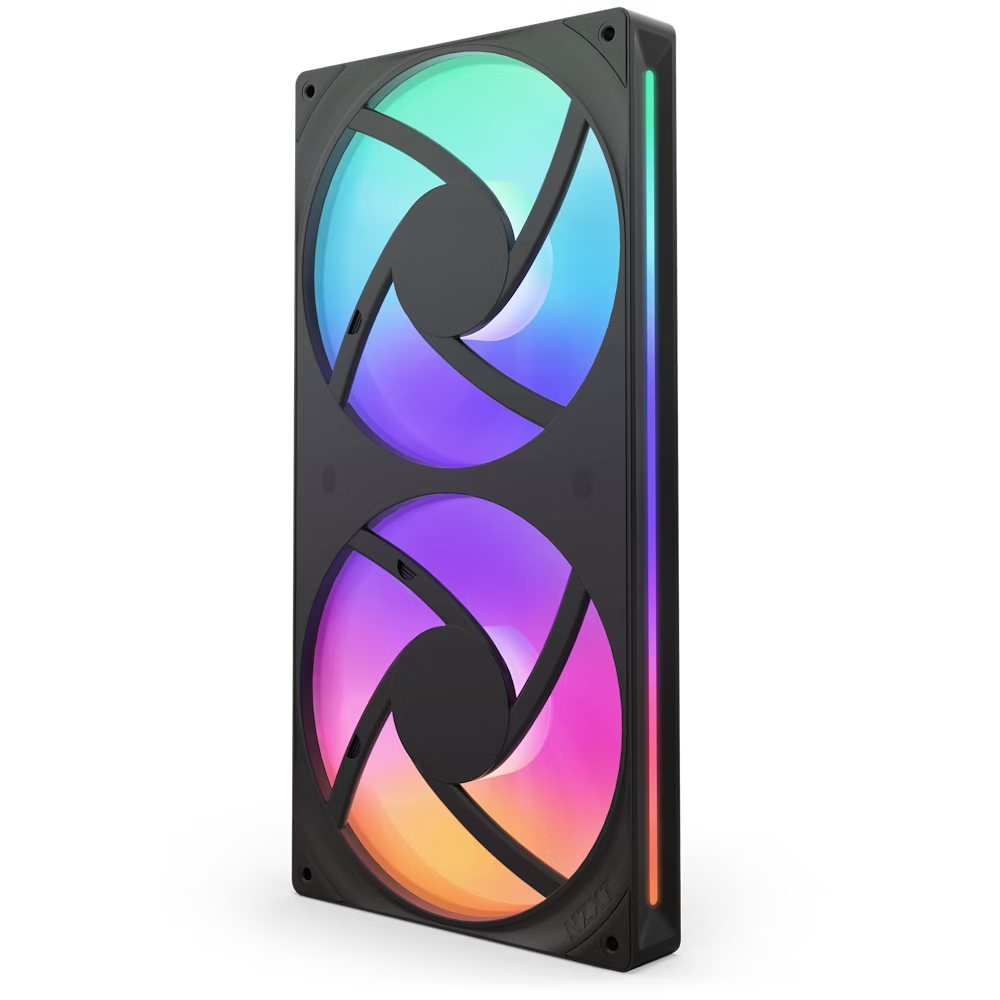

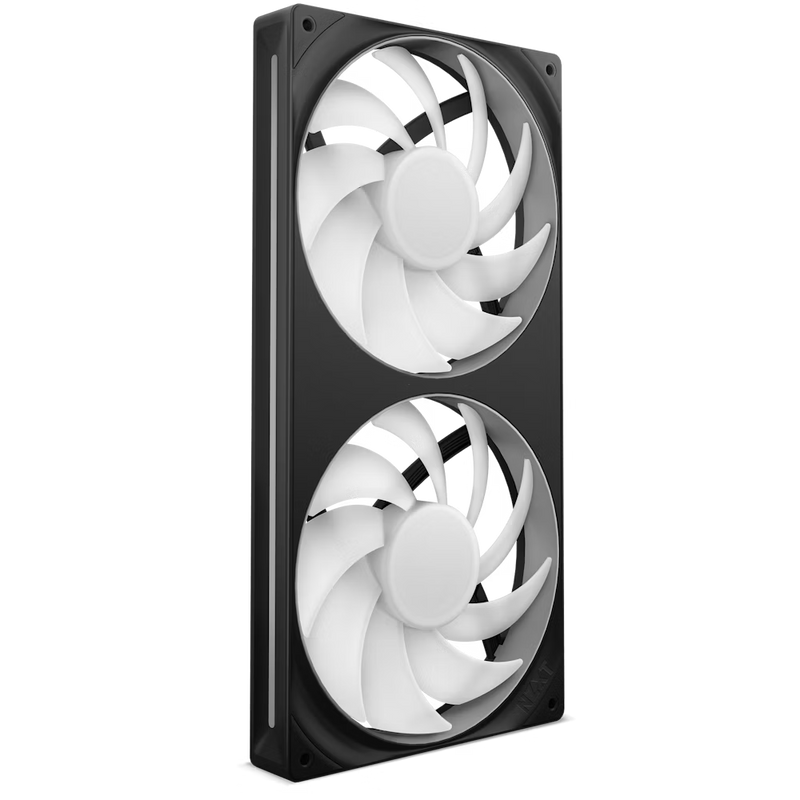

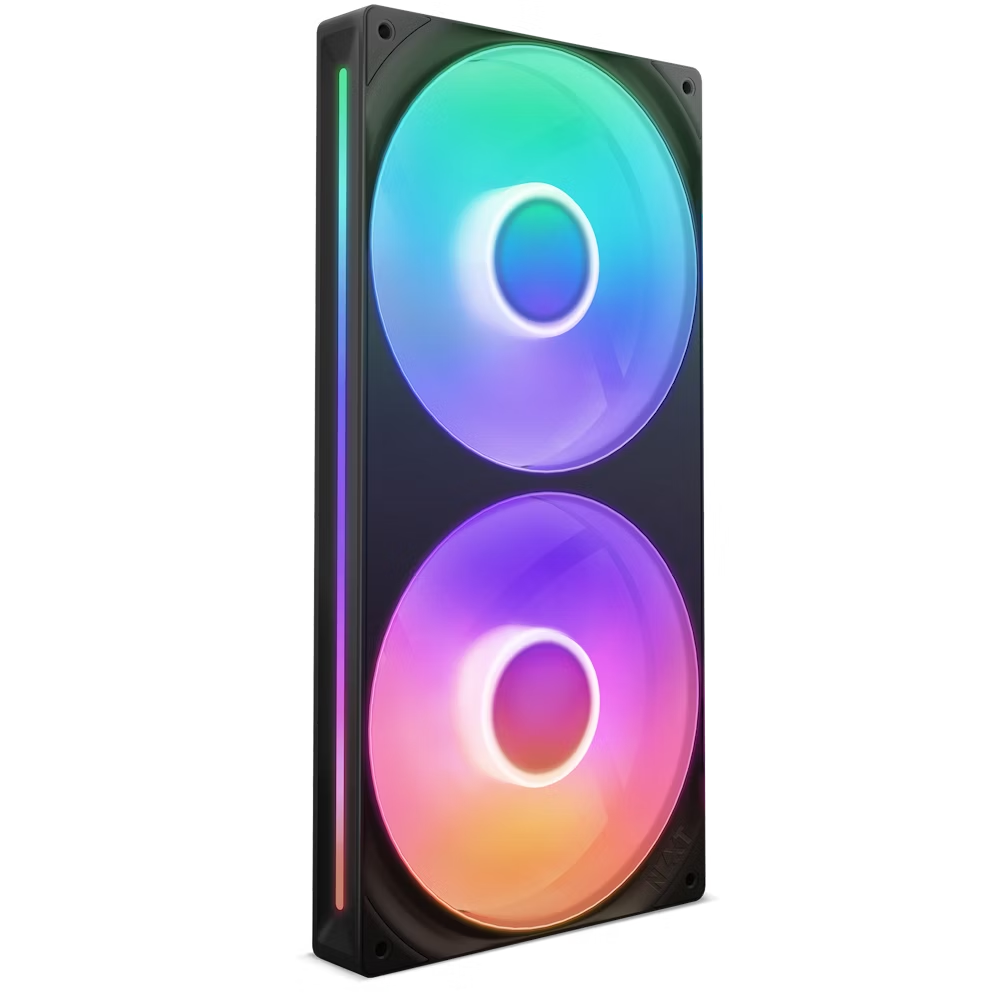

NZXT RF-U28HF-B1 F280RGB CORE FAN SINGLE FRAME - BLACK

NZXT
SKU: CL280U28HFB1
Model Number: RF-U28HF-B1

Price:
Sale price$79
Stock:
Sold out

Description

Key Features & Benefits:

Effortless Integration: The single-frame design integrates multiple fans into one unit, simplifying installation and lighting control. No need for separate connections for each fan; just connect a single cable to an NZXT controller (sold separately) for complete control over lighting and fan speeds via NZXT CAM software. Alternatively, use the included splitter cable to connect to any motherboard’s 5V ARGB header.
Enhanced Cooling Performance: Engineered with a refined blade design, this fan excels in boosting static pressure to push air through tight spaces, ensuring optimal airflow. Whether used as an intake or exhaust fan, it provides superior cooling performance to keep your system running efficiently.
Vibrant RGB Lighting: Each fan features eight individually addressable RGB LEDs mounted on the hub, diffused through semi-translucent blades. This setup delivers brilliant and customizable lighting effects that enhance the visual appeal of your build.
Quiet and Stable Operation: Fluid Dynamic Bearings (FDB) ensure smooth, stable, and quiet fan operation, with a lifespan of up to 60,000 hours. The anti-vibration rubber corners effectively reduce noise caused by vibrations, allowing for hushed performance at any speed.
Dynamic PWM Control: The 4-pin PWM connector allows the fan to dynamically adjust its speed based on your PC’s temperature, optimizing cooling performance while minimizing noise. Enjoy the perfect balance of efficiency and quiet operation.
Versatile Connectivity: The fan comes with a splitter cable, featuring 4-pin PWM for fan control and 5V RGB for lighting, making it compatible with a wide range of setups. Cable length and connectors are designed for easy integration into your build.


 Tech Specs:

Dimensions:

Height: 280 mm
Width: 140 mm
Depth: 26 mm
Fan Specifications:

Speed: 500 - 2,000 ± 200 RPM per fan
Airflow: 75.12 CFM per fan
Static Pressure: 3.32 mm H₂O per fan
Noise Level: 34.5 dBA per fan
Bearing Type: Fluid Dynamic Bearing
Power Consumption: 12V DC, 0.56A, 6.72W / 5V DC, 0.45A, 2.25W
LED Quantity: 8 LEDs per fan
Connector: 8-pin for PWM & RGB
Cable Length: 600 mm
Cable Specifications:

Splitter Cable Connections & Length:
4-pin PWM Fan Cable: 300 mm
5V RGB & 4-pin NZXT RGB Cable: 100 mm


Inside the Box:

1 x RGB Core Fan
4 x Mounting Screws
1 x Splitter Cable
