Description
Tech Specs Overview:

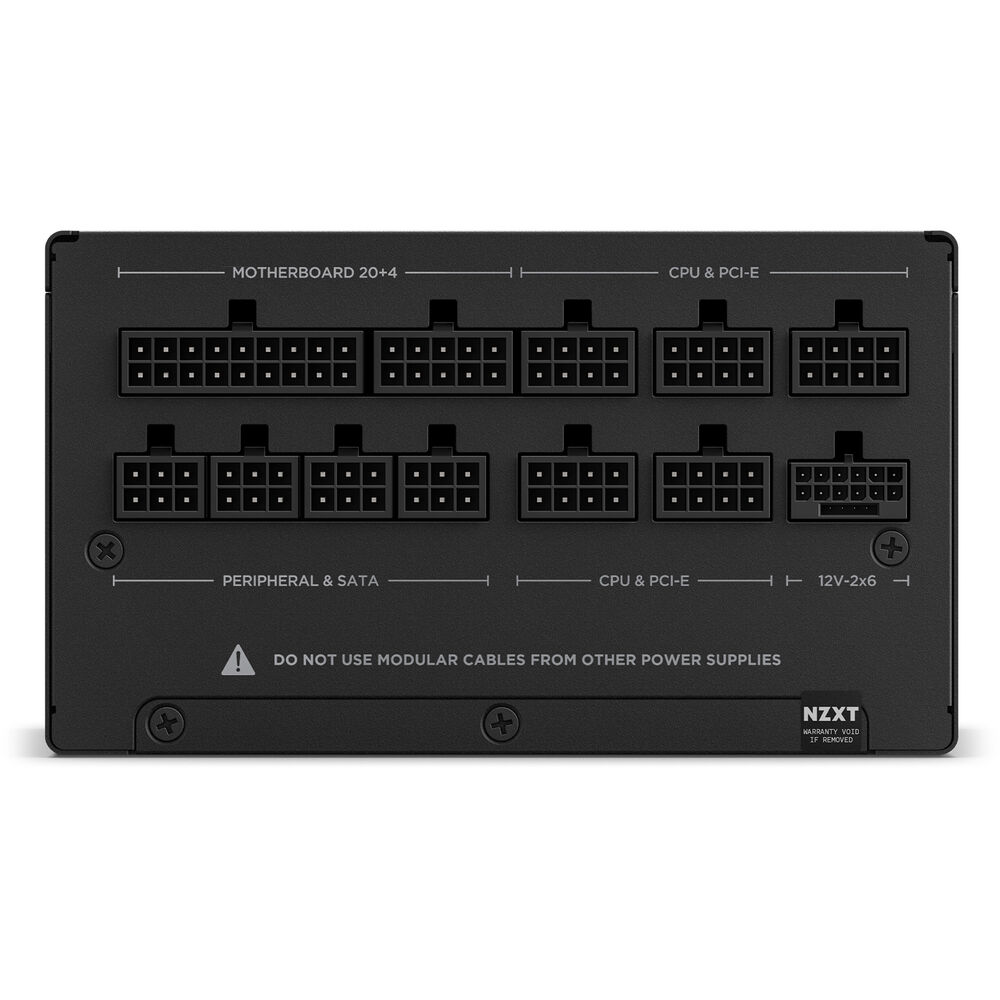

Output Connectors:
24-pin ATX Power Cable: 1
4+4-pin CPU Power Cable: 1
8-pin CPU Power Cable: 1
6+2-pin PCIe Power Cable: 3
16-pin (12+4) 12V-2x6 PCIe Cable: 1
SATA Cable: 12
Peripherals Cable: 4
Cable Specs:
24-pin ATX Power Cable: 600mm with nylon sleeving
4+4-pin CPU Power Cable: 700mm with nylon sleeving
8-pin CPU Power Cable: 700mm with nylon sleeving
6+2-pin PCIe Power Cable: 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving
SATA Cable: 500 + 150mm
Peripherals Cable: 500 + 150mm
AC Input Rating:
100 - 240Vac: 10A-5A 50Hz-60Hz
DC Output Rating:
3.3V / +5V: 22A (120W)
12V: 70.83A (850W)
5Vsb: 3A (15W)
Total: 850W
Energy Efficiency:
Rating: 80 Plus Gold
10% loading: 85.8% @115Vac
20% loading: 89.5% @115Vac
50% loading: 91.7% @115Vac
100% loading: 89.2% @115Vac
Electrical Features:
PF Correction: Active @0.99
Protections: OVP (Overvoltage Protection), UVP (Undervoltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Overpower Protection), OCP (Overcurrent Protection)
Fan Specs:
Dimensions: 135 x 135 x 25 mm
Speed: 2300 ± 10% RPM
Airflow: 93.02 CFM (Min.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)
Operation:
MTBF: 100,000 hours
Temperature: 0 - 50 °C
Dimensions:
Width: 150 mm
Height: 86 mm
Depth: 160 mm
General:
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v3.1 / EPS12V v2.92
Regulation & amp; Certification: FCC, Canada, CE, CB (IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
The PA-8G2B PSU ensures superior power delivery with advanced efficiency and robust protection features, making it ideal for both enthusiast and professional builds alike. & nbsp;
Explore the PA-8G2B today and elevate your system's power performance to new heights.
