Description
the PA-12G1B Power Supply Unit. Crafted to meet the exacting demands of high-performance computing, this PSU is designed to elevate your system's capabilities to new heights.

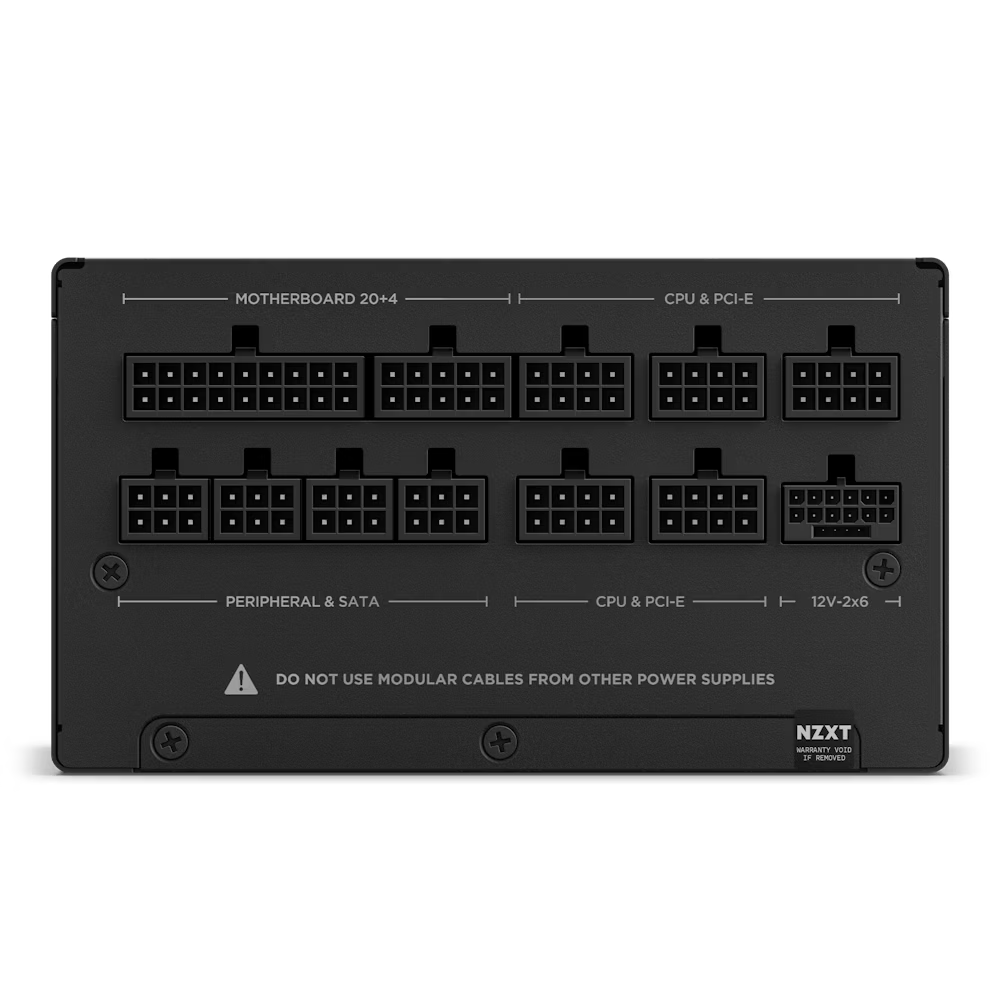

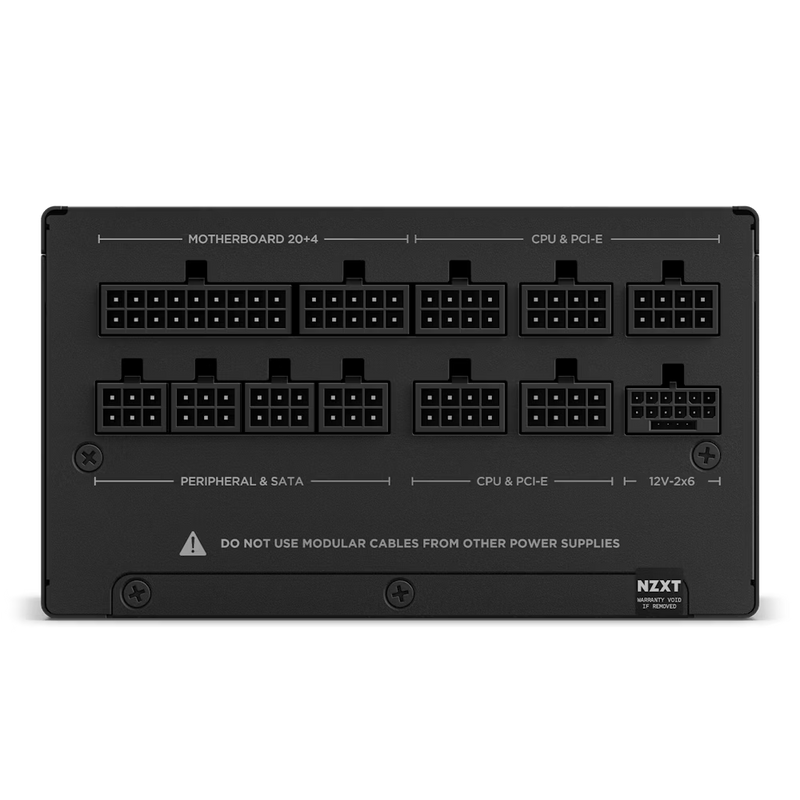

Output Connectors:
24-pin ATX Power Cable: 1
4+4-pin CPU Power Cable: 1
8-pin CPU Power Cable: 1
6+2-pin PCIe Power Cable: 3
16-pin (12+4) 12V-2x6 PCIe Cable: 1
SATA Cable: 12
Peripherals Cable: 4
Cable Specs:
24-pin ATX Power Cable: 600mm with nylon sleeving
4+4-pin CPU Power Cable: 700mm with nylon sleeving
8-pin CPU Power Cable: 700mm with nylon sleeving
6+2-pin PCIe Power Cable: 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving
SATA Cable: 500 + 150mm
Peripherals Cable: 500 + 150mm

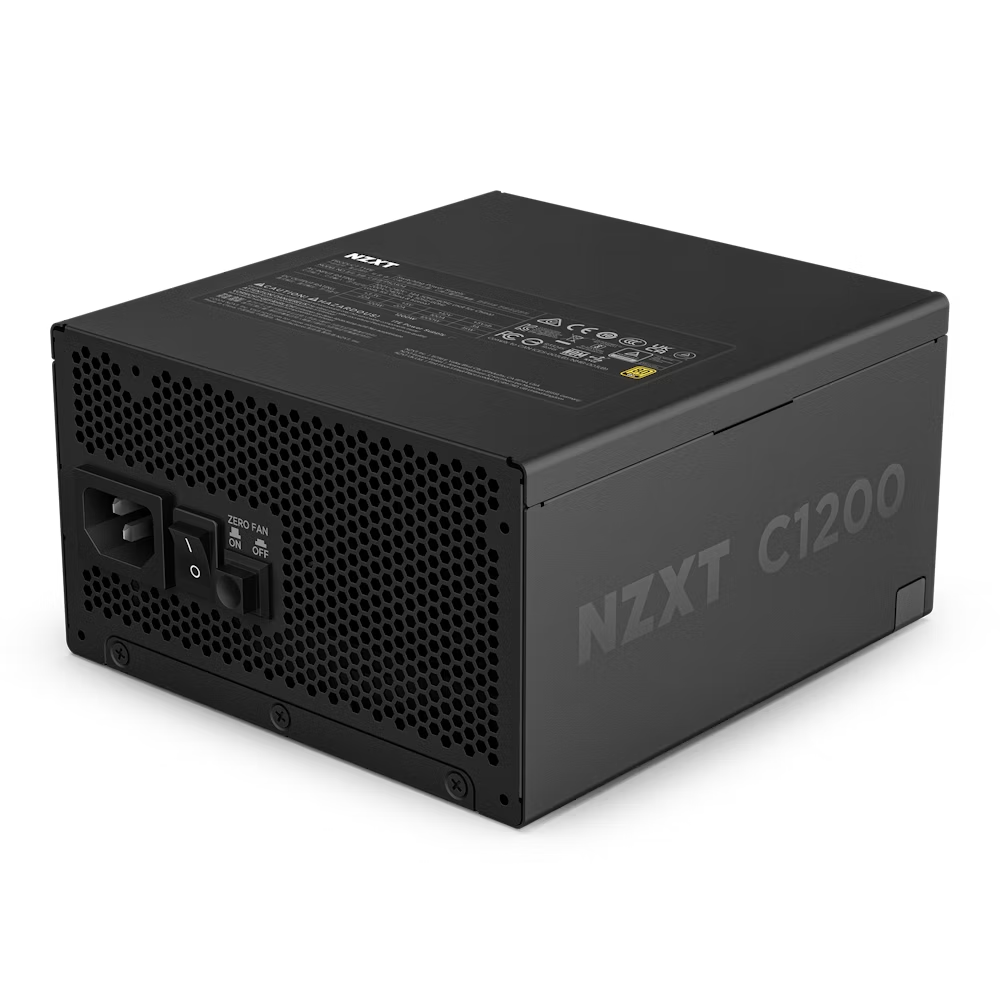

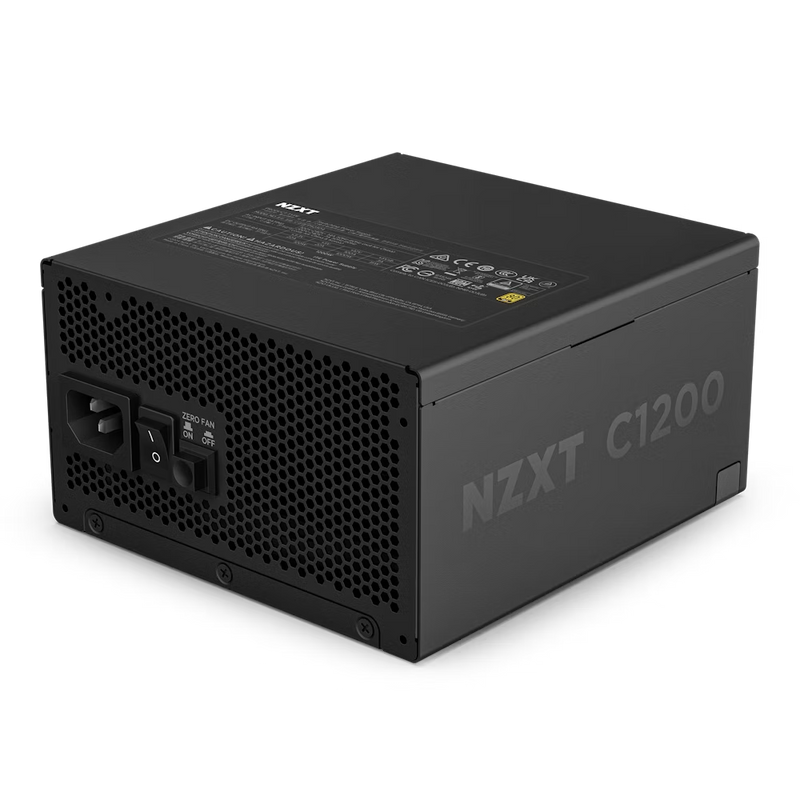

AC Input Rating:
100 - 240Vac: 14A 50Hz-60Hz
200 - 240Vac: 7A 50Hz-60Hz (China & South Korea)
DC Output Rating:
3.3V / +5V: 22A (120W)
12V: 100A (1200W)
5Vsb: 3A (15W)
Total: 1200W
Energy Efficiency:
Rating: 80 Plus Gold
10% loading: 85% @115Vac
20% loading: 90.1% @115Vac
50% loading: 91.6% @115Vac
100% loading: 88.7% @115Vac
Electrical Features:
PF Correction: Active @0.99
Protections: OVP (Overvoltage Protection), UVP (Undervoltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Overpower Protection), OCP (Overcurrent Protection)

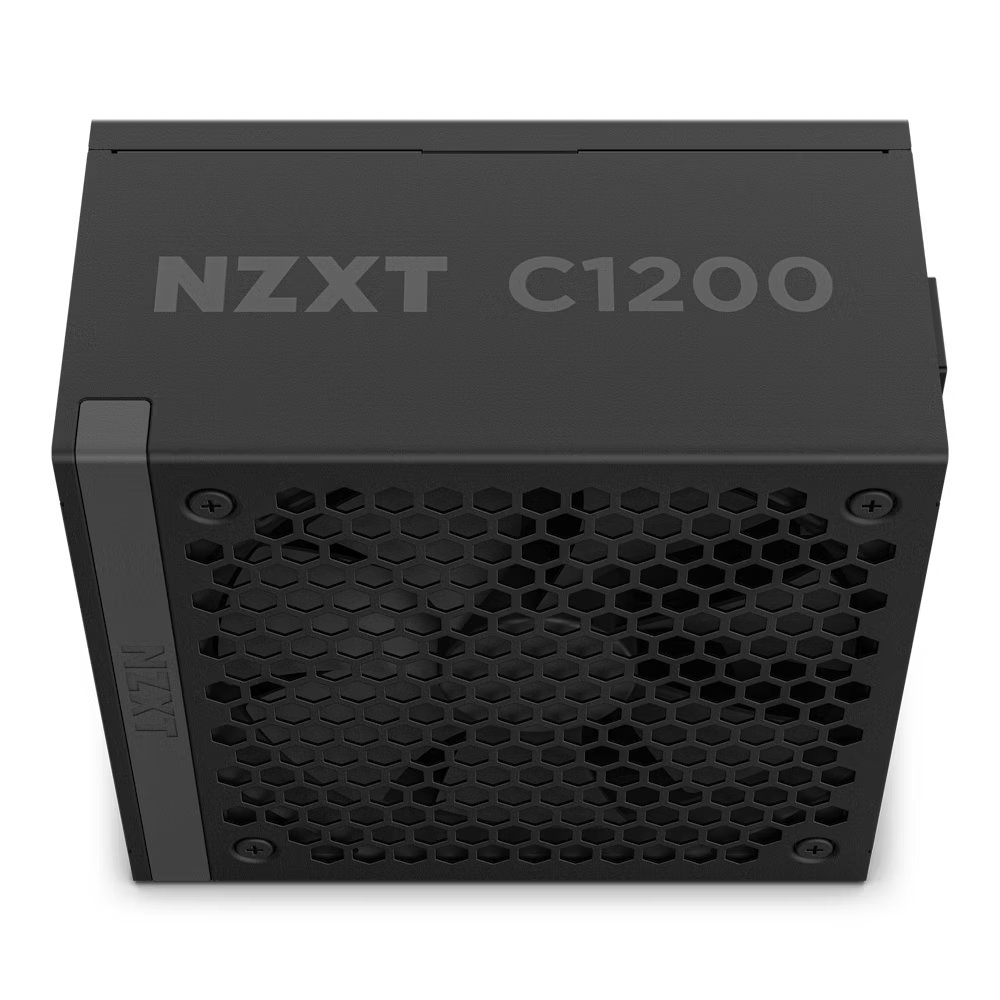

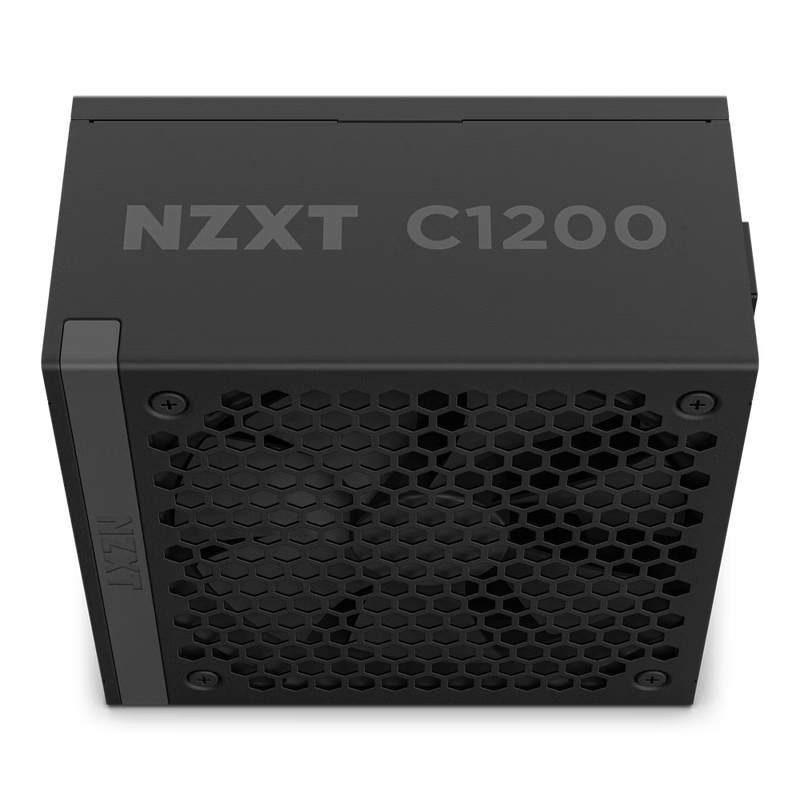

Fan Specs:
Dimensions: 135 x 135 x 25 mm
Speed: 2300 ± 10% RPM
Airflow: 93.02 CFM (Min.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)
Operation:
MTBF: 100,000 hours
Temperature: 0 - 50 °C
Dimensions:
Width: 150 mm
Height: 86 mm
Depth: 160 mm
General:
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v3.1 / EPS12V v2.92
Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
The PA-12G1B PSU is not just a power supply; it's a cornerstone of reliability and performance for enthusiasts and professionals alike. Built with premium materials and certified for global compliance, it ensures your system runs smoothly and safely under all conditions. the PA-12G1B is your definitive choice for powering high-end gaming rigs, professional workstations, and more. Unlock the full potential of your system today with the PA-12G1B Power Supply Unit.
