Description

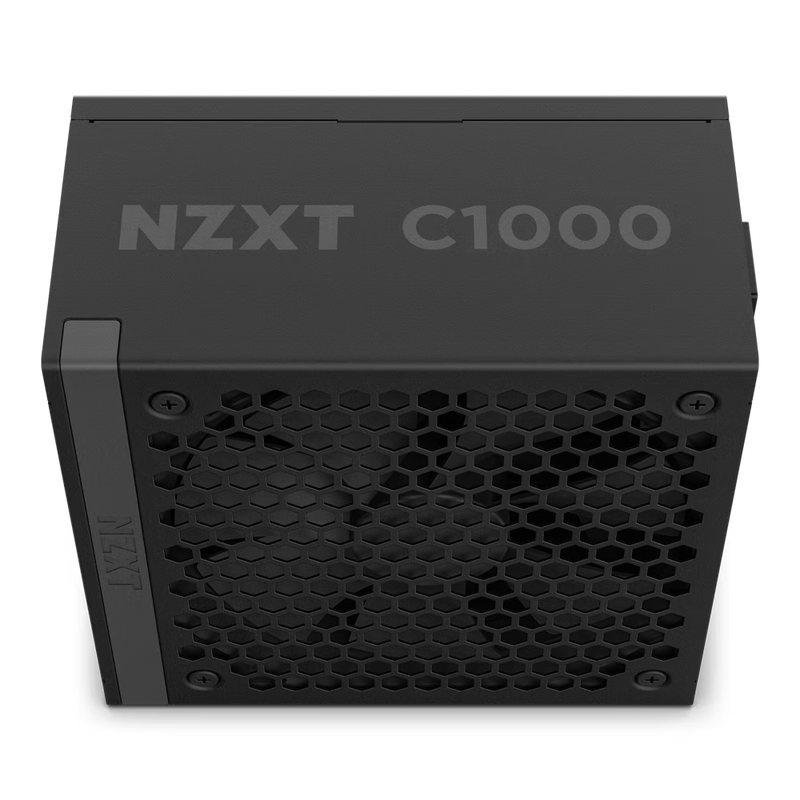

Discover the ultimate in power and reliability with the PA-10G1B Power Supply Unit, meticulously engineered to meet the demands of high-performance computing.

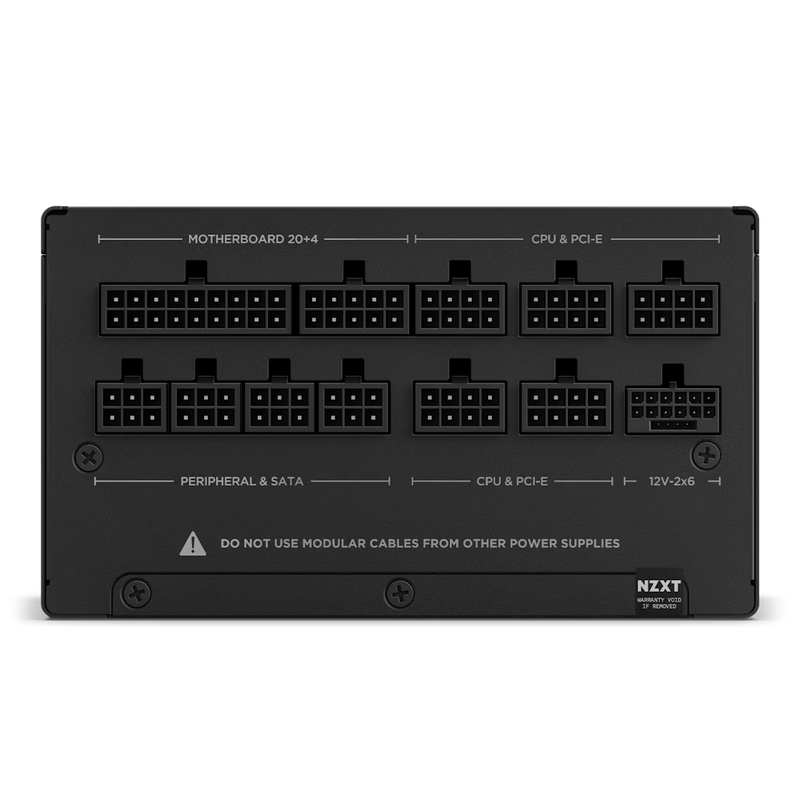

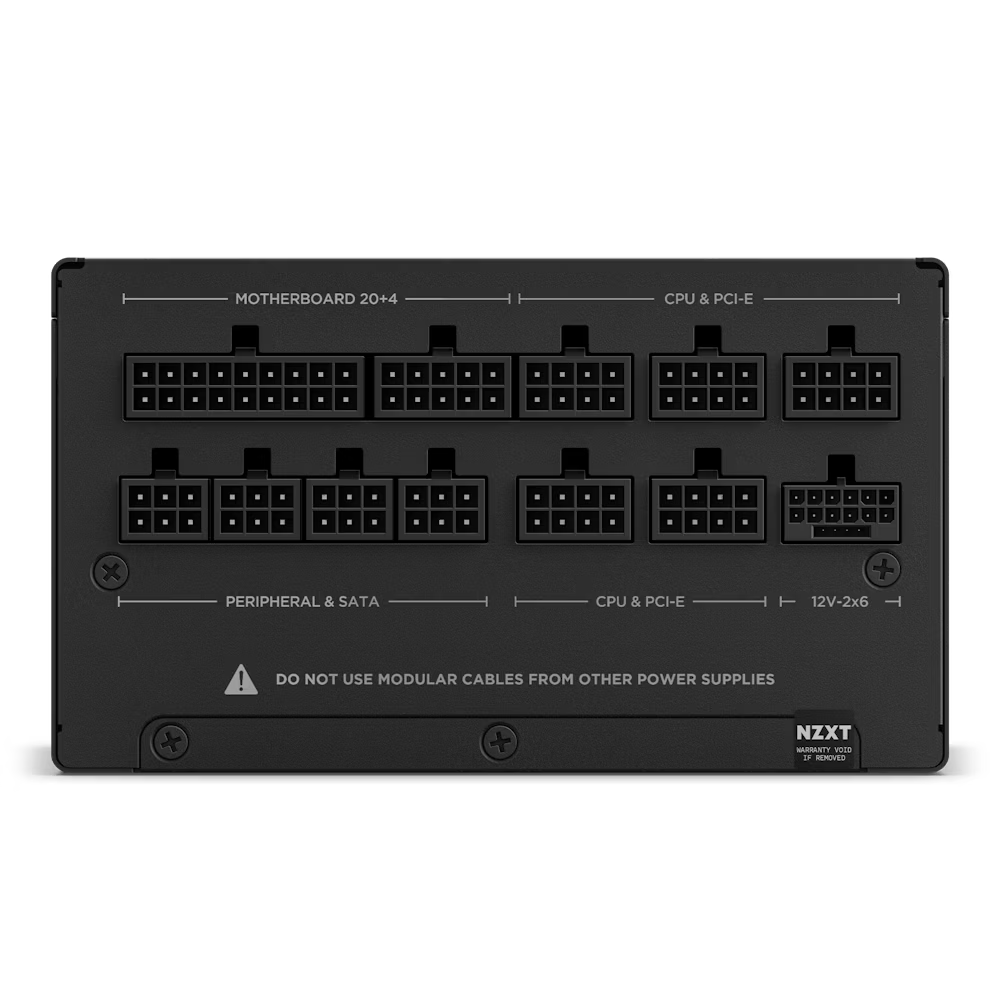

Output Connectors:
24-pin ATX Power Cable: 1
4+4-pin CPU Power Cable: 1
8-pin CPU Power Cable: 1
6+2-pin PCIe Power Cable: 3
16-pin (12+4) 12V-2x6 PCIe Cable: 1
SATA Cable: 12
Peripherals Cable: 4
Cable Specs:
24-pin ATX Power Cable: 600mm with nylon sleeving
4+4-pin CPU Power Cable: 700mm with nylon sleeving
8-pin CPU Power Cable: 700mm with nylon sleeving
6+2-pin PCIe Power Cable: 650mm with nylon sleeving
16-pin (12+4) 12V-2x6 PCIe Cable: 650mm with nylon sleeving
SATA Cable: 500 + 150mm
Peripherals Cable: 500 + 150mm
AC Input Rating:
100 - 240Vac: 13A 50Hz-60Hz
200 - 240Vac: 6.5A 50Hz-60Hz (China & South Korea)
DC Output Rating:
3.3V / +5V: 22A (120W)
12V: 83.3A (1000W)
5Vsb: 3A (15W)
Total: 1000W
Energy Efficiency:
Rating: 80 Plus Gold
10% loading: 85.5% @115Vac
20% loading: 89.7% @115Vac
50% loading: 91.9% @115Vac
100% loading: 89.3% @115Vac
Electrical Features:
PF Correction: Active @0.99
Protections: OVP (Overvoltage Protection), UVP (Undervoltage Protection), SCP (Short Circuit Protection), OTP (Over Temperature Protection), OPP (Overpower Protection), OCP (Overcurrent Protection)
Fan Specs:
Dimensions: 135 x 135 x 25 mm
Speed: 2300 ± 10% RPM
Airflow: 93.02 CFM (Min.)
Noise: 44.5 dBA max
Bearing: Fluid Dynamic Bearing (FDB)
Operation:
MTBF: 100,000 hours
Temperature: 0 - 50 °C
Dimensions:
Width: 150 mm
Height: 86 mm
Depth: 160 mm
General:
Material(s): Steel, PCB and Plastic
Compliance Standard: ATX12V v3.1 / EPS12V v2.92
Regulation & Certification: FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65
The PA-10G1B PSU sets a new standard in power delivery and efficiency, perfect for enthusiasts and professionals seeking uncompromising performance. Built with durable materials and equipped with advanced protection mechanisms, it ensures stability and longevity under intense workloads. Backed by extensive certifications and a 10-year warranty, the PA-10G1B is your reliable choice for powering today's most demanding systems.
