Description

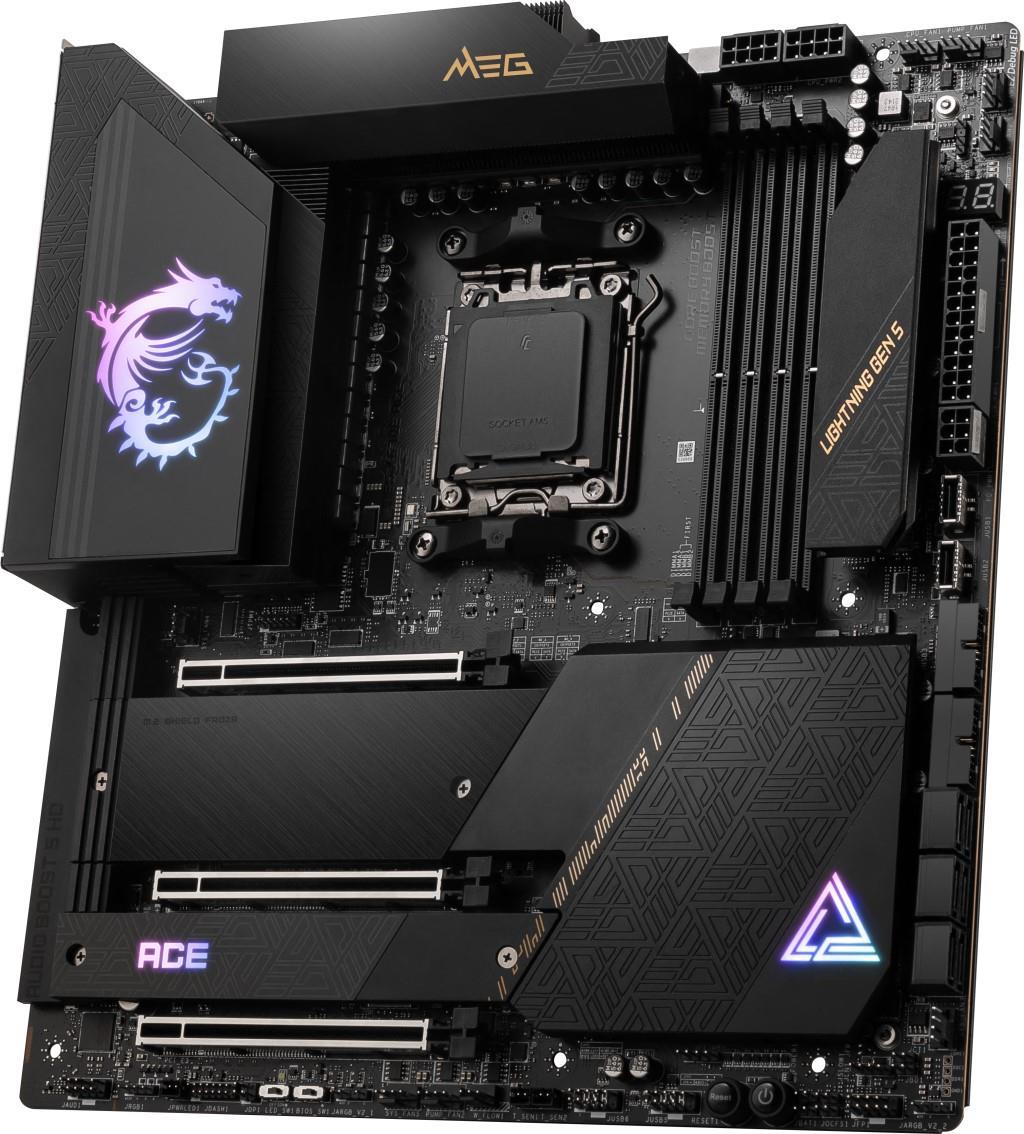

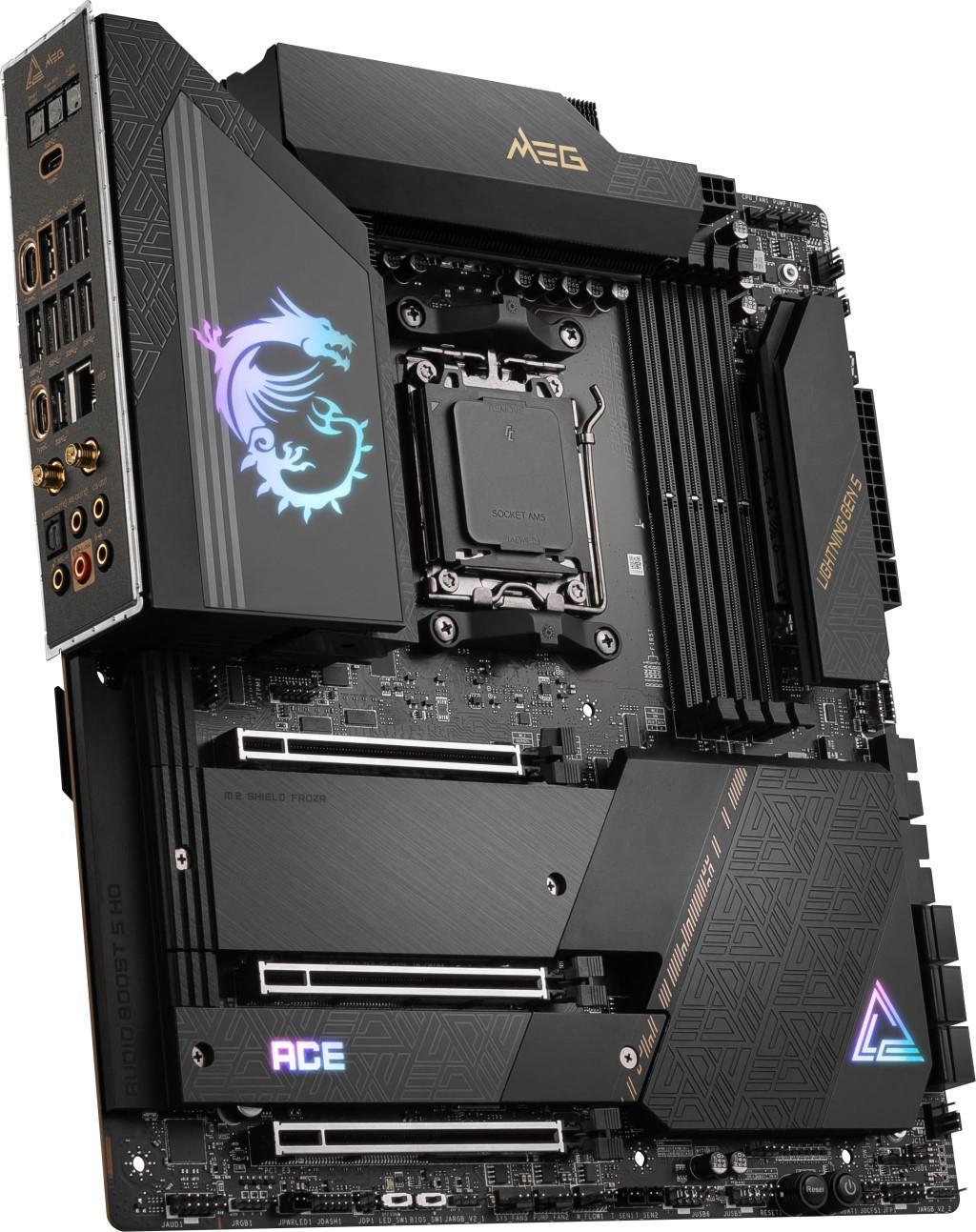

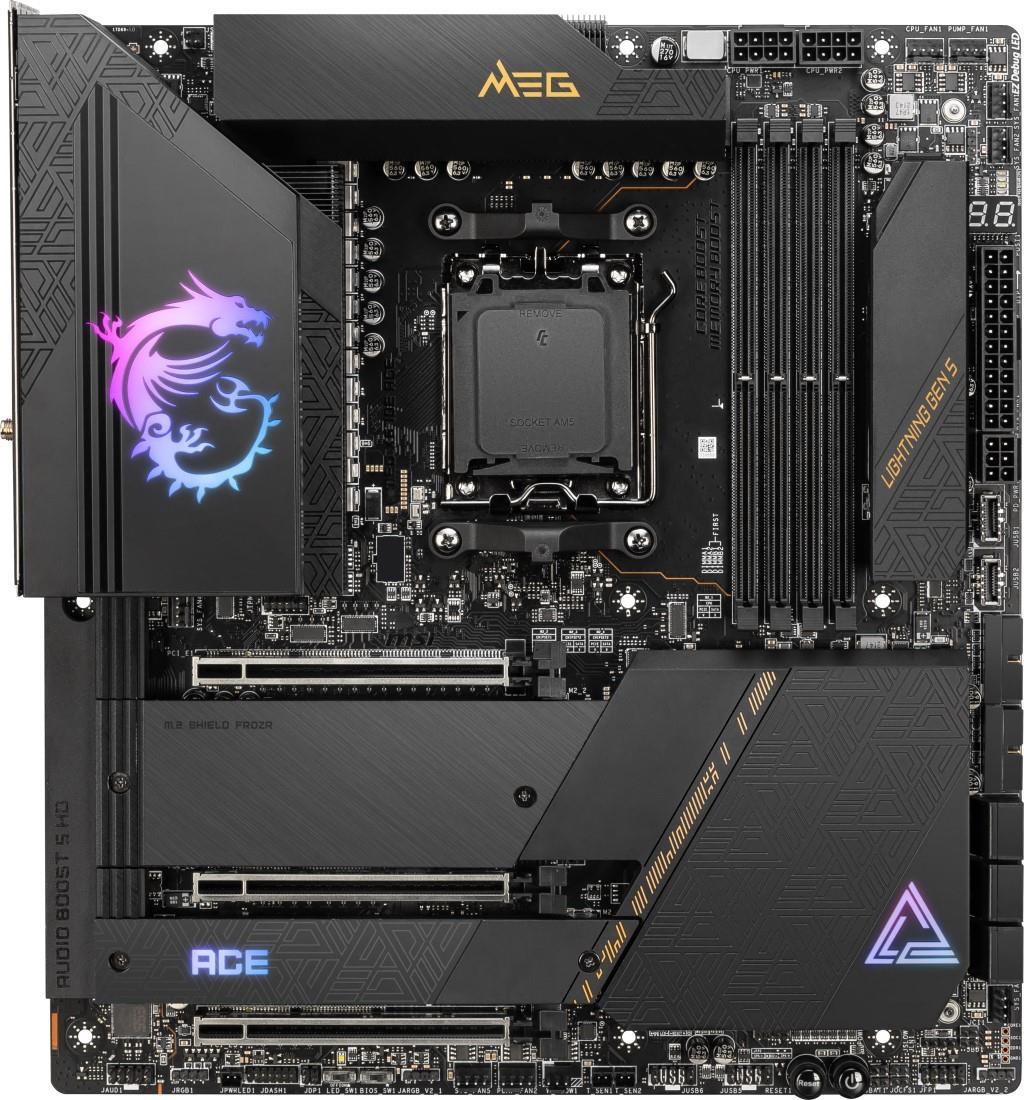

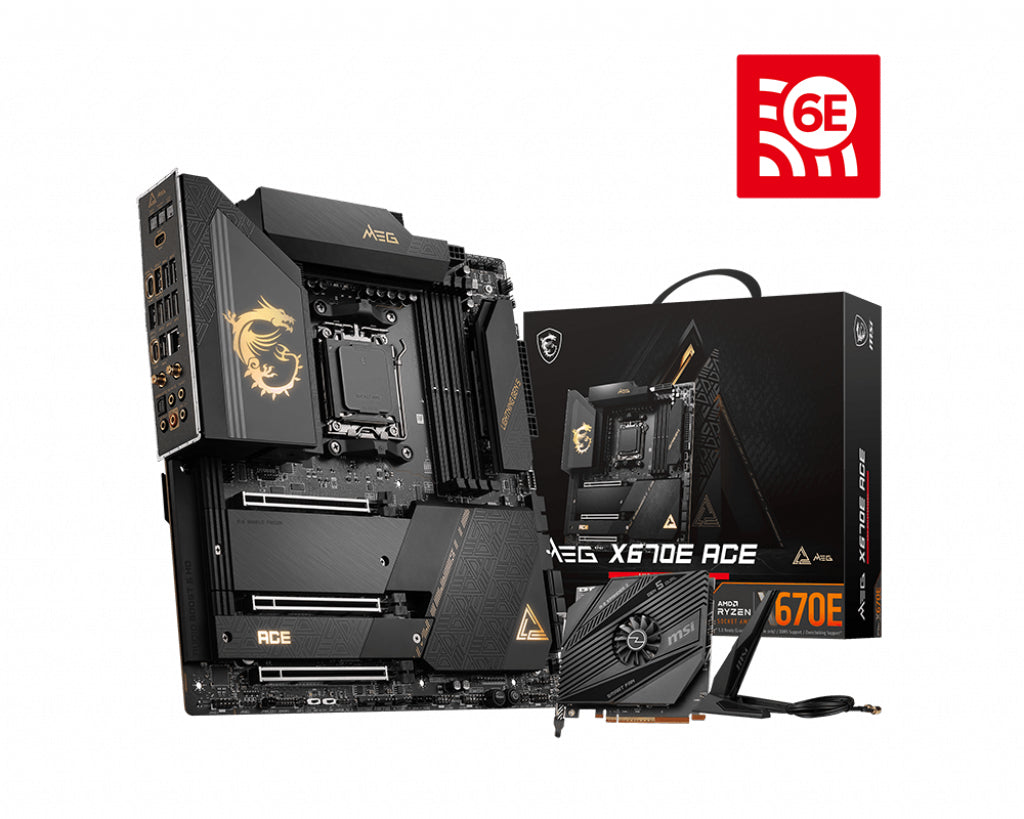

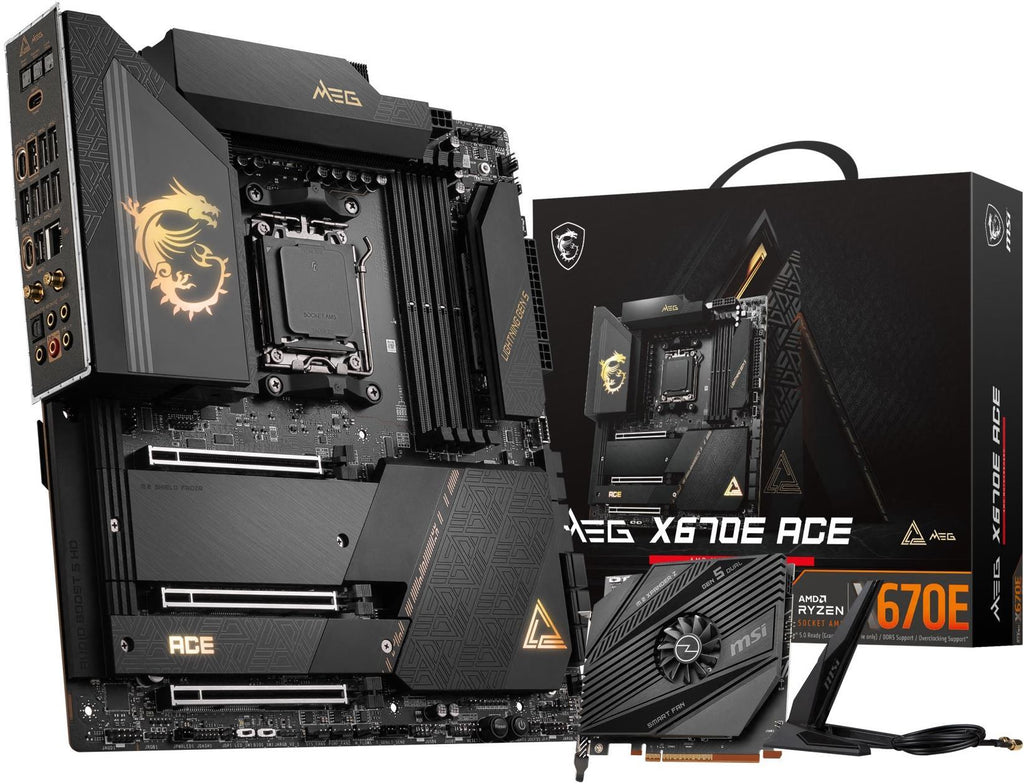

MSI MEG X670E ACE motherboard AMD X670 Socket AM5 Extended ATX
The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD X670 chipset by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking memory, processor, and graphic card at the highest level.
THE REVELATION OF LEGEND The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
DUAL PUMP FAN HEADER FOR OPTIMIZED WATER COOLING Designed to support the most popular All-In-One & customized water cooling solutions on the market, MEG X670E ACE features the exclusive dual pump PIN headers to fit multiple water cooling solutions demands. The dedicated pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy, safe installation and a perfect fit.
22+2+1 DUET RAIL POWER SYSTEM Unleash and sustain the maximum performance with a flagship VRM design built with a total of 22+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and 90A Power Stage, the MEG X670E ACE is ready for breaking the world record.
OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. The dedicated magnetic connectors are placed on PCB and M.2 Shield Frozr. This patented design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance. The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation. Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
LIGHTNING GEN 5 PCI-E Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s. SMT PCIE 5.0 SLOT The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED, HEAVY SOLDERED CONNECTIONS Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
HIGH QUALITY AUDIO CAPACITORS A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured
GLOW YOUR PC Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
