Description

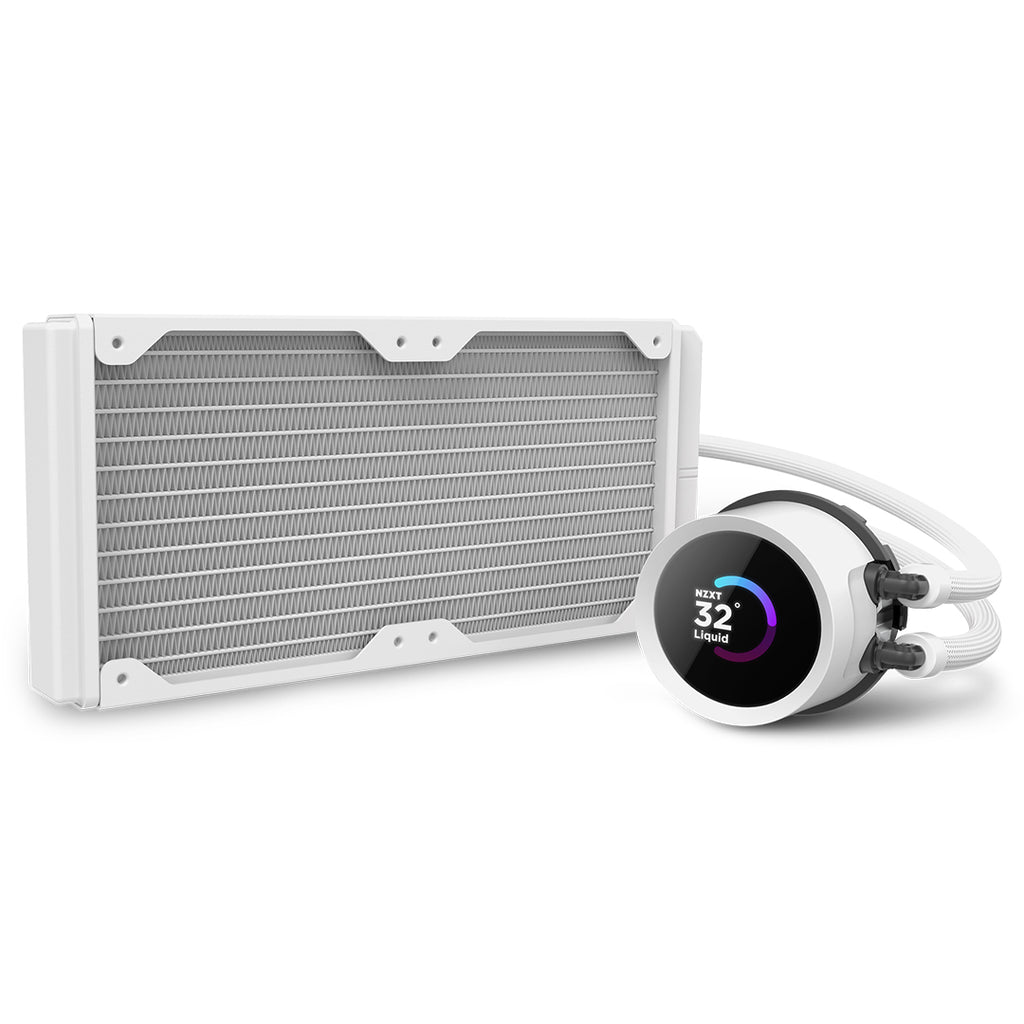

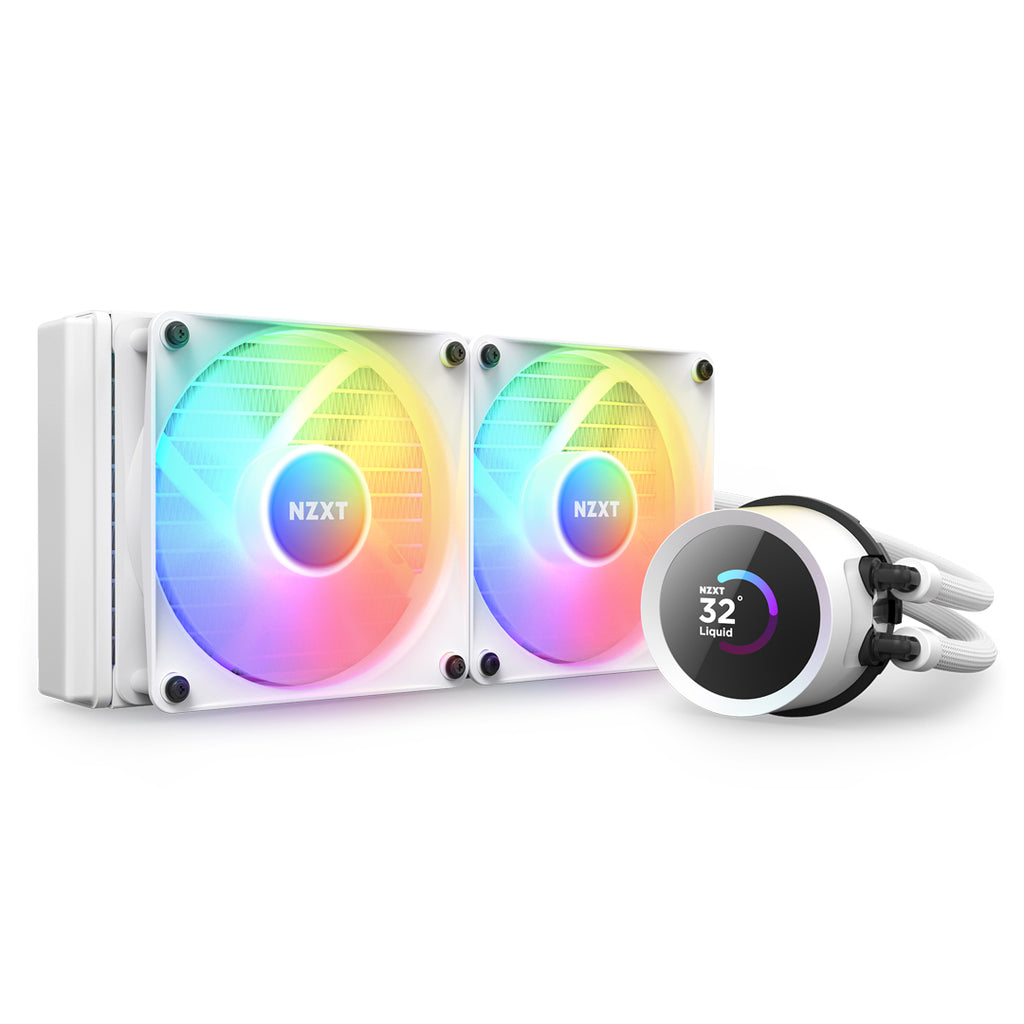

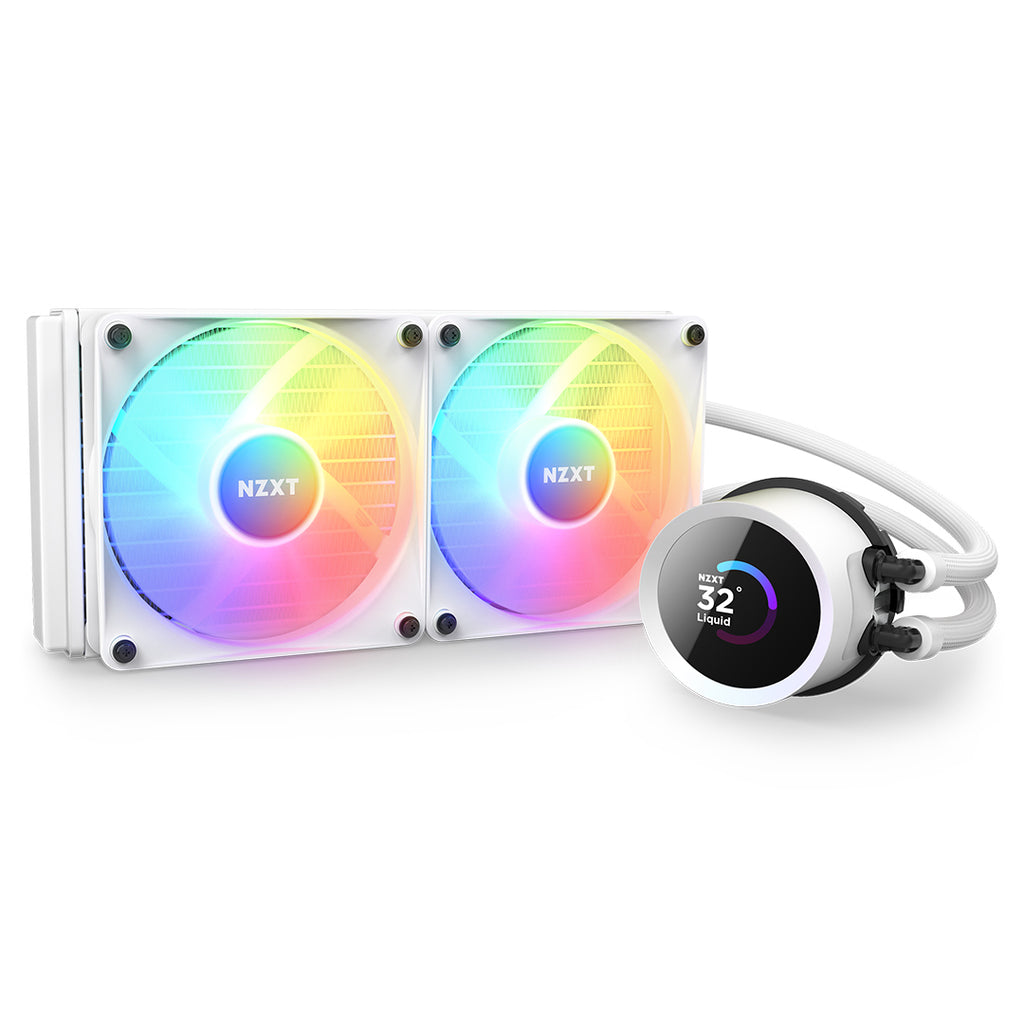

Kraken Elite 240 RGB - 240mm AIO liquid cooler w/ Display, RGB Controller and RGB Fans (White)
The NZXT Kraken Elite 240mm AIO Liquid CPU Cooler White features a chillingly cool performance and an easy install. With its 2.36in diameter LCD screen, users can display real-time specs, or images. Powered by the F Series RGB Core Fans and the 7th Gen Asetek pump, you can ensure your Kraken retains its cool 2800 RPM even under strenuous circumstances. Experience an NZXT CAM-ready, easy-to-install CPU cooling option with extensive personalisation.
Specifications:

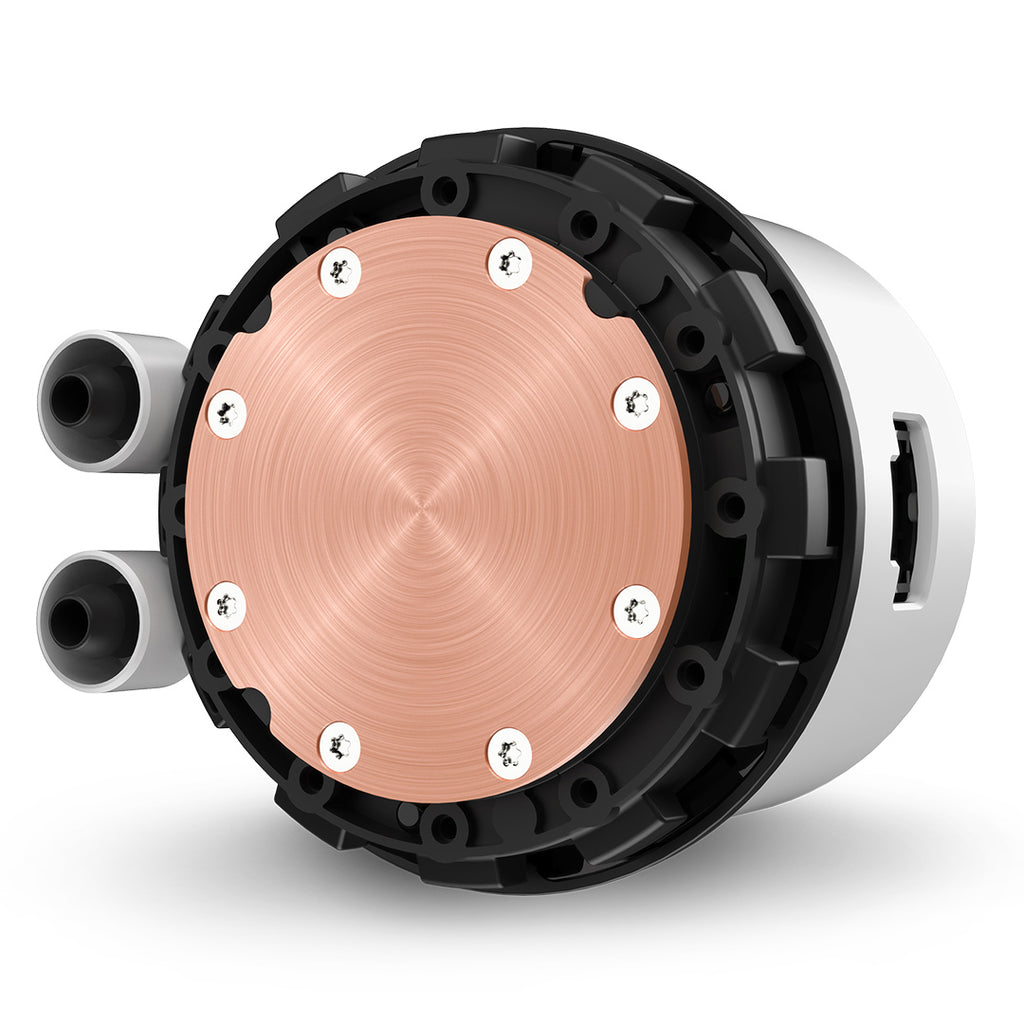

Waterblock
| Dimensions (Diameter x H) | 81.9mm x 59.5mm |
| Material | Block: Copper Housing: Plastic |
| Colour | White |
Pump
| Motor Speed & Power | 800-2800 ± 300 RPM, 12V DC, 0.3A |
Radiator
| Dimensions (L x W x H) | 123 x 275 x 30mm |
| Material | Aluminium |
Tube
| Length | 400mm |
| Material | Ultra-low Evaporation Rubber with Nylon Braided Sleeve |
Cap
| Material | Aluminium and plastic |
| Rotation Orientation | Software adjustable Default, +90, +180 and -90 degrees |

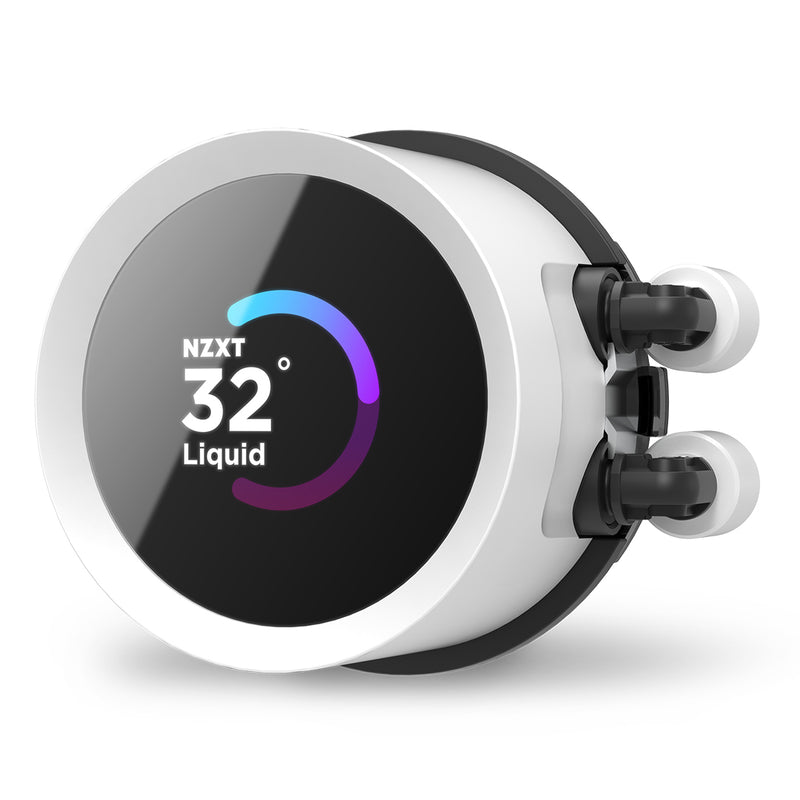

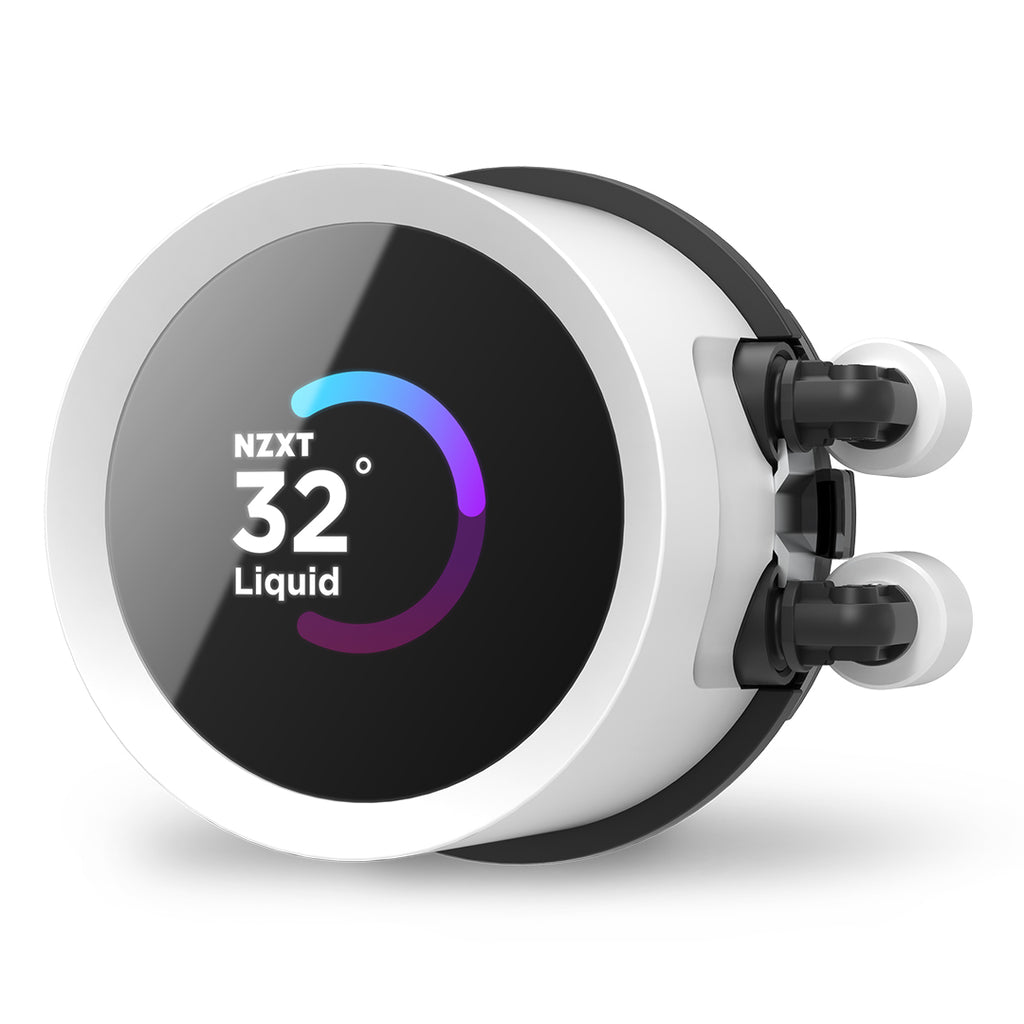

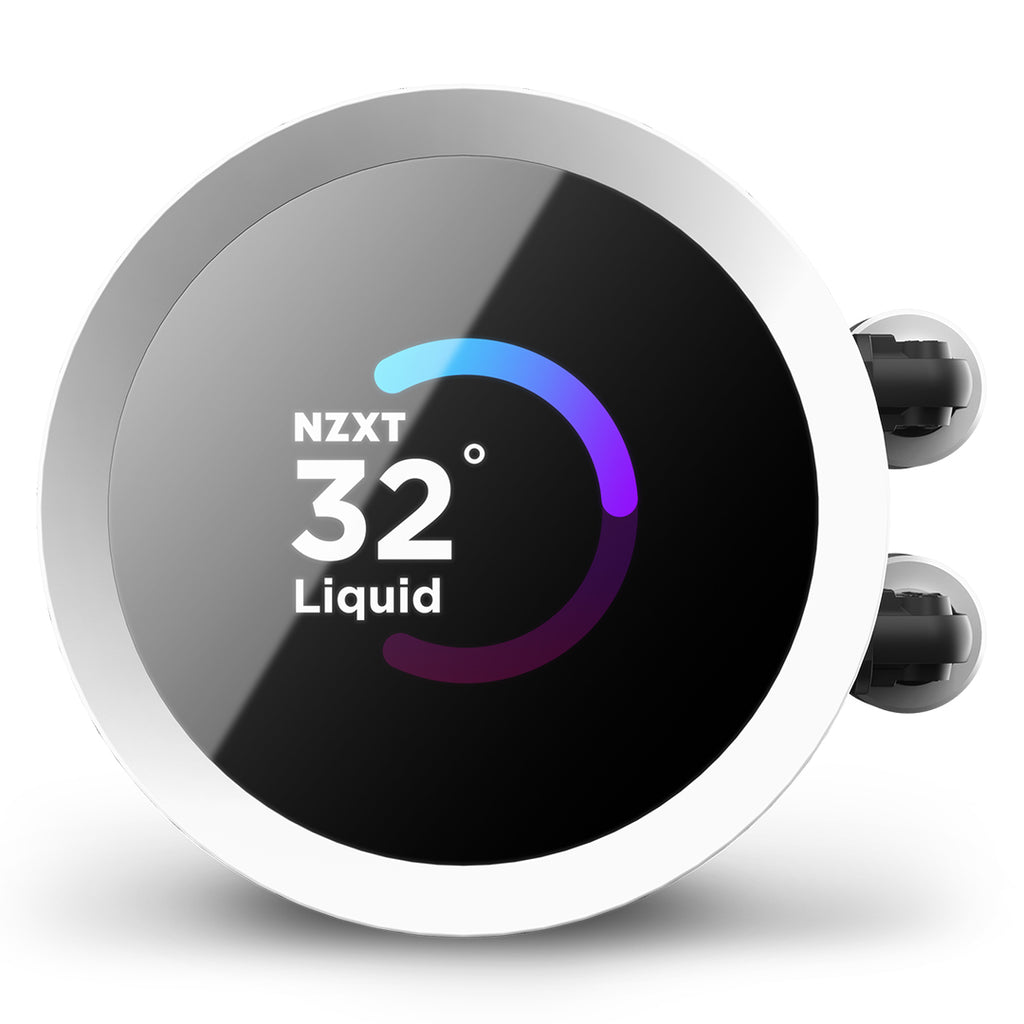

| Display Panel Active Area | 2.36in (60mm) diameter |
| Display Colour | 24-bit true colour LCD |
| Display Resolution | 640 x 640 px |
| DIsplay Brightness | 690 cd/m2 |
| Display Panel Type | TFT-LCD (Wide Viewing Area) |
RGB Controller
| Dimensions (L x W x H) | 63.2 x 53.2 x 12.8mm |
| Weight | 52.8g |
| Mounting | Magnet and 3M Dual Lock |
| Connection Tubes | 1 x USB 2.0 internal connector |
| Input connector | 1 x SATA power cable, 12V DC / 2.6A |
| RGB Lighting Channels | 3 |
| Output Channel Voltage | 5V DC |
| NZXT RGB Channel Output LED Qty. | Up to 40 LEDs per channel and up to 120 LED2 combined total for the total 3 channels |
Fans
| Model | F120RGB Core Fans |
| Quantity | 2 |
| Dimension | 120 x 120 x 26mm |
| Speed | 500 - 1, 800 ± 180 RPM |
| Air Flow | 78.86 CFM |
| Air Pressure | 2.57mm H2O |
| Noise | 33.88dBA |
| Bearing | Fluid Dynamic Bearing |
| Power Consumption | 12V DC, 0.2A, 2.4W |
| Connector | 4-pin PWM |
| Life | 60,000 hours / 6 years |
| Compatibility | Intel Socket LGA 1700, 1200 / 115XM Intel Core i9 / Core 17 / Core i5 / Pentium / Celeron AMD Socket AM5, AM4, sTRX4, TR4 (Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper |
Key Features:
Overview
The Kraken Elite delivers chillingly cool performance with a display that makes custom content truly pop. The 640 x 640 resolution wide-angle LCD display creates a picture that's detailed and vivid regardless of your viewing angle.
Increased Customisation
A more powerful micro-controller allows for more immersive customisation such as audio visualisers and the ability to relay CAM information with particle density animations.
Twice as Bright
A bright 2.36in wide angle LCD screen supports custom images along with animated GIFs and features a crystal clear 640 x 640 display resolution, double that of the previous generation.
Stay Cool
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken Elite cools optimally with 2800 RPM operation.
Simple Install
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.
NZXT CAM-Ready
Personalize screen content with custom images or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise
