Description
H Series H5 Elite Edition ATX Mid Tower Chassis All White color

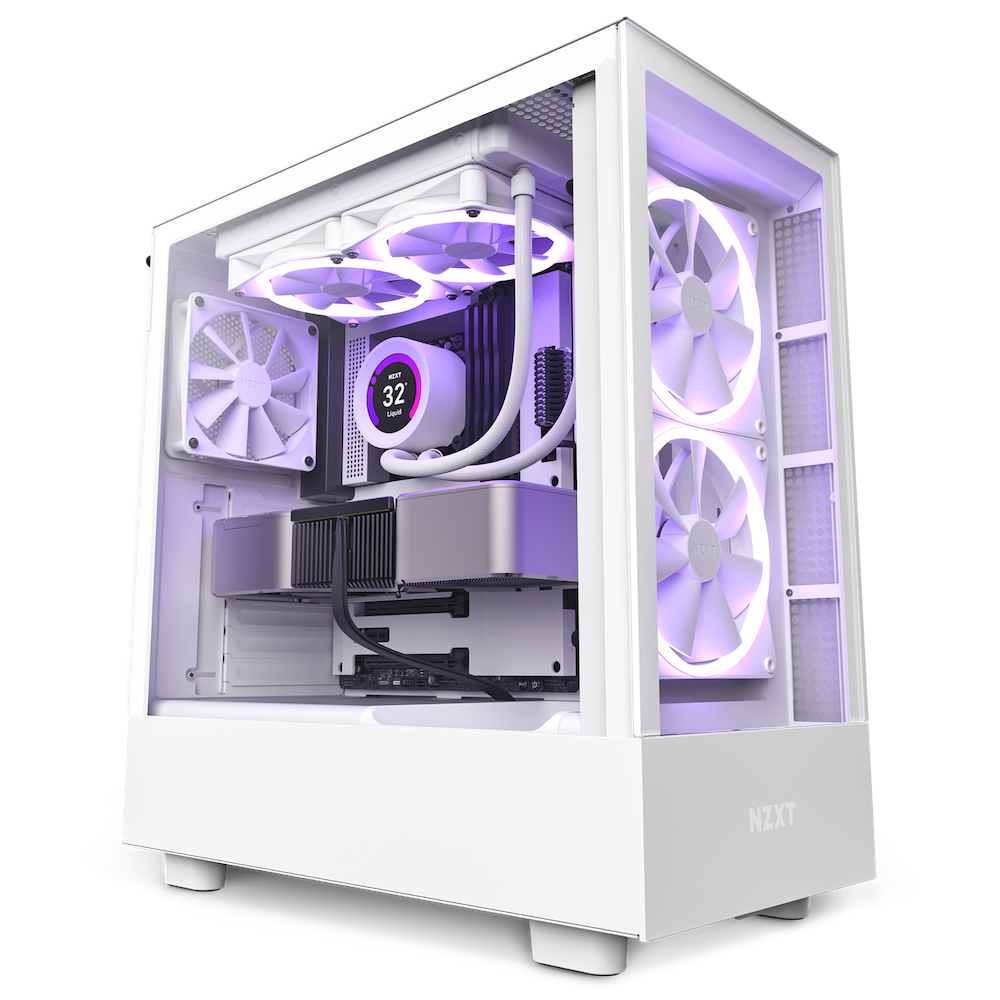

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.

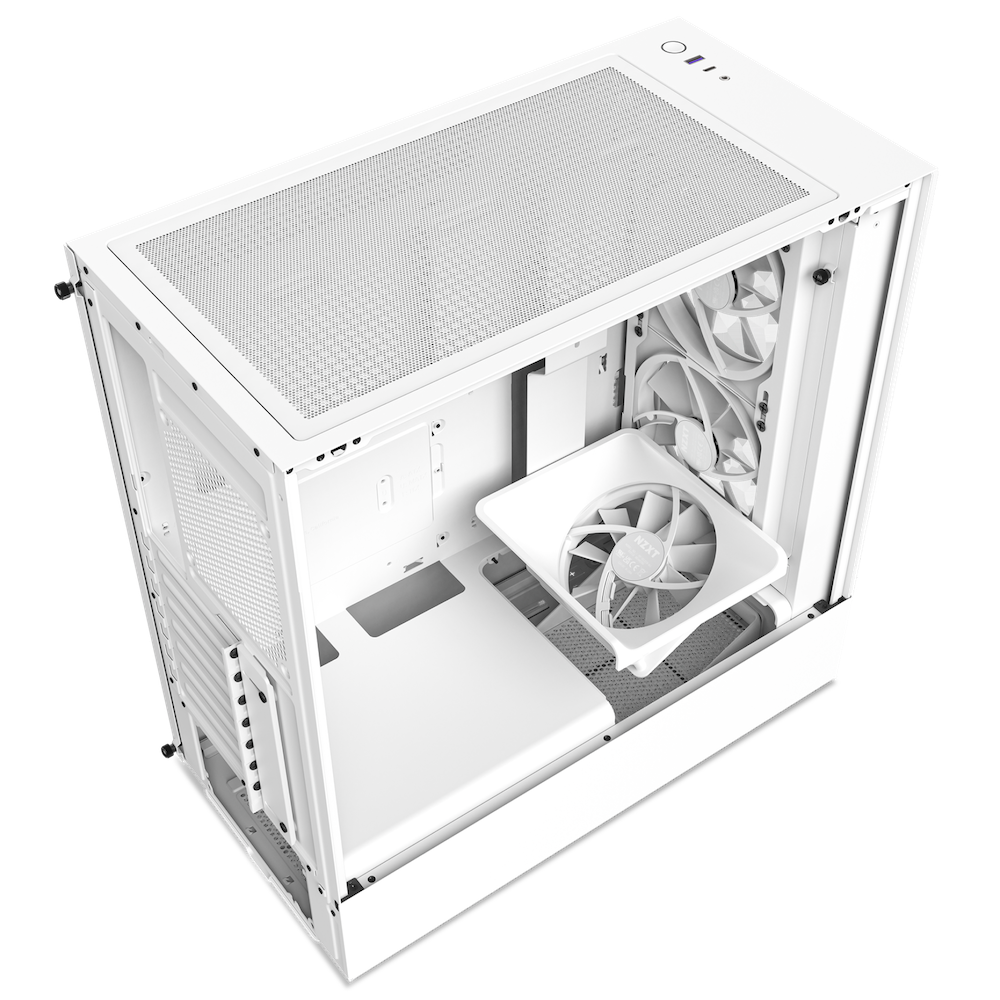

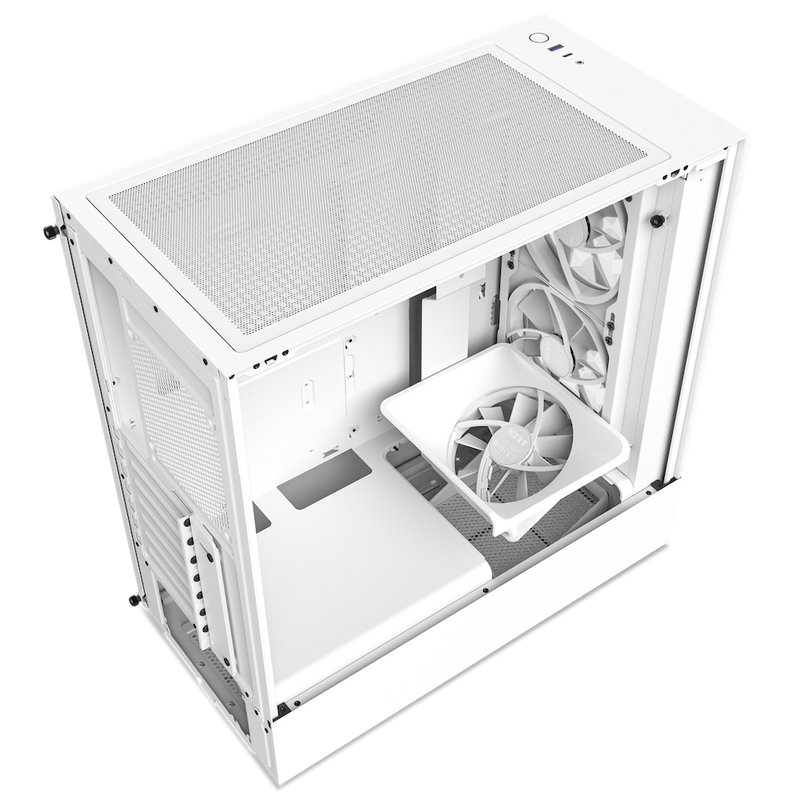

- Pre-installed fan on bottom inside panel is angled to cool GPU
- Tempered glass front panel and built-in RGB controller
- Perforated top panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels
- Front panel supports 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F140 RGB fans & one F120Q fan
Specifications:
KEY SPECS
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
DIMENSIONS
-
Height:464 mm (With Feet)
-
Width:227 mm
-
Depth:446 mm
-
Weight:8.1 kg
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:Up to 165mm
-
Max GPU Clearance:Up to 365mm
-
Front Radiator Clearance:45mm
-
Cable Management:Up to 23mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:1
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
INCLUDED ACCESSORIES
-
Installation screws:1
-
Cable ties:10
-
RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)
EXPANSION SLOTS
-
Standard:7
DRIVE BAYS
-
2.5":1+1
-
3.5":1
FAN SUPPORT
-
Front:2 x F Series RGB 140mm (Case Version) included
-
Top:2 x 120mm
-
Rear:1 x 120mm
-
Bottom:1 x F Series Quiet 120mm (Case Version) included
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Front:Up to 280mm
-
Top:Up to 240mm
-
Rear:Up to 120mm
FAN SPECS
-
Model:F140 RGB Fan
-
Speed:500 - 1800 RPM
-
Airflow:24.85 - 89.48 CFM
-
Static Pressure:0.94 - 3.39 mm-H2O
-
Noise:20 - 32.5 dBA
-
Fan Connector:4-pin
FAN SPECS
-
Model:F120Q Airflow Fan (Case Version)
-
Speed:1200 ± 240 RPM
-
Airflow:62.18 CFM
-
Static Pressure:1.05 mm-H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
Key Features:
Fan Capacity
- Top: 2x 120mm
- Front: 2x 140mm / 2x 120mm
- Rear: 1x 120mm
- Bottom: 1x 120mm
