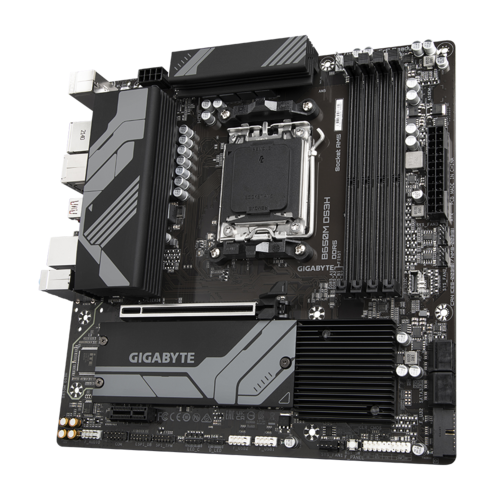

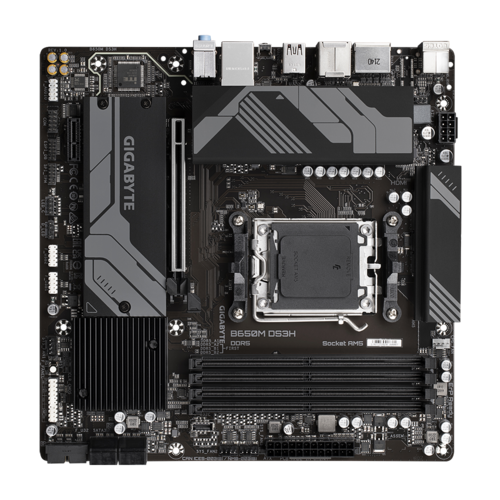

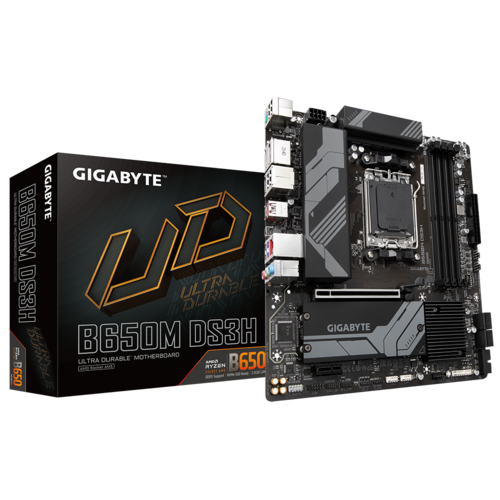

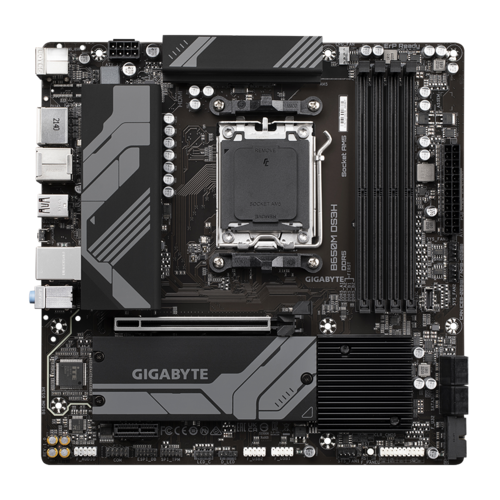

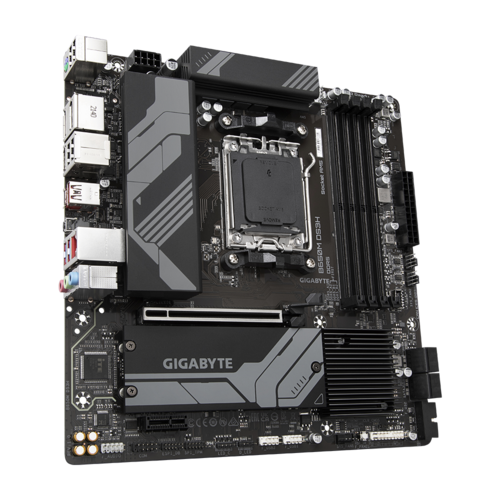

Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Roll over image to zoom in Click on image to zoom
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0
Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0

Gigabyte B650MDS3H 1.0 AMD AM5 ATX Motherboard 4x DDR5~128GB,2x PCIe x16, 2x M.2, 4x SATA 6, 3x USB 3.2, 1x USB-C, 4x USB 2.0

SKU: GA-B650M-DS3H
Model Number: GA-B650M-DS3H
Price:
$282
Stock:
In Stock at Supplier

Rockingham

Pickup currently unavailable

3/31 Council Ave
Rockingham WA 6168
Australia

Delivery Only

Description

  • AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • PCIe x16 EZ-Latch with Quick Release & Screwless Design
  • Fast Networks：2.5GbE LAN
  • Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
  1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)

Chipset
  1. AMD B650
Memory
  1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
  2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor:
  1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
CPU:
  1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
  1. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
CPU + USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports on the back panel
Chipset:
  1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  12. 1 x USB 3.2 Gen 1 header
  13. 2 x USB 2.0/1.1 headers
  14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  15. 1 x serial port header
  16. 1 x reset button
  17. 1 x reset jumper
  18. 1 x Clear CMOS jumper
Back Panel Connectors
  1. 4 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 2 x DisplayPorts
  4. 1 x HDMI port
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  7. 1 x Q-Flash Plus button
  8. 1 x RJ-45 port
  9. 2 x USB 3.2 Gen 1 ports
  10. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
