Description

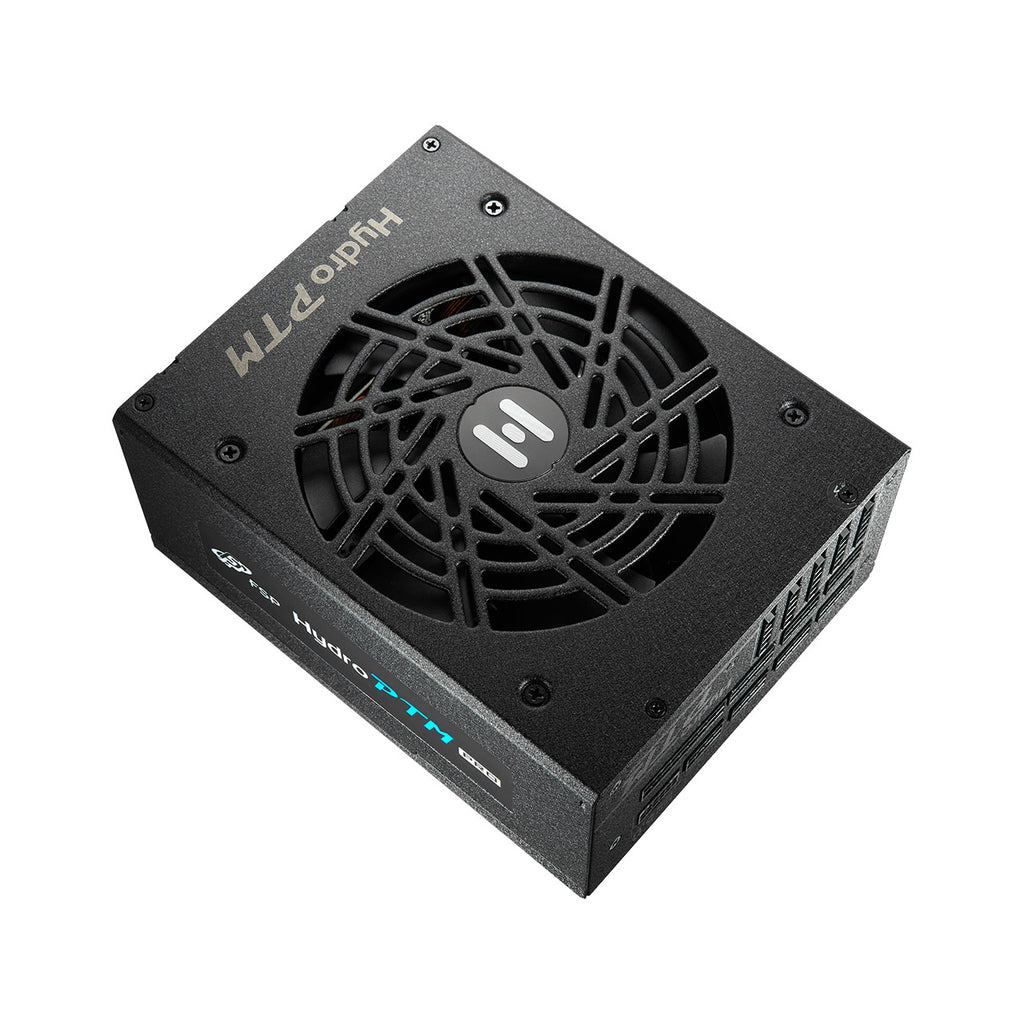

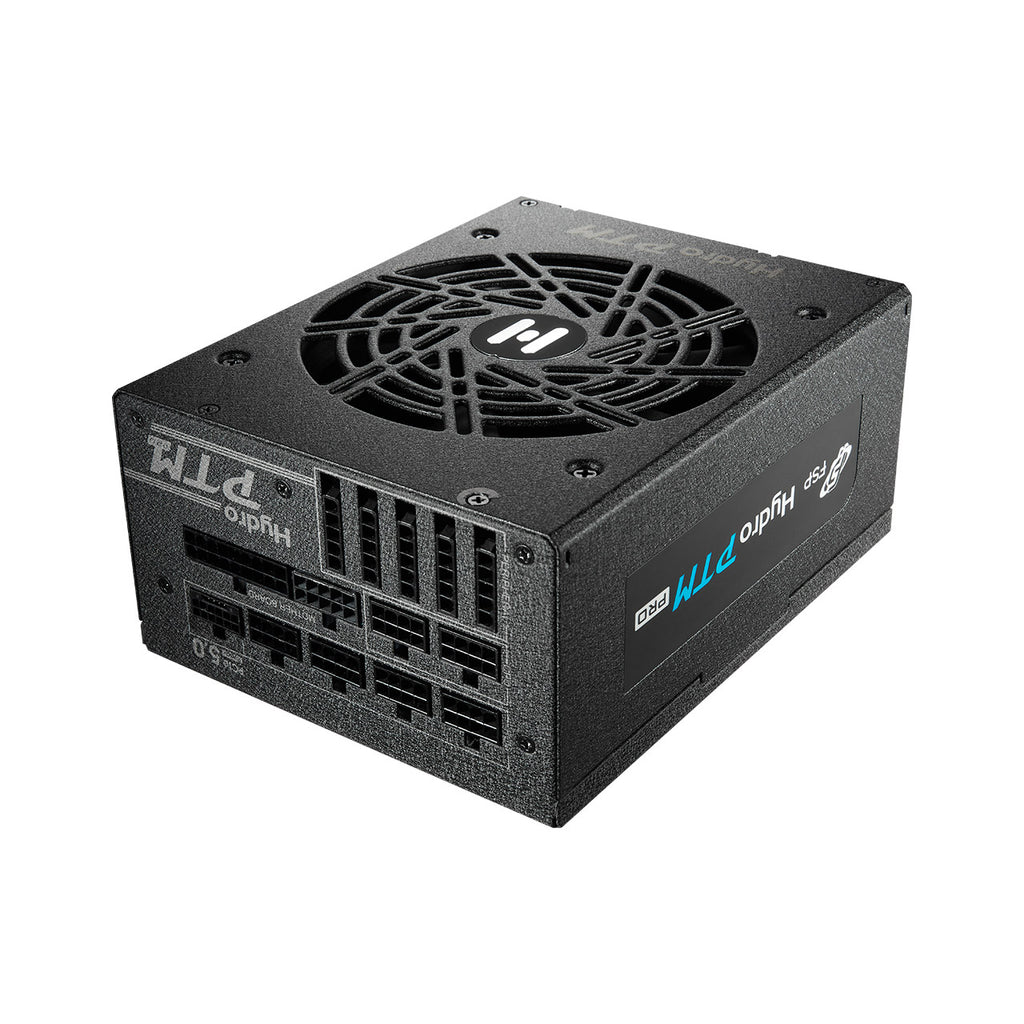

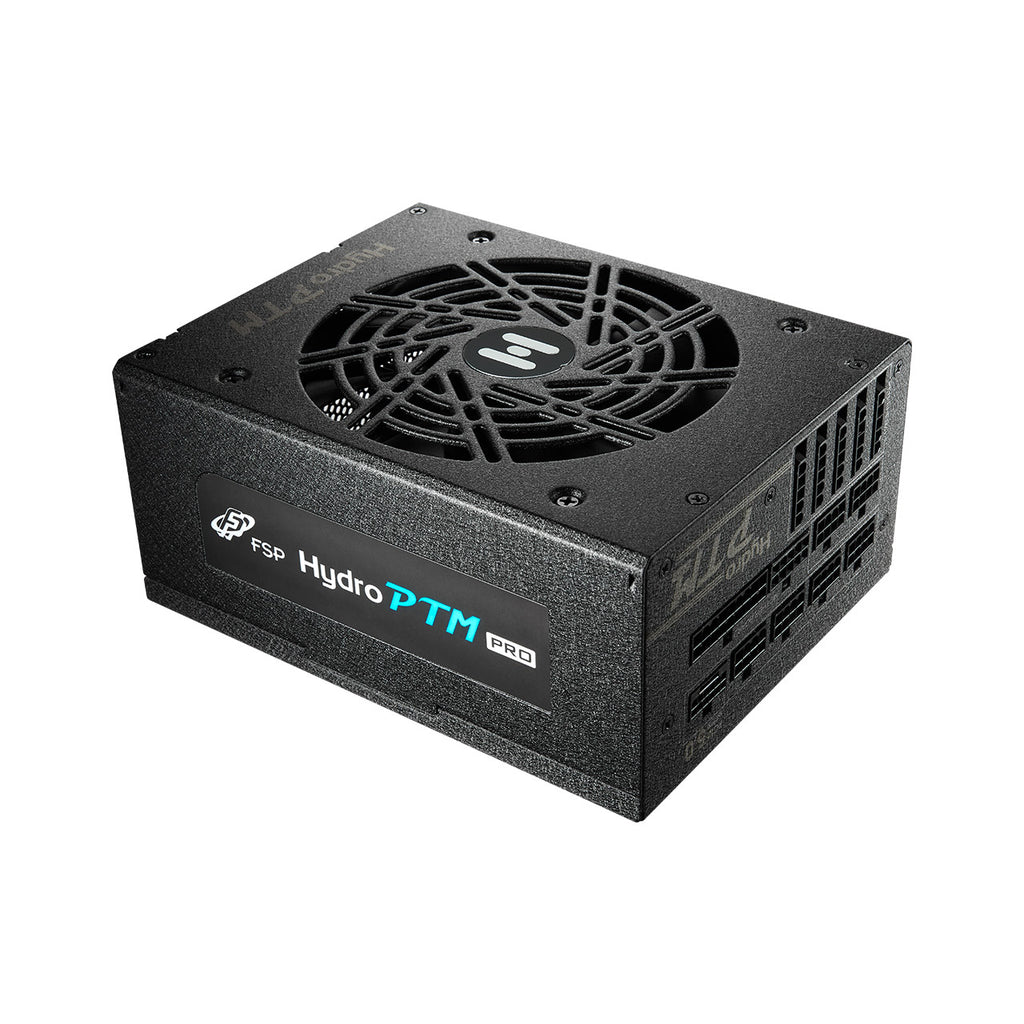

FSP HPT2-850M,Gen 5 Hydro PTM PRO ATX3.0(PCIe5.0) 850W 80 Plus Platinum Fully Modular PSU
- Complies with ATX12V V3.0 & EPS12V V2.92
- Intel Latest CPU ready
- Global Safety Approved
- High efficiency ≧ 92%
- Powerful +12V single rail design
- Quiet and durable cooling
- Japanese electrolytic capacitors
- Intelligent fan speed control circuit design
- Full protections OCP,OVP, SCP,OPP,OTP, UVP
- High Wattages with 80PLUS® Platinum Certification
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
Specifications:
| Model | HPT2-850M,Gen5 |
|---|---|
| Rated Output Power | 850W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| Input Voltage | 100-240V |
| Input Current | 11-5.5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥92% at typical load |
| Fan Type | FDB Fan, 135mm |
| Dimensions(L x W x H) | 150 x 190 x 86 mm |
| Protection | OCP, OVP, SCP, OPP, OTP, UVP |
Key Features:
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
High Compatibility for High Power

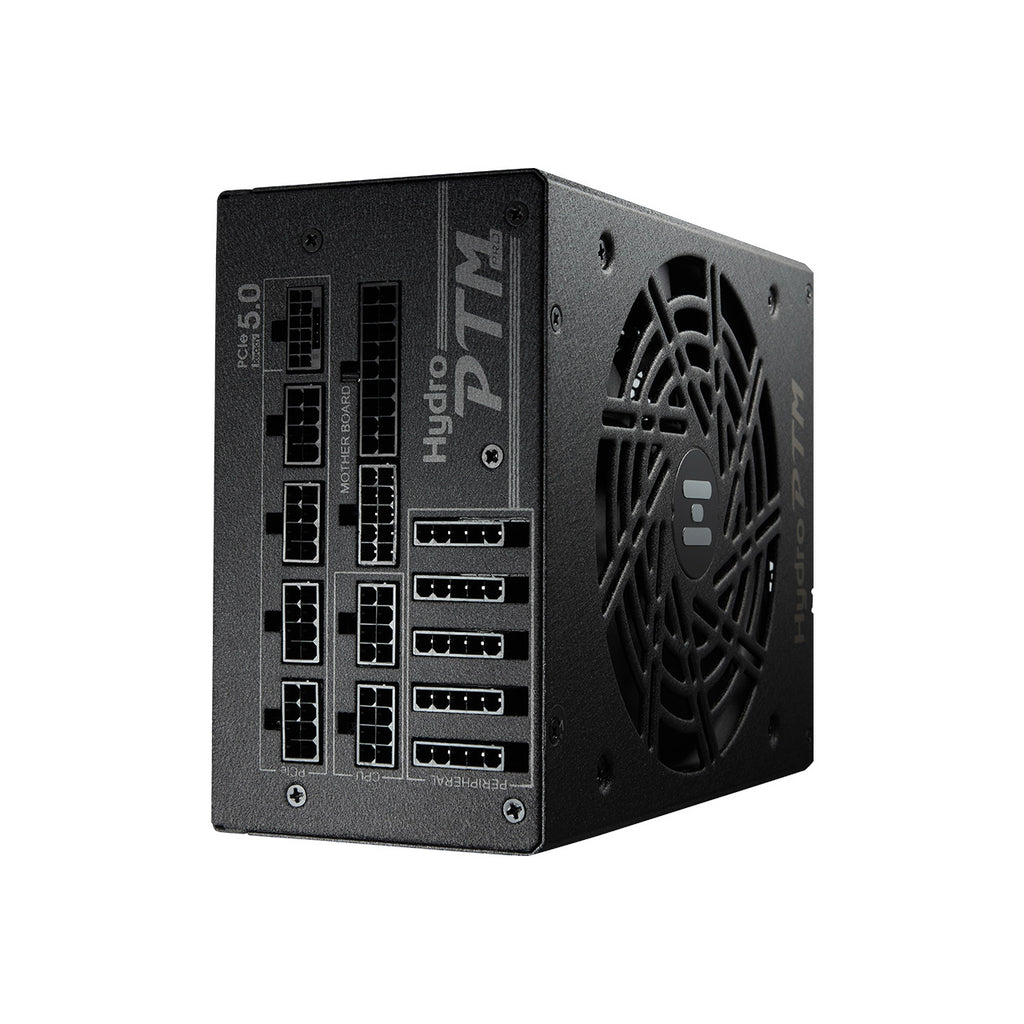

The series comes with native PCIe5.0 connector and also supports 4 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
Conformal Coating Application
Off-Wet, Off-Dust and Off-Stain
The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.
LLC Full-Bridg Topology with DC-DC Module Design
HYDRO PTM Pro series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.

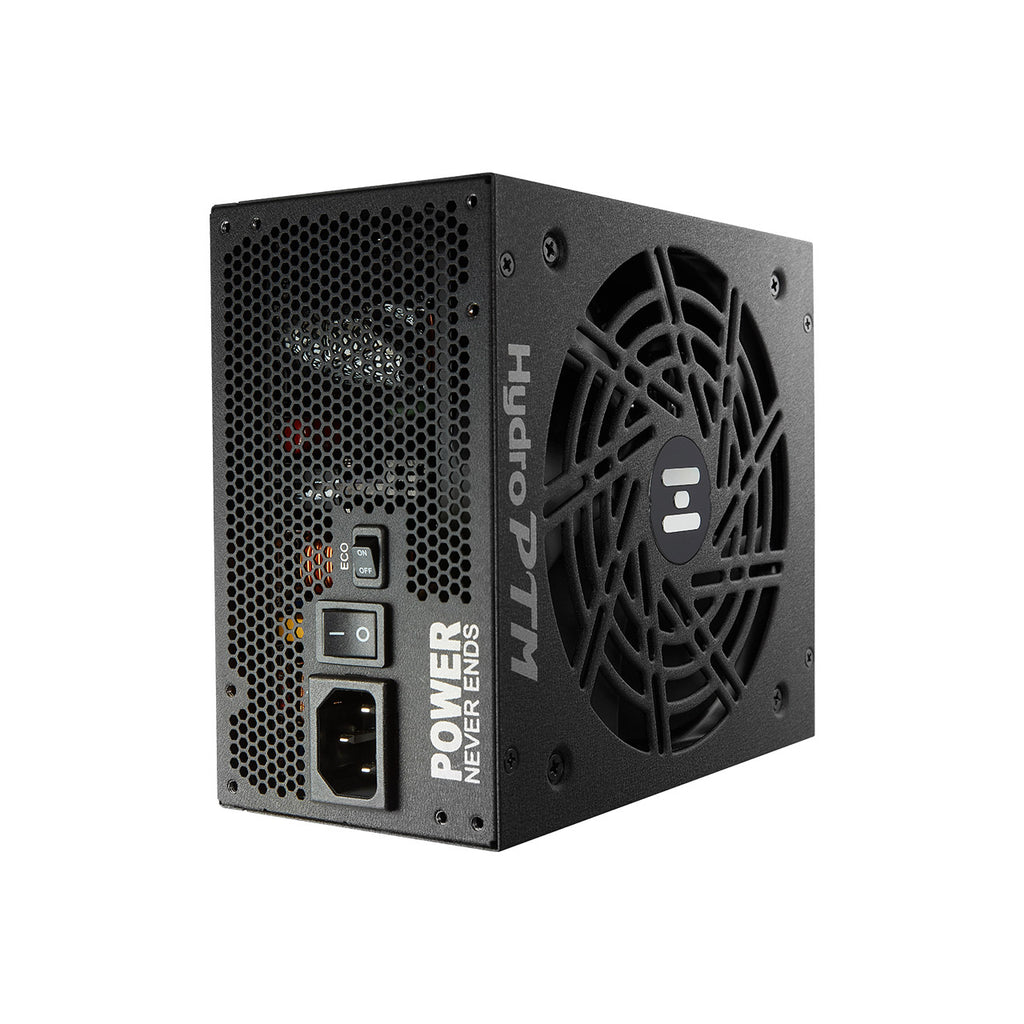

ECO Switch, Quieter and Longer Lasting Fan
When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
HYDRO PTM Pro series comes with FDB fan and intelligent 0dBA function to reduce noise, and features a longer-lasting life.
80 Plus® Platinum Certification
Hydro PTM Pro series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
10-Year Warranty
FSP is committed to manufacturing high-quality and reliable power supplies. The Hydro PTM series are backed by our 10-year warranty.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
