Description

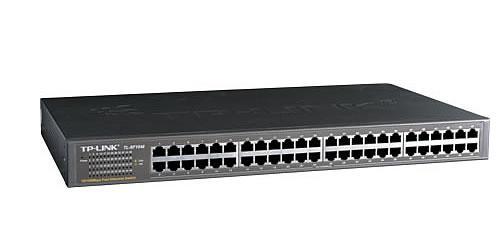

The TL-SF1048 Ethernet Switch is engineered to meet the needs of modern networking environments, complying with IEEE 802.3 and IEEE 802.3u standards. Its robust design allows every RJ45 port to function as either an uplink or common port, making it a cost-effective choice for expanding your network without disruption.
Key Features:
- 48 10/100Mbps Auto-Negotiation RJ45 Ports: Each port supports Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying network setup.
- High Performance: Experience smooth data transfers with up to 200Mbps in full duplex mode, ideal for improving workgroup efficiency and network bandwidth.
- Efficient Flow Control: Supports IEEE 802.3x flow control for full duplex and backpressure for half-duplex, ensuring data integrity and minimal packet loss.
- Smart MAC Address Management: Automatically learns and updates MAC addresses, optimizing network performance and simplifying management.
- User-Friendly LED Indicators: Easily monitor power, link status, and connection speed with clear LED indicators.
- Standard 19-Inch Rack-Mountable Design: Built with a sturdy steel case that fits seamlessly into standard racks, maximizing your available space.
- Internal Universal Power Supply: Compatible with a wide range of voltage inputs (100-240V~ 50-60Hz) for reliable power delivery.
Specifications:
- Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- Topology: Star
- Protocol: CSMA/CD
-
Data Transfer Rates:
- Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
- Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
-
Network Media (Cable):
- 10Base-T: UTP category 3, 4, 5 cable (max 100m)
- 100Base-TX: UTP category 5, 5e cable (max 100m)
-
Frame Filtering and Forward Rate:
- 10Mbps: 14,880pps
- 100Mbps: 148,800pps
- Dimensions: 17.3 x 10.2 x 1.7 in (440 x 260 x 44 mm)
-
Operating Conditions:
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (non-condensing)
- Safety & Emission: FCC, CE
