TP-LINK MC200CM network media converter 1000 Mbit/s Multi-mode

Tp-Link
SKU: NWTPMC200CM
Model Number: NWTPMC200CM

Price:
Sale price$59.00
Stock:
Sold out

Payment & Security

American Express Apple Pay Generic Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

TP-LINK MC200CM. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 100Base-TX, Networking standards: IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 100 m, Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 50/125 µm. LED indicators: Link,Power, Safety: FCC, CE. Dimensions (WxDxH): 94.5 x 73 x 27 mm, Operating temperature (T-T): 32 - 104 °F

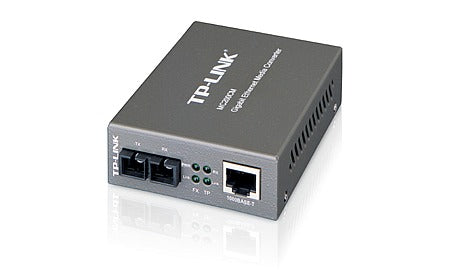

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
