Description

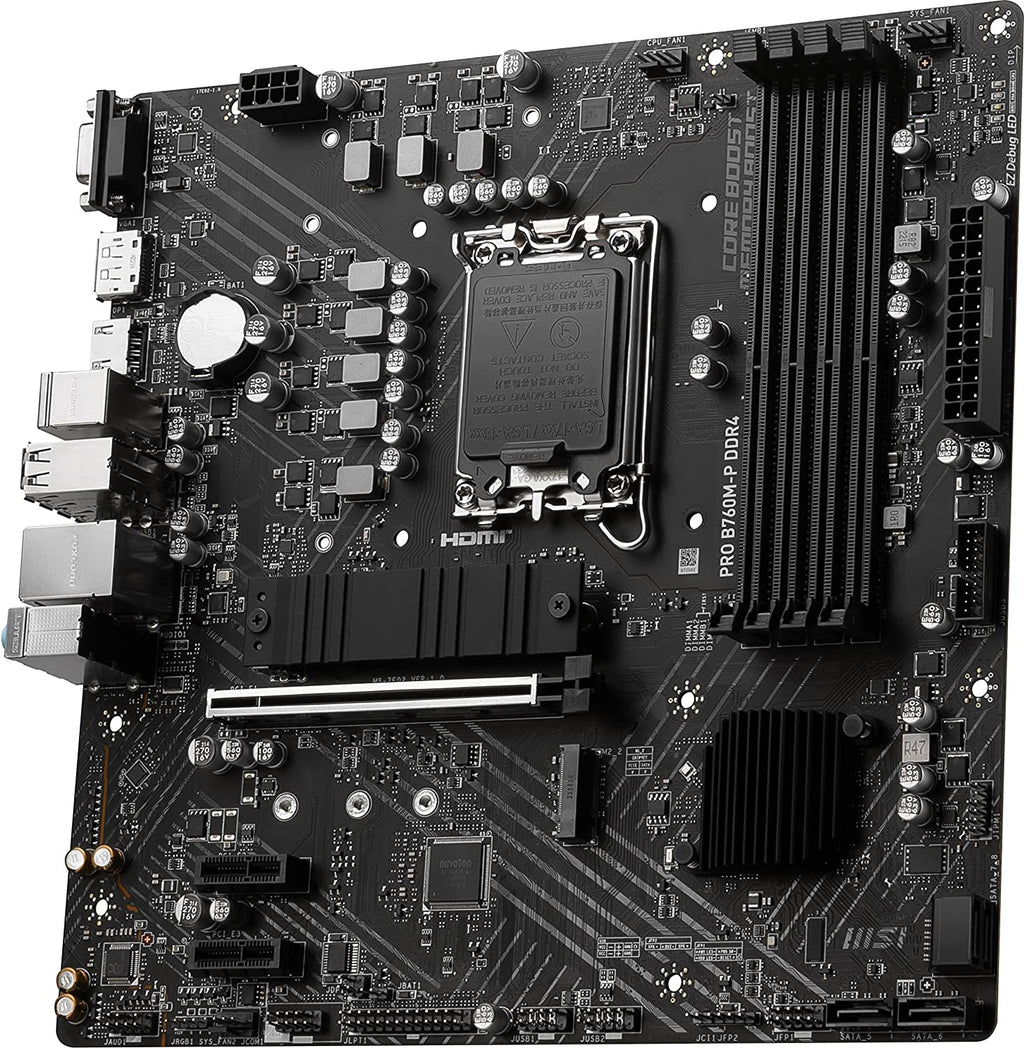

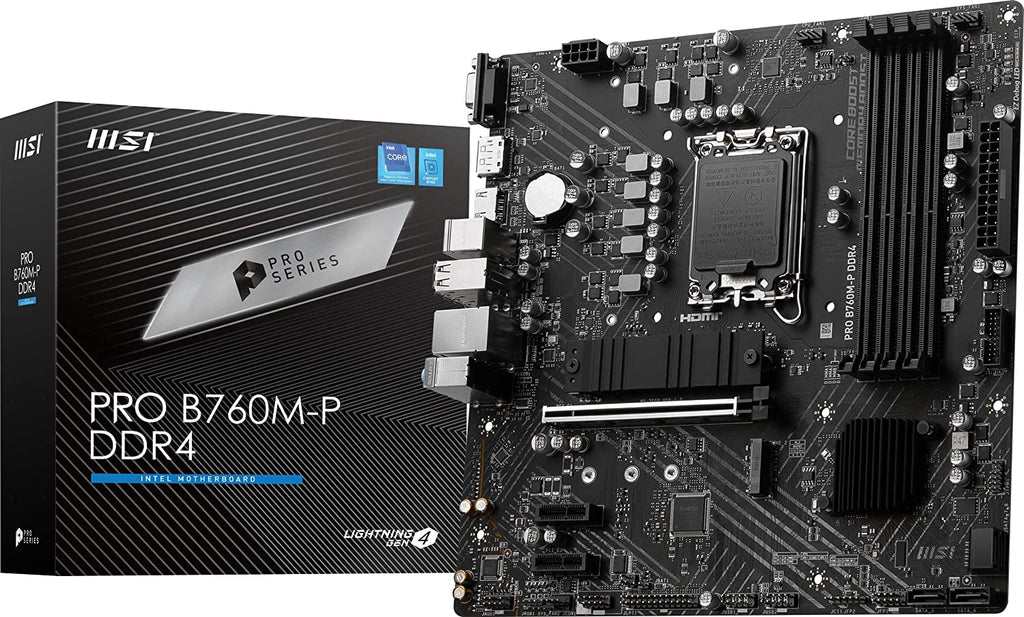

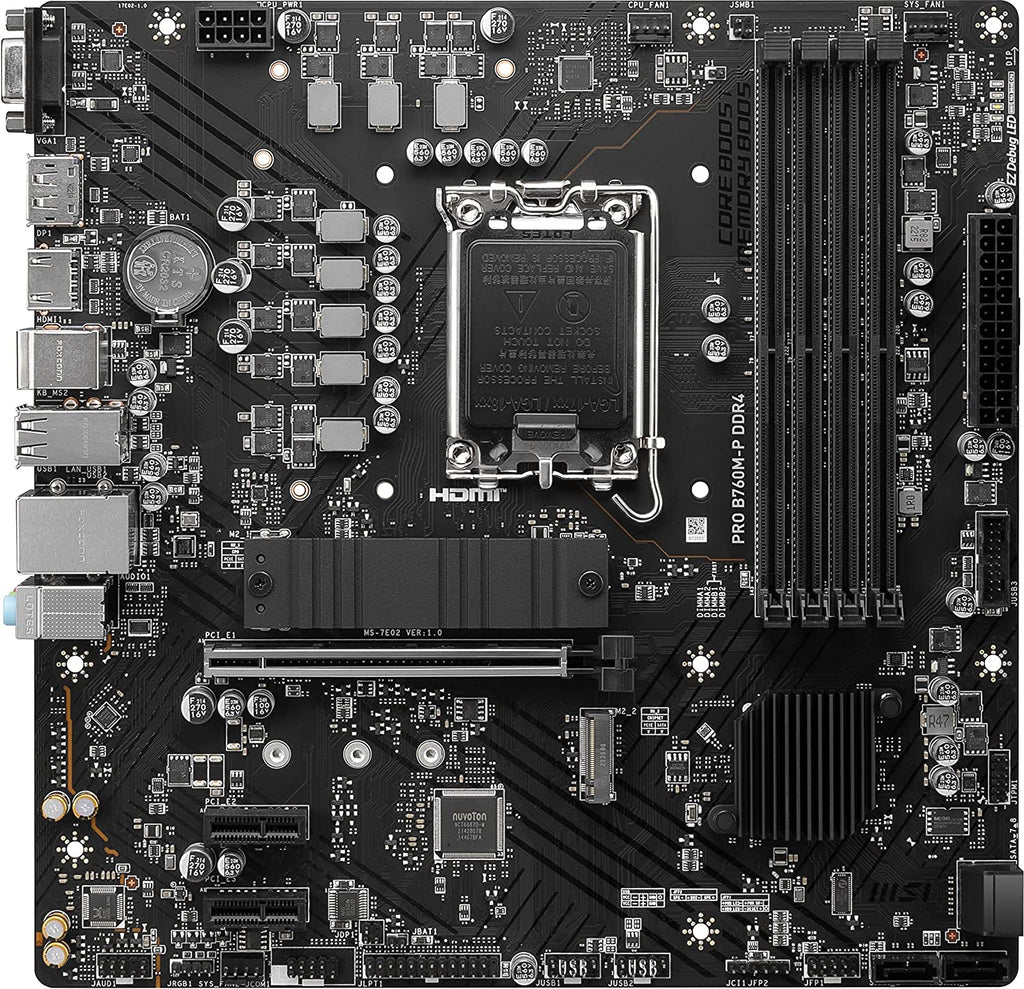

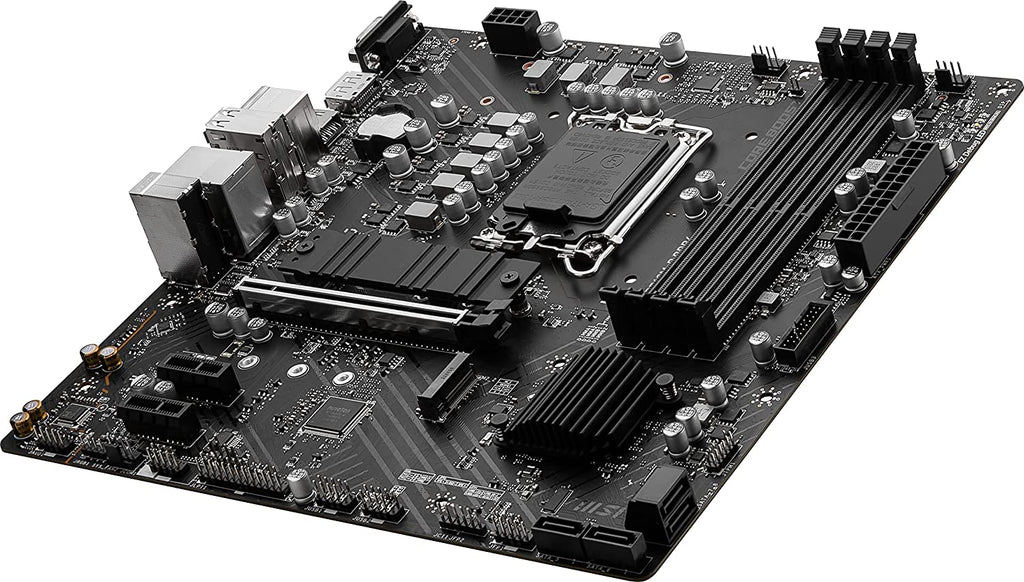

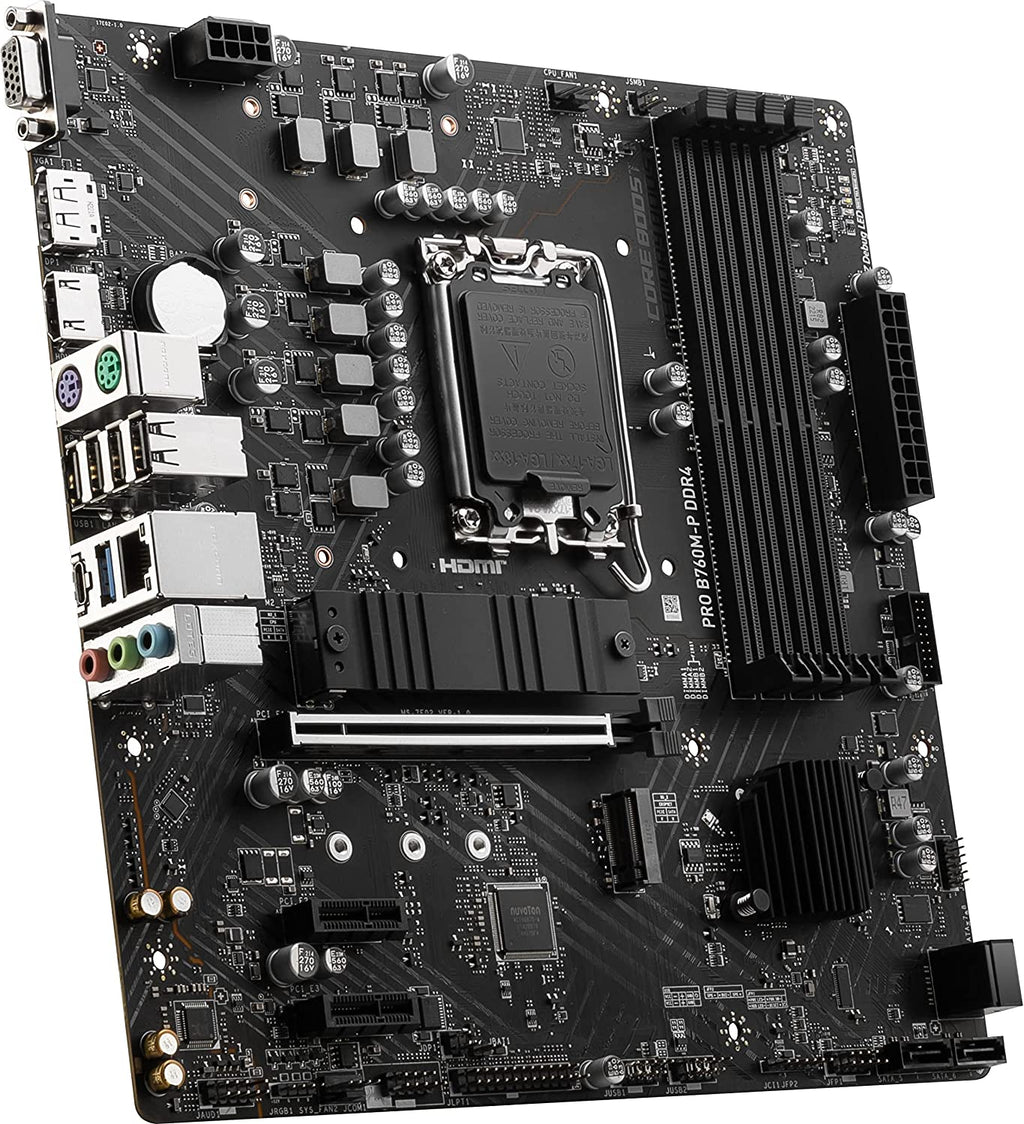

MSI PRO B760M-P DDR4 Intel B760 LGA 1700 Micro ATX Motherboard
Specifications:
| Brand | MSI |
| CPU Socket | LGA 1700 |
| Compatible Devices | 12th Gen Intel Core, Celeron processors |
| RAM Memory Technology | DDR4 |
| Compatible Processors | Intel Celeron, Intel Pentium Gold |
| Chipset Type | Intel B760 |
| Memory Speed | 4800 MHz |
| CPU Model | Pentium |
| Memory Storage Capacity | 64 GB |
| Memory Slots Available | 4 |
Key Features:
- Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr.
Supports Intel Core 12th & 13th Gen Processors
The PRO B760M-P DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
- Form Factor: Micro-ATX
- Socket Type: LGA 1700
- Chipset: Intel B760
Integrated Cooling Features
- Chipset Heatsink: Provides passive cooling
- SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
- Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
4 x DDR4 Dual Channel (4800 MHz OC)*
- Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
- XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
- 1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
- 2 x PCIe 4.0/3.0 x1 slots
*Supports x16/x4
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Gen4 M.2 Connectors
The PRO B760M-P DDR4 motherboard features MSI's Gen4 M.2 slots:
- 2 x Gen4 x4 64Gbps slots
Connectivity
- 1G LAN: A 1Gbps LAN controller delivers a premium network experience.
- USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.
- HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

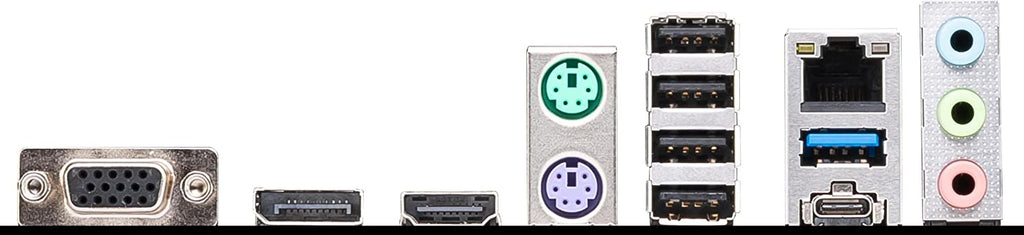

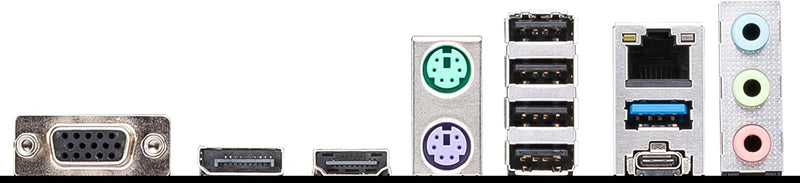

- Display Outputs: Include HDMI 1.4 (4K/30Hz), DisplayPort 1.4 (4K/60Hz) and legacy VGA
