Description

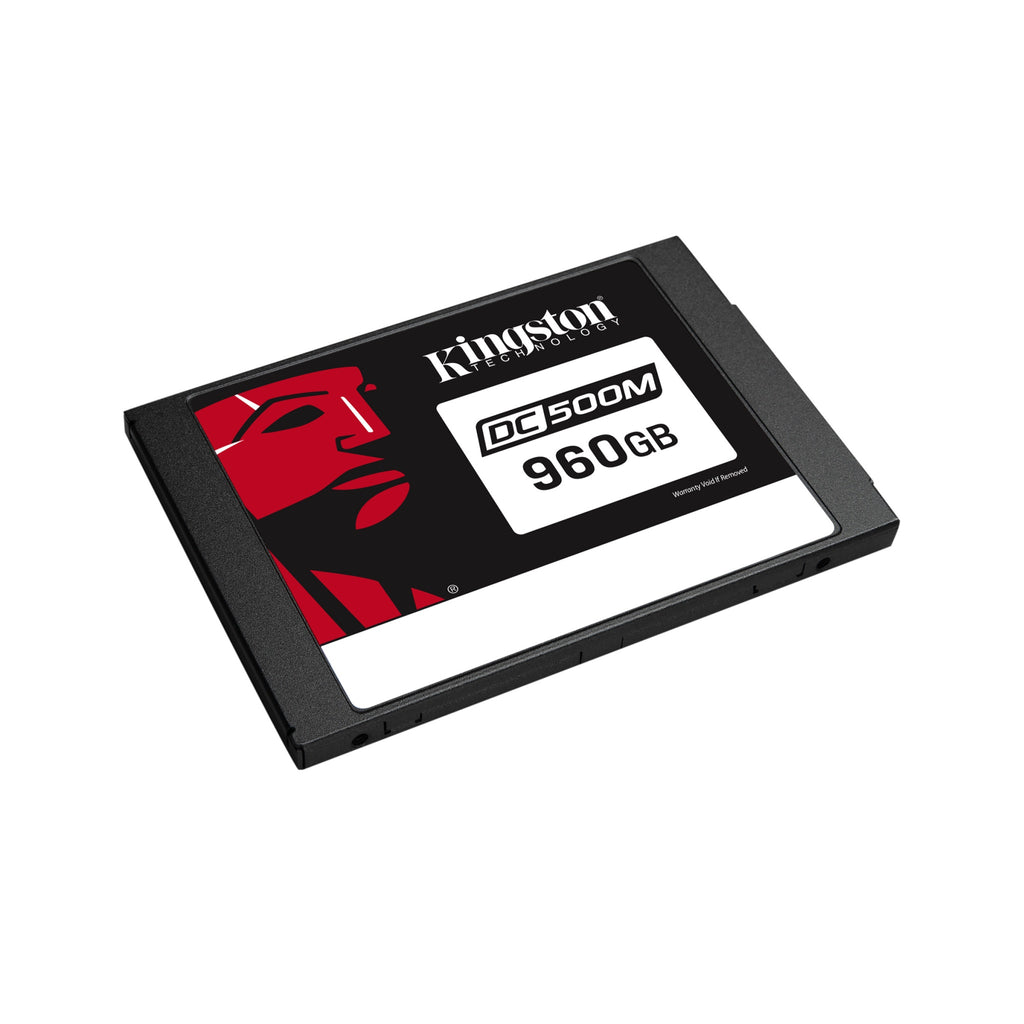

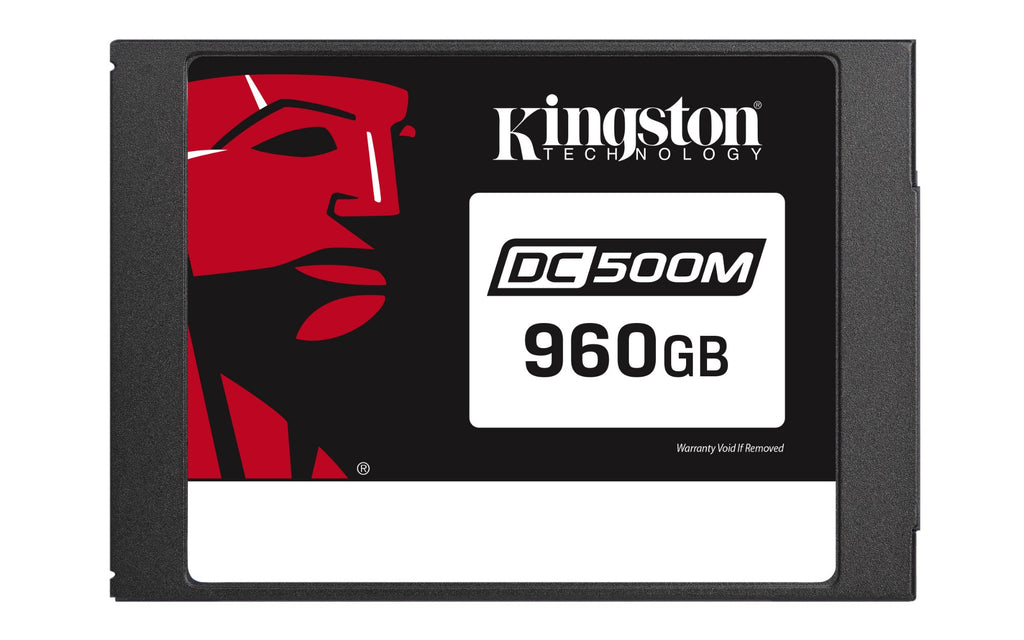

Kingston Technology DC500 2.5" 960 GB Serial ATA III 3D TLC
Key Features
- 960GB Kingston Technology DC500 Internal Solid State Drive
- 2.5-inch form factor
- Serial ATA III interface type
- Read speed up to 555MB/s
- Write speed up to 520MB/s
Specifications
| CAPACITY | 960GB |
| INTERFACE TYPE | Serial ATA III |
| FORM FACTOR | 2.5" |
| DATA TRANSFER RATES | Read speed: 555 MB/s Write speed: 520 MB/s |
| RANDOM READ (4K) IOPS | 98000 IOPS |
| RANDOM WRITE (4K) IOPS | 70000 IOPS |
| FLASH STORAGE DETAILS | 3D TLC |
| OPERATING TEMPERATURE | 32 - 158 °F |
| MTBF | 2000000 h |
| S.M.A.R.T. SUPPORT | S.M.A.R.T. support |
| SPECIAL FEATURES | Security algorithms: 256-bit AES S.M.A.R.T. support |
| PACKAGING | Retail packaging |
Performance, Reliability and Consistency
Data Centre 500 Series
Kingston's Data Centre 500 (DC500R / DC500M) series of solid-state drives are high-performance 6Gbps SATA SSDs that use the latest 3D TLC NAND, designed for read-centric and mixed-use server workloads. They implement Kingston's strict QoS requirements to ensure predictable random I/O performance as well as predictable low latencies over a wide range of read and write workloads. They can increase productivity for AI, machine learning, big data analytics, cloud computing, software-defined storage, operational databases (ODB), database applications and data warehousing. Capacities from 480GB, 960GB, 1.92TB, 3.84TB ****
Enterprise Data Centre SSD
Delivering on business demands for 24/7 uptime and reliability, Kingston Enterprise SSDs offer high-performing storage that combines predictable performance with rigorously tested reliability. Kingston's DC500 Series SSDs offer features that enable data centres to select the most cost-effective SSD for their workload(s). Businesses require results in order to deliver on products, solutions and service level agreements (SLAs). Kingston's DC500 Series SSDs are designed to deliver on these expectations.
DC500R: Read-centric SSD
DC500R is a highly optimised SSD designed for read-centric workloads, enabling data centres to select SSDs tailored for workloads without overspending on more expensive write-intensive SSDs. It delivers I/O speeds and response times (latency) that a data centre can deploy with confidence to ensure high levels of performance in the working application and downstream at the user interface. These are typically defined by applications that require real-time results. Serving large amounts of data and delivering responsive results from a variety of databases and web-based applications can leverage the receptive performance of the DC500R.
DC500M: Mixed-use SSD
DC500M is a powerful SSD designed for mixed-use workload applications where the demand has a more balanced mix of read and write operations. It delivers greater write endurance over a wide range of workloads while maintaining the strict performance consistency requirements designed into all of Kingston's data centre SSDs. Data centres that host databases and various web-based applications can leverage the predictable I/O and latency performance while controlling infrastructure costs.
End-to-end Protection
The DC500 series SSDs incorporate end-to-end data path protection to help guarantee that all user data transferred into the SSD is protected against transient errors. The DC500R and DC500M both include on-board power-loss protection (PLP) via power capacitors and firmware. This ensures data-in-flight is written to the NAND Flash memory in the event of unexpected power loss. Additionally, PLP ensures that the drives' mapping table (FTL) is updated prior to power being removed from the drive. These power loss safeguards reduce the chance of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system
