Description
- Data Center SSD for Enterprise
- Optimized for Mixed-use Applications
- U.2 PCIe NVMe Gen3 x4
- Up to 3,100MB/s Read, 1,700MB/s Write
- Part Number: SEDC1500M/960G

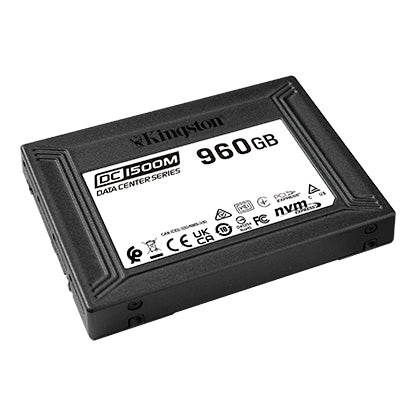

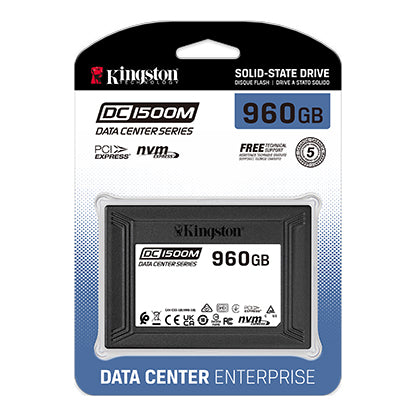

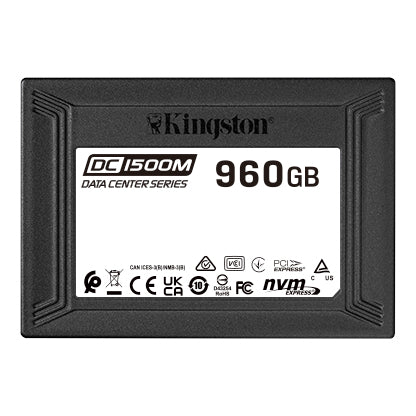

Kingston DC1500M U.2 NVMe SSD features high-storage capacity and enhanced enterprise performance. It offers a high-performance Gen 3.0 x4 PCIe NVMe design to deliver latency and IOPS consistency. DC1500M is backed by strict QoS requirements to ensure predictable random IO performance as well as predictable latencies over a wide range of workloads.
The U.2 form factor design (2.5”, 15mm) works seamlessly with the latest generation servers and storage arrays utilizing PCIe and U.2 backplanes. DC1500M is hot pluggable eliminating the challenges of serviceable PCIe storage.
** Enterprise-class U.2 PCIe NVMe Gen 3.0 x4 SSD
** Exceptional speeds up to 3GB/s
** Predictable low-latency and I/O consistency
** On-board Power Loss Protection (PLP)
It boasts enterprise-class features such as end-to-end data path protection, namespace management, power loss protection (PLP), and telemetry monitoring for increased data center reliability. Backed by Kingston’s legendary pre- and post-sales support and a five-year limited warranty1. Capacities range from 960GB to 7.6TB2.
Applications
The "mixed-use" workload drive makes it ideal for running a wide range of customer applications including:
- Virtualization
- High performance cloud service
- Web hosting caching
- High-resolution media capture and transport
- ERP, CRM, GL, OLAP, OLTP, ERM, BI, and EDW workloads
| Form Factor | U.2, 2.5” x 15mm |
| Interface | PCIe NVMe Gen3 x4 |
| Capacities2 | 960GB, 1.92TB, 3.84TB, 7.68TB |
| NAND | 3D TLC |
| Sequential Read/Write | 960GB – 3,100/1,700MB/s 1.92TB – 3,300/2,700MB/s 3.84TB – 3,100/2,700MB/s 7.68TB – 3,100/2,700MB/s |
| Steady-State 4k Read/Write | 960GB – 440,000/150,000 IOPS 1.92TB – 510,000/220,000 IOPS 3.84TB – 480,000/210,000 IOPS 7.68TB – 420,000/200,000 IOPS |
| Latency Quality of Service (QoS)3,4,5 | 99.9 - Read/Write: <110 µs / <206 µs |
| Static and Dynamic Wear Leveling | Yes |
| Power Loss Protection (Power Caps) | Yes |
| Namespace Management Support | Yes - 64 Namespaces supported |
| Enterprise Diagnostics | Telemetry, Media Wear, Temperature, Health and Error Logs, etc |
| Endurance | 960GB – 1681 TBW6 (1 DWPD/5yrs)6 (1.6 DWPD/3yrs)6 1.92TB – 3362 TBW6 (1 DWPD/5yrs)6 (1.6 DWPD/3yrs)6 3.84TB – 6725 TBW6 (1 DWPD/5yrs)6 (1.6 DWPD/3yrs)6 7.68TB – 13450 TBW6 (1 DWPD/5yrs)6 (1.6 DWPD/3yrs)6 |
| Power Consumption | 960GB – Idle: 6.30W Average Read: 6.21W Average Write: 11.40W Max Read: 6.60W Max Write: 12.24W 1.92TB – Idle: 6.60W Average Read: 6.30W Average Write: 13.7W Max Read: 6.63W Max Write: 15.36W 3.84TB – Idle: 6.8W Average Read: 6.40W Average Write: 14.20W Max Read: 7W Max Write: 16W 7.68TB – Idle: 7W Average Read: 7.30W Average Write: 17.14W Max Read: 8.16W Max Write: 20.88W |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 100.09mm x 69.84mm x 14.75mm |
| Weight | 960GB – 145g 1.92TB – 150g 3.84TB – 155g 7.68TB – 160g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support1 | Limited 5-year warranty with free technical support |
