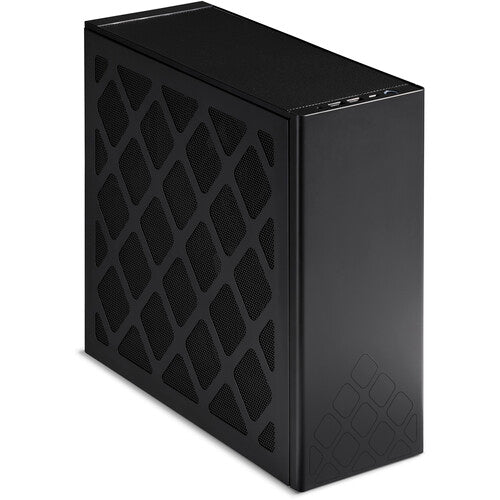

INTEL NUC 13 EXTREME KIT, i7-13700K DDR5 (0/2) ,M.2 (0/3), WIFI 6E, AU PWR CORD,3YR

INTEL
SKU: 99C51G
Model Number: 99C51G

Price:
Sale price$2,128
Stock:
Sold out

Description

INTEL NUC 13 EXTREME KIT, i7-13700K DDR5 (0/2) ,M.2 (0/3), WIFI 6E, AU PWR CORD,3YR

Key Features

  • 2.5 GHz Intel Core i7 16-Core (13th Gen)
  • 2 x 5600 MHz DDR5 SO-DIMM RAM Slots
  • Integrated Intel UHD 770 Graphics
  • 3 x M.2 2280 Slots
  • 1 x PCIe 5.0 x16 Slot
  • 1 x 10 GbE | 1 x 2.5 GbE
  • Wi-Fi 6E (802.11ax) | Bluetooth 5.3
  • HDMI 2.1 | Thunderbolt 4 | USB 3.2 Gen 2
  • RGB Lighting
  • Windows 11 OS Ready

Specifications:

Performance
CPU Architecture x86
Chipset Intel Z690
Processor Intel Core i7-13700K (13th Gen)
CPU Socket LGA 1700
CPU 3.4 to 5.4 GHz Performance 8-Core
2.5 to 4.2 GHz Efficiency 8-Core
L3 Cache 30 MB
Graphics Type Integrated
GPU Intel UHD Graphics 770
Memory Type 5600 MHz DDR5
Total Installed Memory None
Memory Configuration 0 GB
Maximum Memory Capacity 64 GB
Memory Slot Type 262-Pin SO-DIMM
Memory Slots 2 (2 Available)
Buffered Memory No
ECC Memory No
SSD Slots 3 x M.2 2280
Total Installed Capacity None
PCI Expansion 1 x PCIe 5.0 x16 (Available)
Optical Drive None

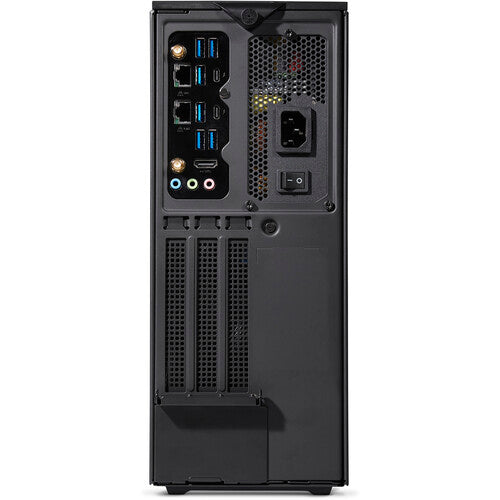

I/O
Ports 6 x USB-A 3.1/3.2 Gen 2
2 x USB-A 3.0 / 3.1/3.2 Gen 1
USB Type-C 2 x Thunderbolt 4
1 x USB 3.2 Gen 2x2
Display 1 x HDMI 2.1
Audio I/O 4 x 1/8" / 3.5 mm Line Output
Media/Memory Card Slot None
Communications
Ethernet 1 x RJ45 (10GbE)
1 x RJ45 (2.5GbE)
Wi-Fi Wi-Fi 6E (802.11ax)
Bluetooth 5.3
NFC No
Keyboard & Mouse
Keyboard None
Pointing Device None
General
Power Supply 750 W with IEC
Dimensions 13.3 x 12.5 x 5.1" / 337 x 318 x 129 mm



Packaging Info
Package Weight 21.715 lb
Box Dimensions (LxWxH) 19 x 18.4 x 9.9"



Build your own powerful gaming system with the Intel NUC 13 Extreme Kit. This barebones kit features the modular Intel NUC 13 Extreme Compute Element that houses a 13th Gen Intel Core i7 16-Core processor with integrated Intel UHD 770 Graphics. The two SO-DIMM slots can support up to 64GB of 5600 MHz DDR5 RAM. Gamers will be pleased to know that they will be able to fit a triple-slot 12" graphics card into the NUC 13 Extreme's PCIe 5.0 x16 slot. Gamers will have plenty of options for connecting to the internet for their online multiplayer games, such as a 10 GbE jack, a 2.5 GbE jack, and Wi-Fi 6E (802.11ax). Other features include Thunderbolt 4, HDMI 2.1, RGB lighting, and dual 120mm fans for a streamlined thermal design. You can install Windows 11 on the NUC 13 Extreme. A US power cord is included.

13th Gen Intel Core Performance

The system houses the modular Intel NUC 13 Extreme Compute Element, which features a 13th Gen Intel Core i7-13700K processor at 125W, nearly twice the base power of the previous generation. Its eight performance cores can be boosted up to 5.4 GHz while its eight efficiency cores handle background tasks.

Fits a Triple-Slot Graphics Card

The NUC 13 Extreme can fit up to a triple-slot 12" graphics card in its PCIe 5.0 x16 slot.

DDR5 RAM

There are two dual-channel DDR5-5600 SO-DIMM slots, which can support up to 64GB.

Stay Connected

Play your favorite multiplayer games with a reliable, wired connection, thanks to both a 2.5 GbE and a 10 GbE Ethernet jack. For going wireless, the NUC 13 Extreme has Wi-Fi 6E (802.11ax) connectivity.

Thunderbolt 4

Thunderbolt 4 is a hardware interface that utilizes the reversible USB Type-C connector and features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort allows you to connect either one 8K monitor or up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 4 port.

Cooling

Dual 120mm fans help to provide efficient airflow to the system for optimal performance.

Compact Design

With the modern design, airflow is optimized to minimize noise and throttling during hours of intense gameplay. The NUC 13 Extreme also has a small footprint.

OS Ready

Windows 11 (sold separately) can be installed on the NUC 13 Extreme.
