Description

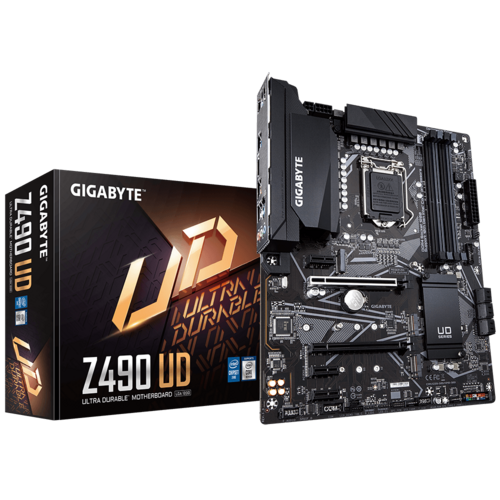

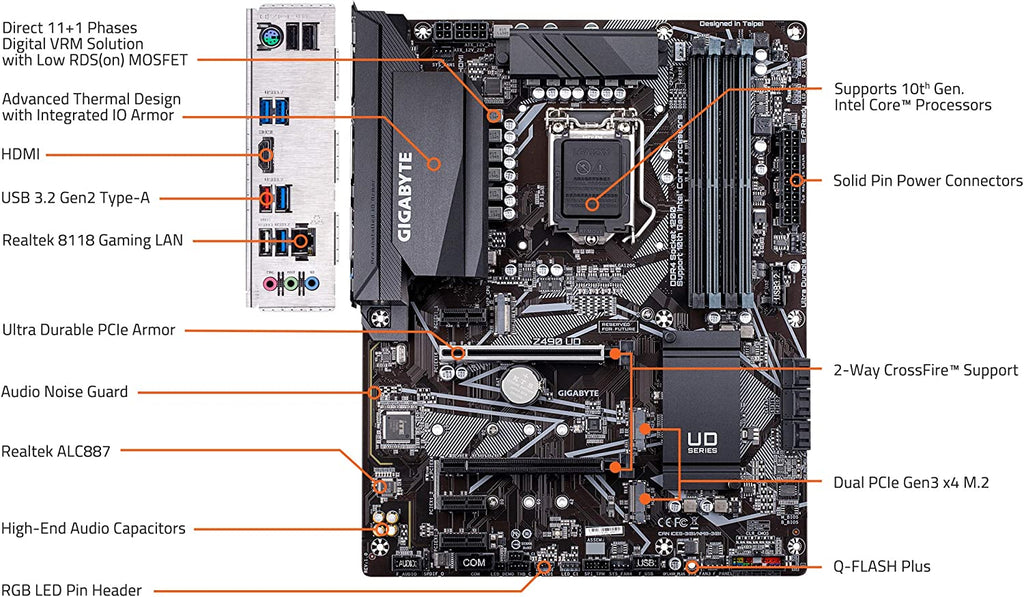

Intel® Z490 Ultra Durable Motherboard with Direct 11+1 Phases Digital VRM, Extended MOS Heatsink, Dual NVMe PCIe 3.0 x4 M.2, GbE Gaming LAN, Integrated I/O Shield, Q-Flash PLUS, RGB FUSION 2.0
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Enlarged VRM Heatsink with Increased Surface contact Air-Flow Grooving
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- Multi-Way Graphics Support with PCIe Armor and Ultra Durable™ Design
- Dual Ultra-Fast M.2 with PCIe Gen3 X4 & One Supports SATA protocol
- Intel® Native USB 3.2 Gen2 Type-A with Speed Up To 10Gbps
- RGB FUSION 2.0 Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash PLUS Updates BIOS without Installing the CPU, Memory and Graphics Card

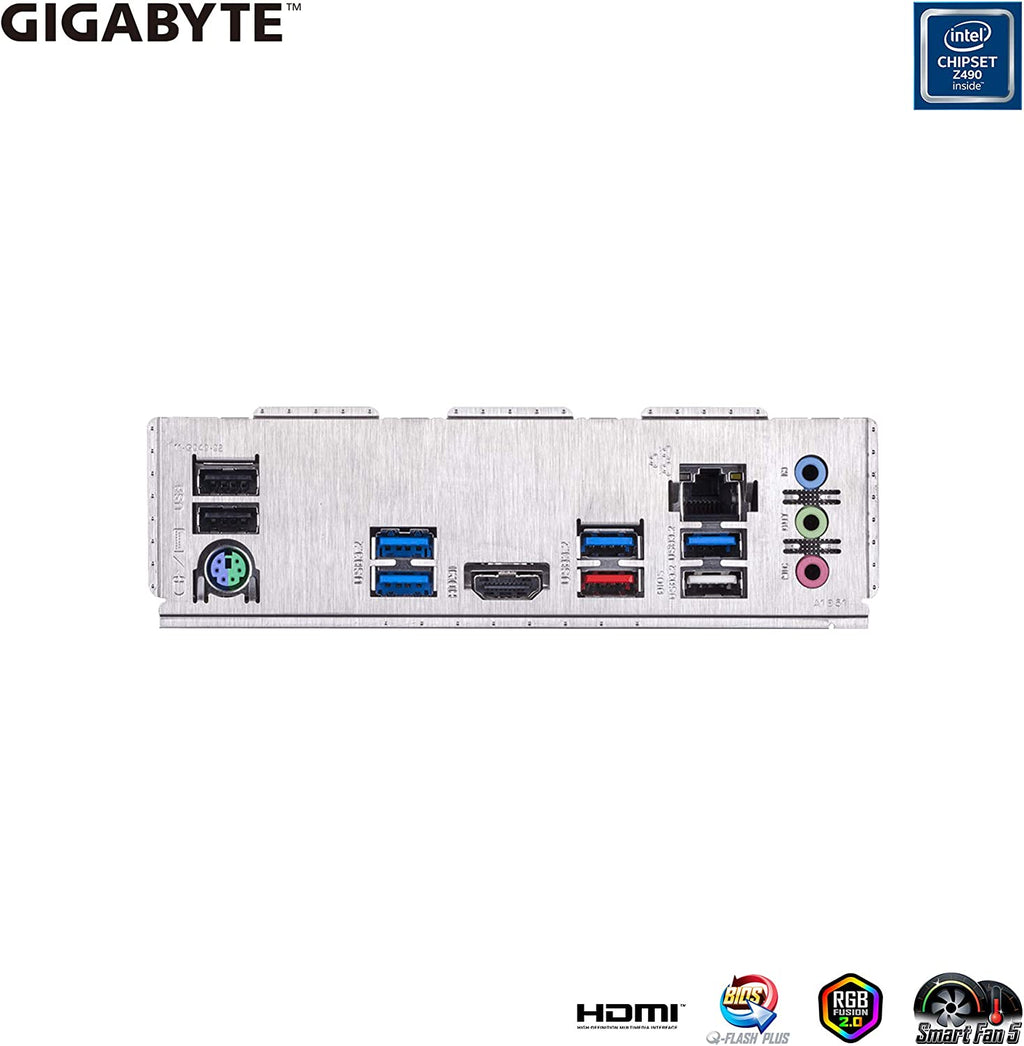

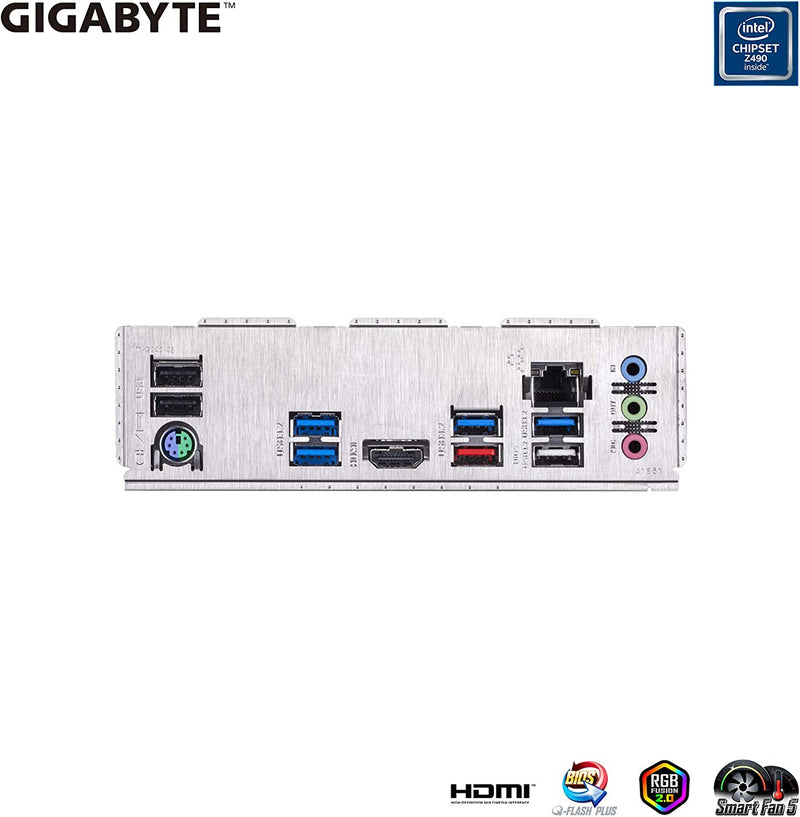

- Rear IO Armor with Pre-Installed I/O Shield
- CEC 2019 Ready, Save the Power as Easy as One Click
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- * Updated BIOS is required for compatibility
CPU
- Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
- L3 cache varies with CPU
Chipset
- Intel® Z490 Express Chipset
Memory
- Intel® Core™ i9/i7 processors:
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules - Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules - 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3. - Maximum shared memory of 512 MB
Audio
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. - Support for S/PDIF Out
LAN
- Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
