Description

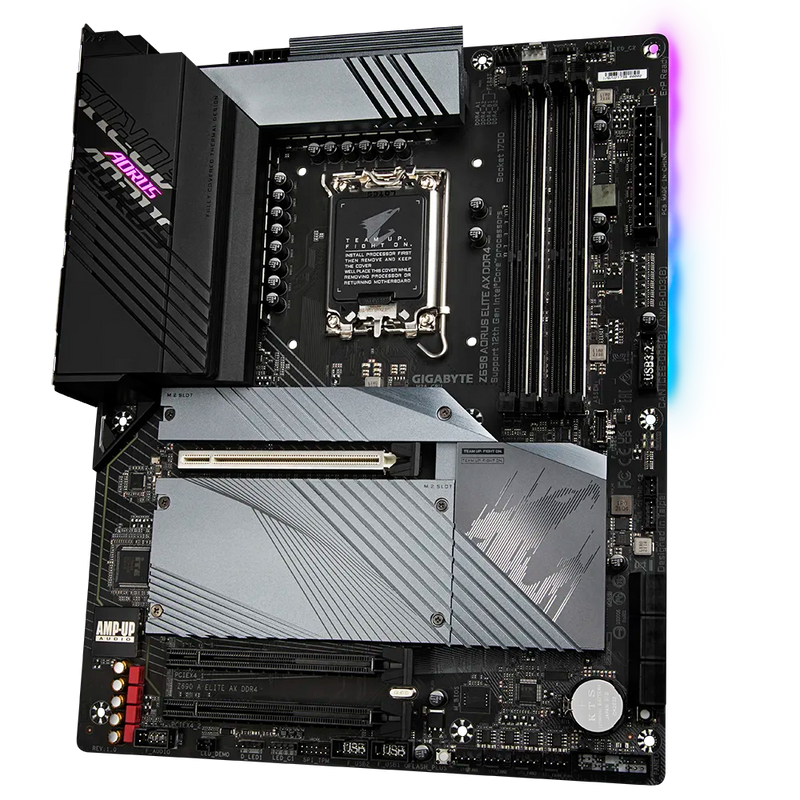

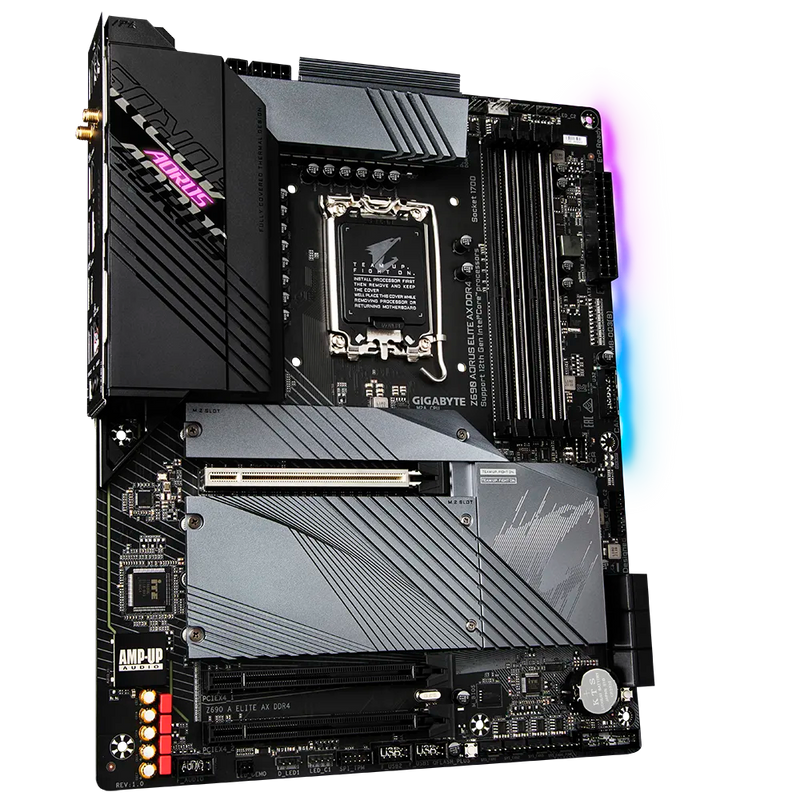

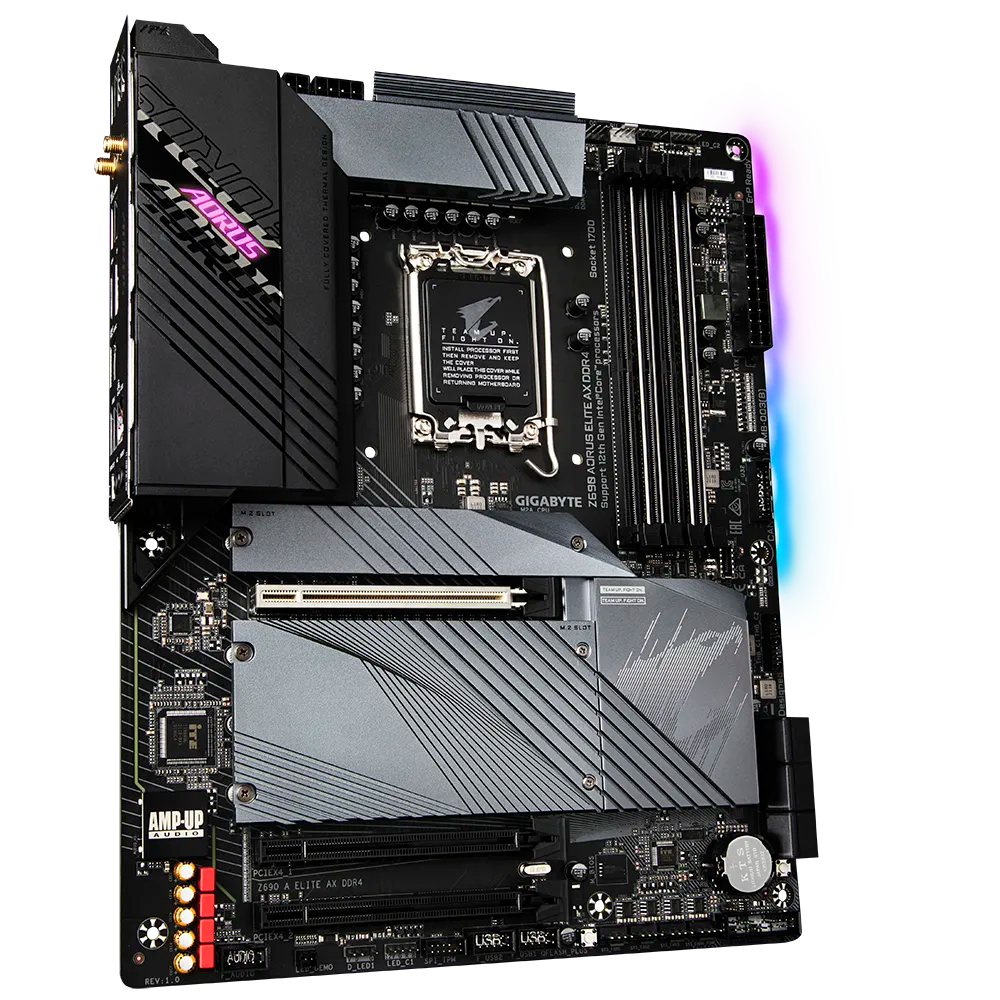

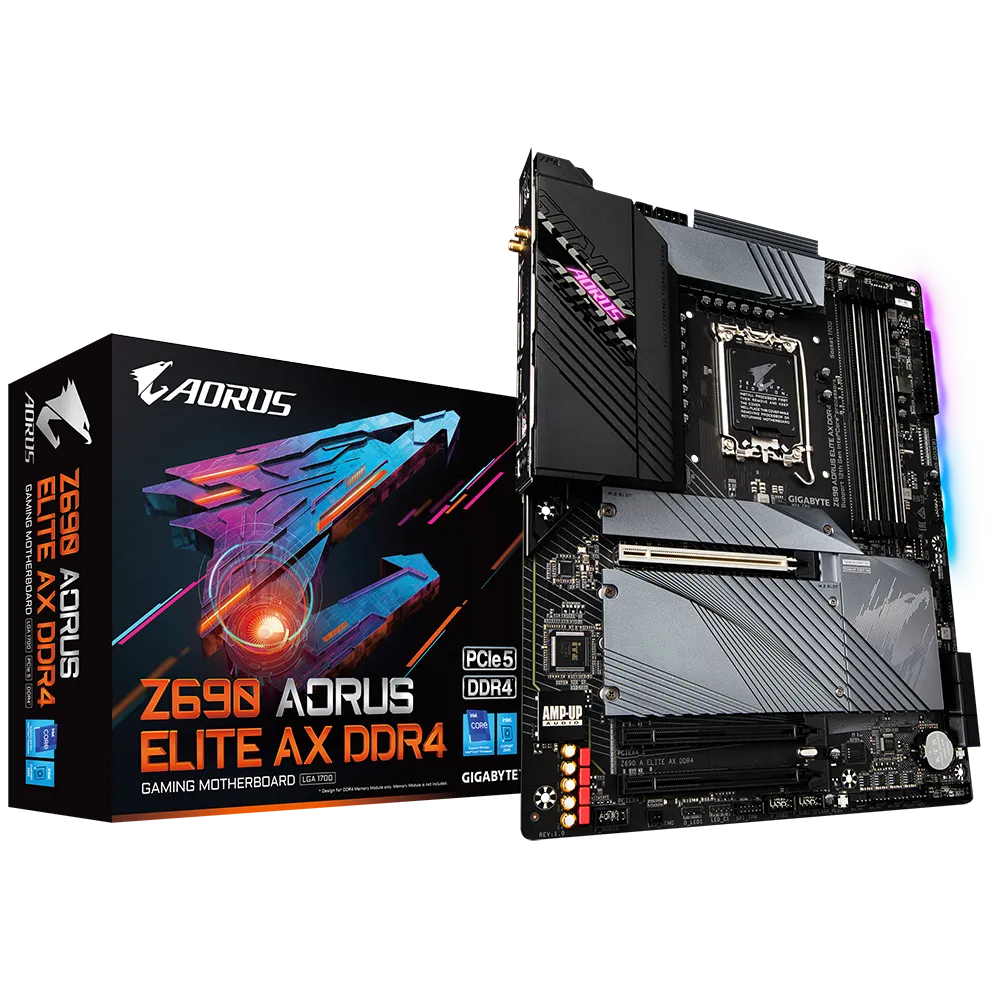

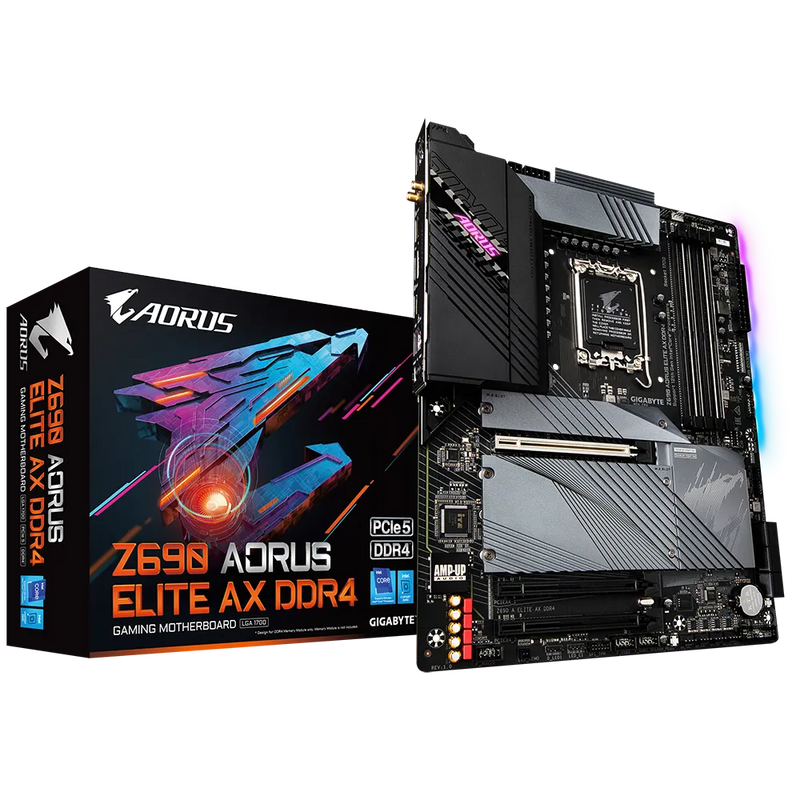

Gigabyte PURCHASE 5X GIGABYTE Z690 A ELITE AX DDR4 MOTHERBOARD AND GET BONUS 500GB NVMe SSD
- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors. Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports
- DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4
- Commanding Power Design: 16 plus1 plus2 Digital VRM Design with 70A Power Stage with Tantalum Polymer Capacitors
- Cutting-Edge Thermal Design: Fully Covered Thermal Design and High Coverage MOSFET Heatsinks, Enlarged Thermal Guards
- Next Gen Connectivity: PCIe 5.0. Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Fast Networking: 2.5 GbE LAN, WiFi 6 802.11ax, BT5
- Dynamic Audio: Amp-Up Audio with ALC4080 and WIMA Audio Capacitors
Specifications:
Brand | Gigabyte |
CPU Socket | LGA 1700 |
Compatible Devices | Personal Computer |
RAM Memory Technology | DDR4 |
Compatible Processors | 12th Gen Intel Core |
Chipset Type | Intel |
Memory Clock Speed | 2133 MHz |
Platform | Windows |
Model Name | Z690 AORUS ELITE AX DDR4 |
Memory Storage Capacity | 128 GB |
Key Features:
CPU
- LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
Chipset
1. Intel® Z690 Express Chipset
Memory
- Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
