Description

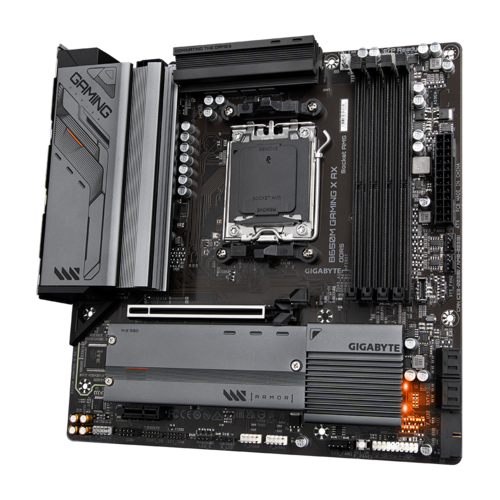

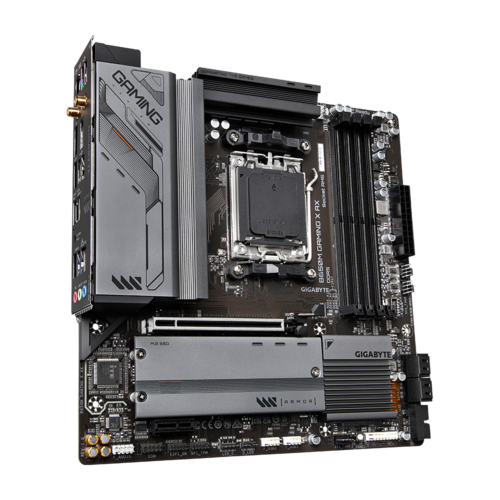

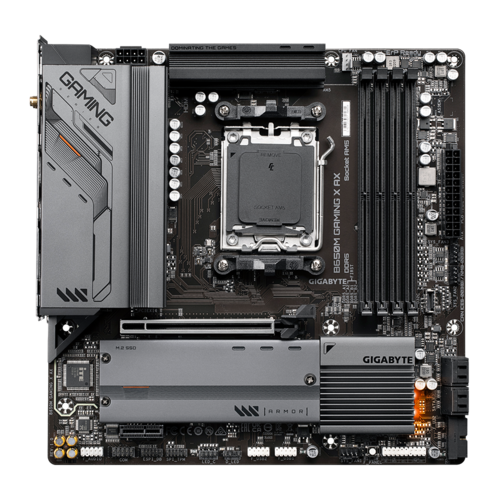

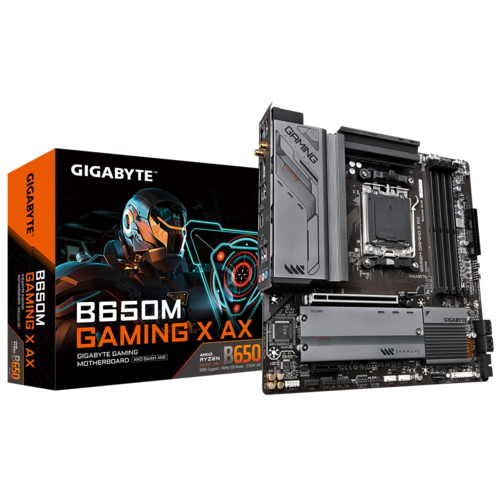

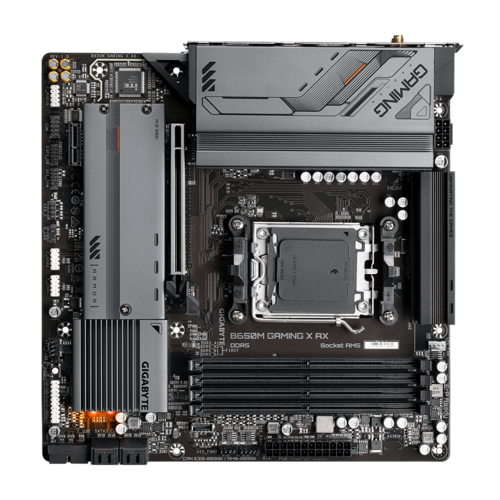

Gigabyte PURCHASE 5X GIGABYTE B650M GAMING X AX MOTHERBOARD AND 2X GET BONUS 500GB NVMe SSD
Key Features:
- AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch:PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity:2*DP, HDMI, 2*USB-C® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
More Details
CPU
- AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset
- AMD B650
Memory
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
Support for up to 3 displays at the same time
- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Support for up to 3 displays at the same time
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) (For PCB rev. 1.0/1.2)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
CPU:
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 4 x USB 2.0/1.1 ports on the back panel
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
