Description

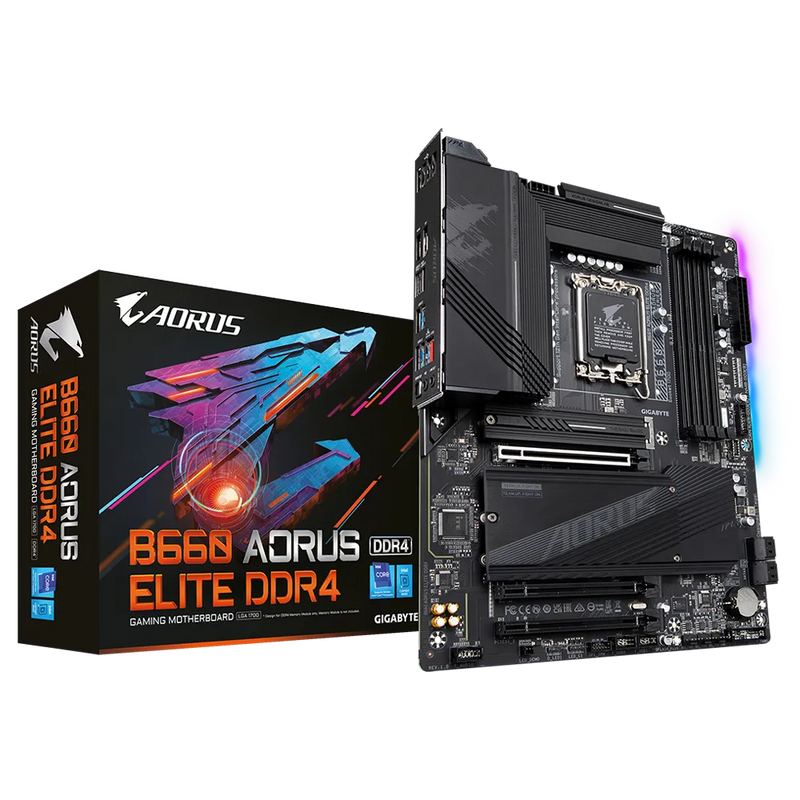

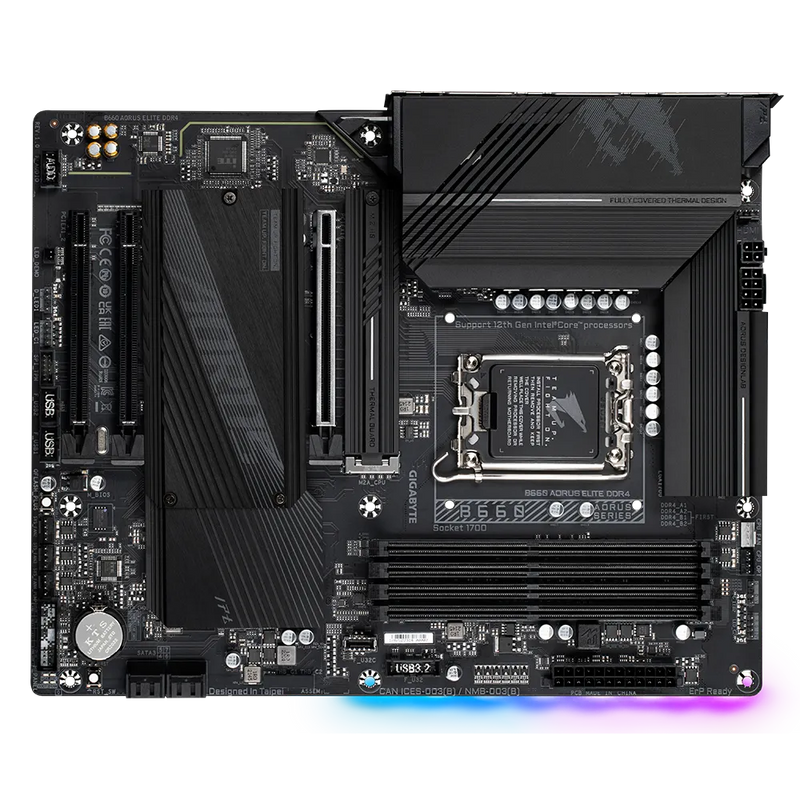

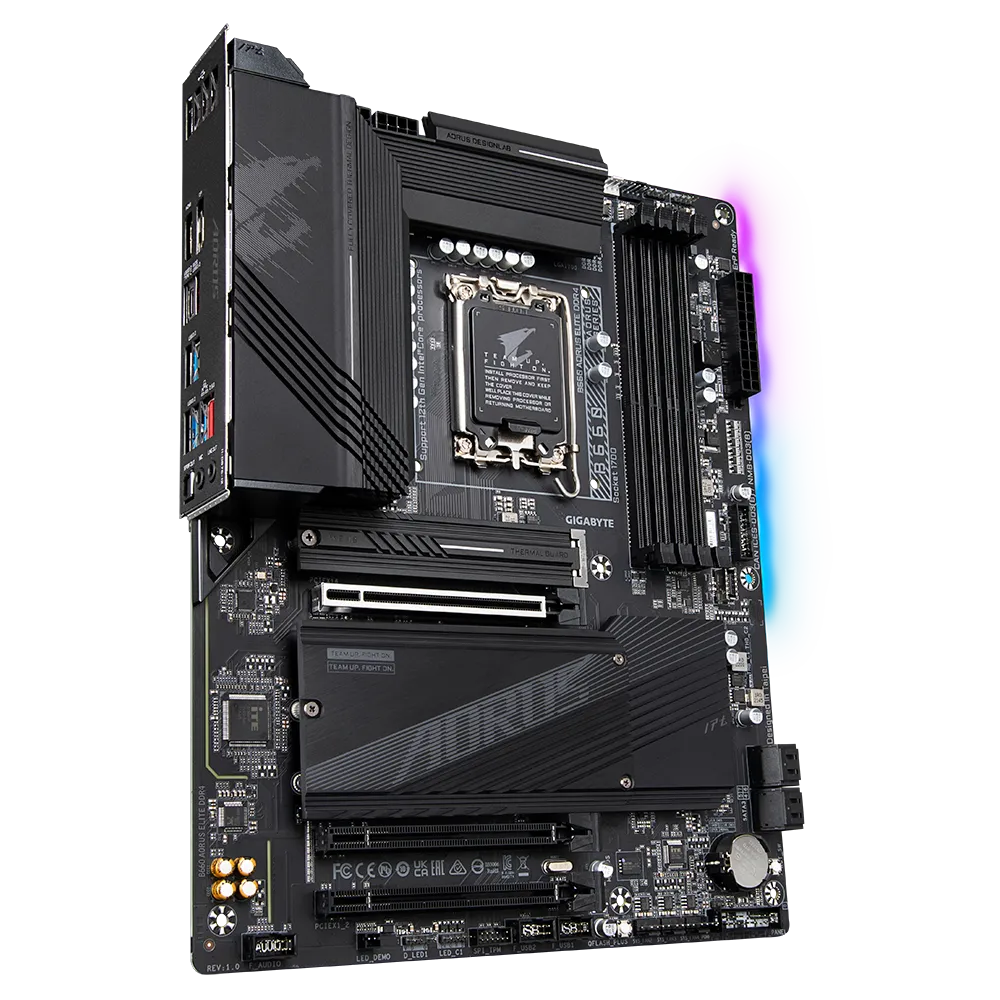

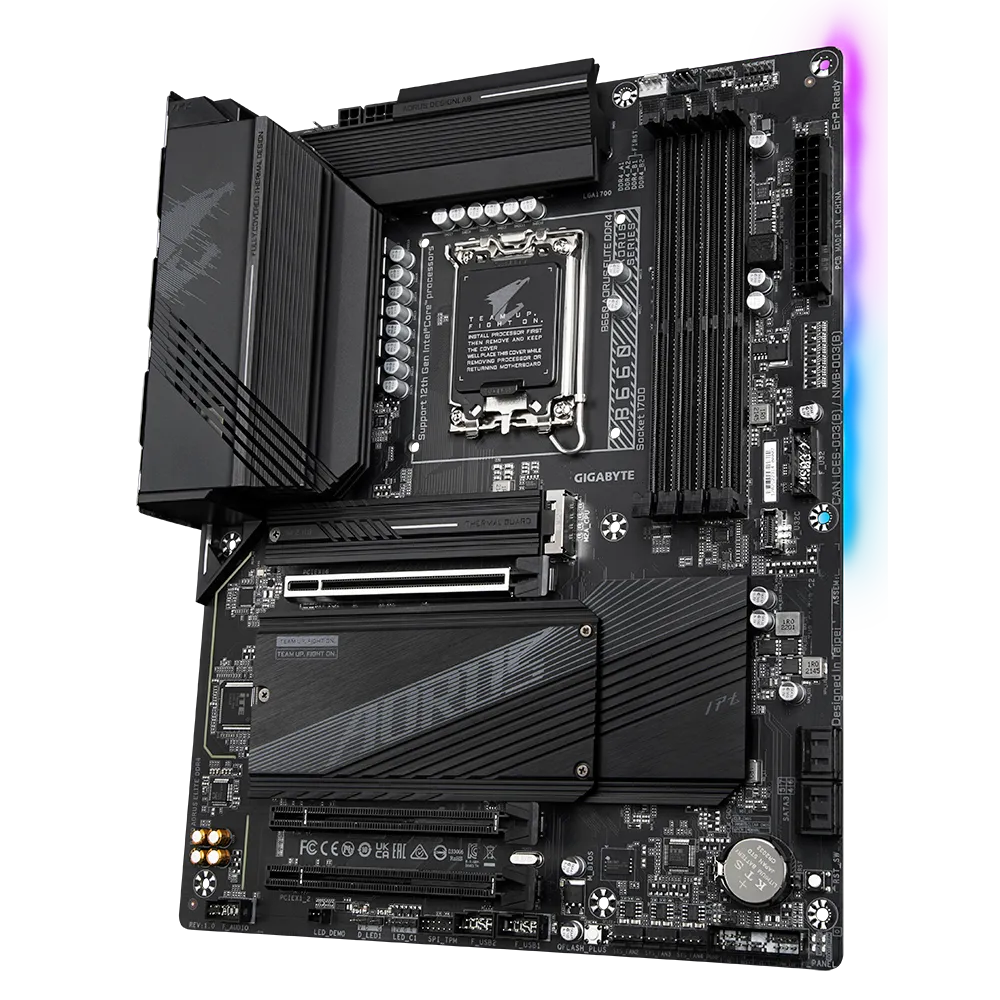

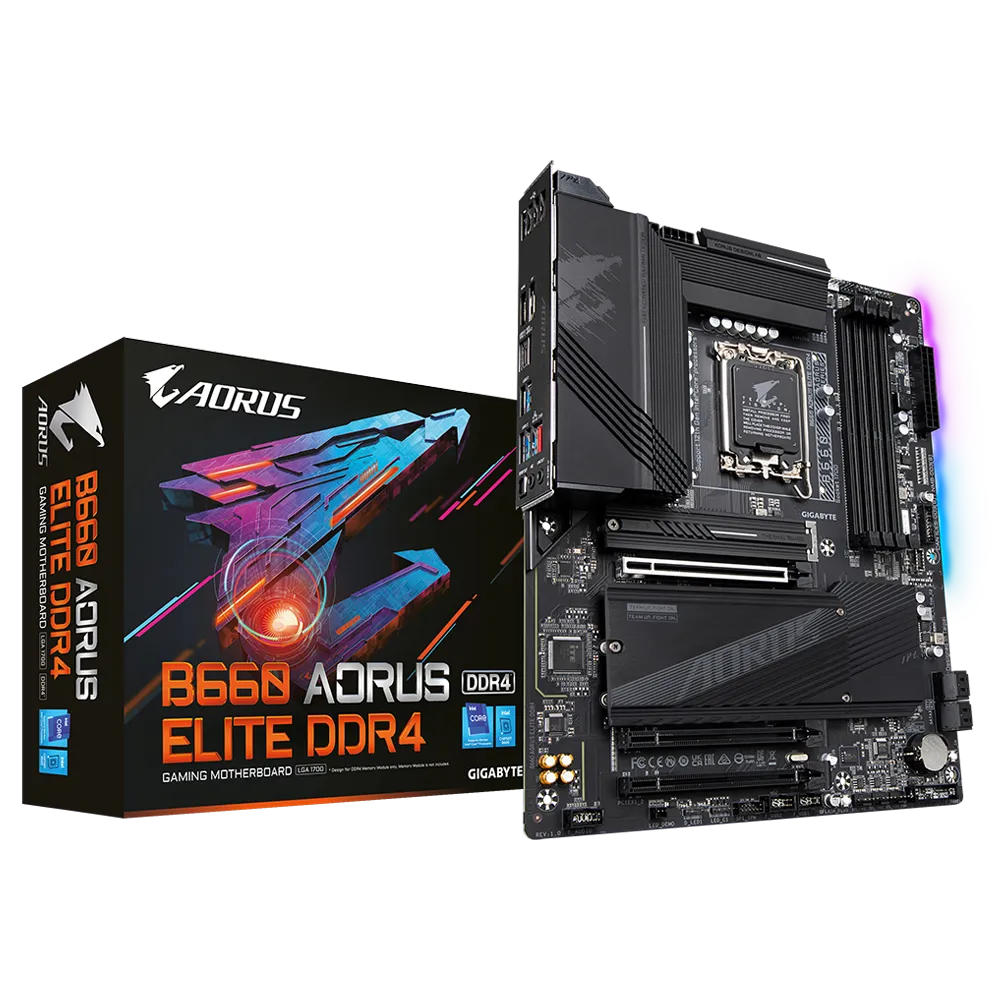

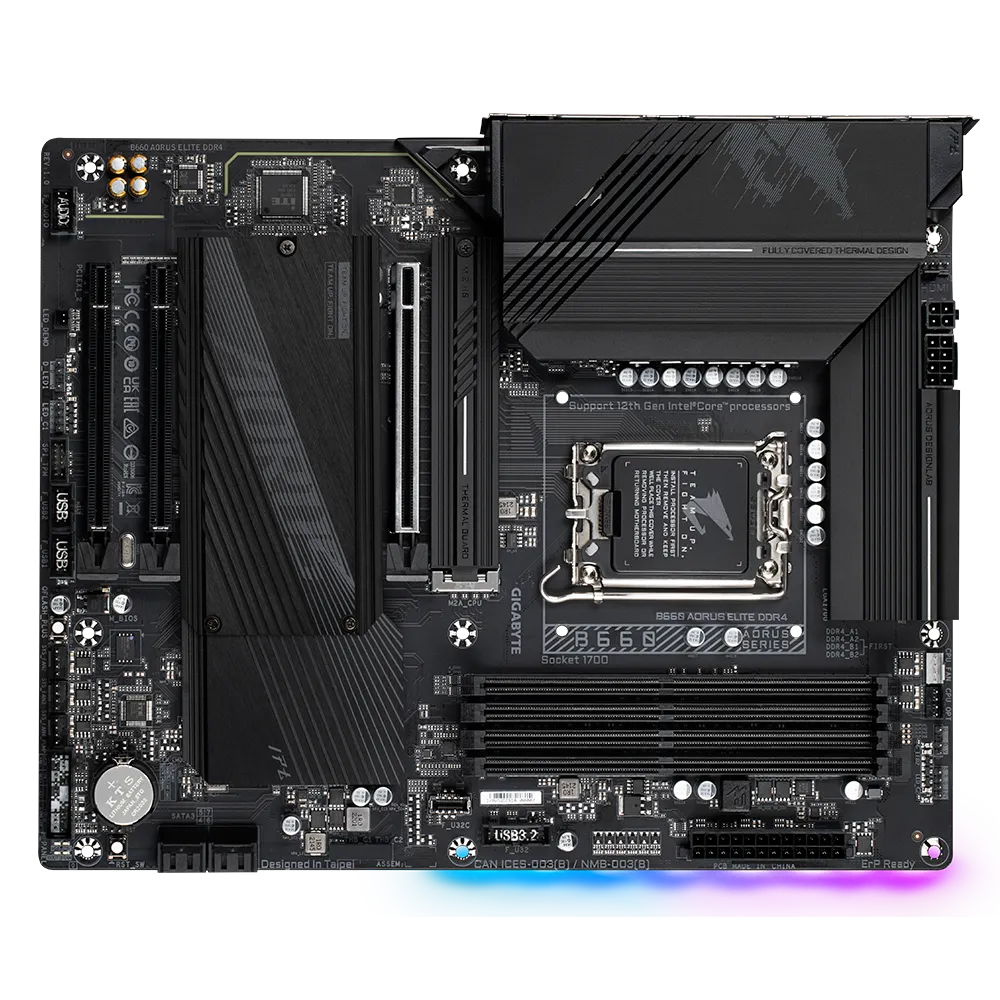

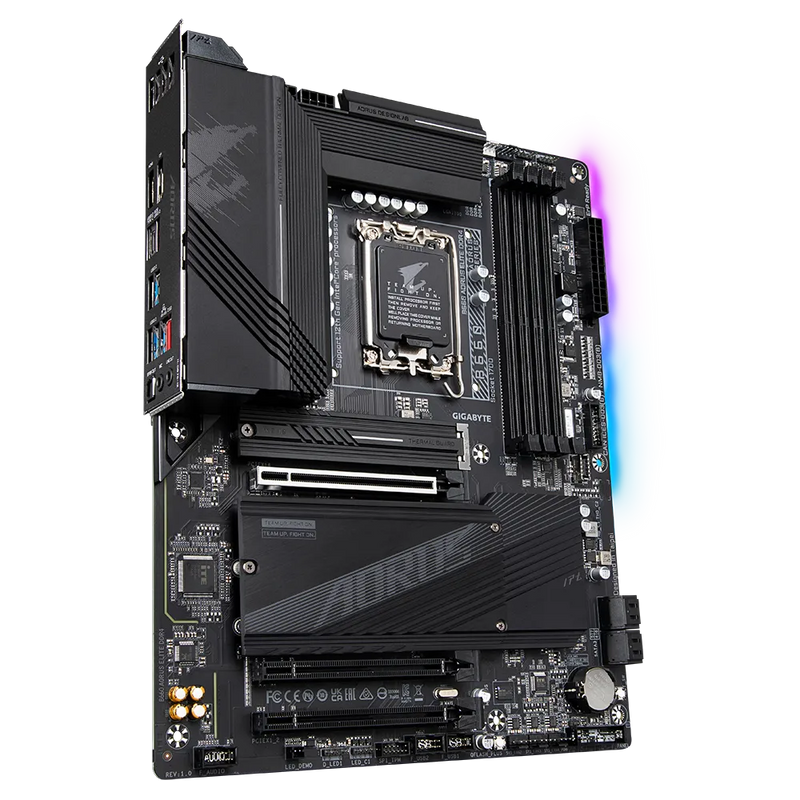

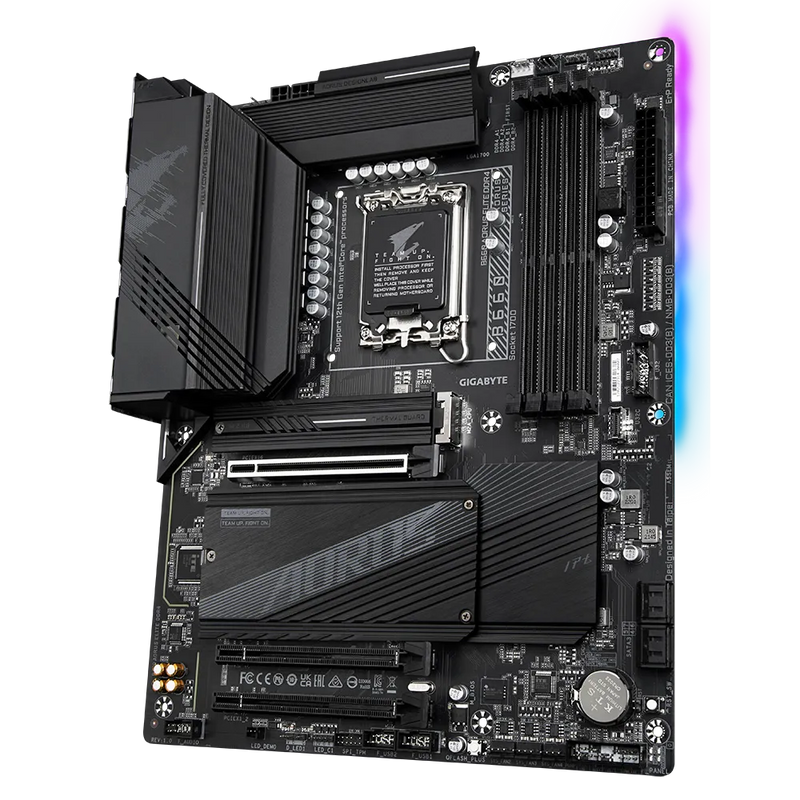

Gigabyte M/B B660 AORUS ELITE DDR4 1.0
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
- Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
- Pre-installed IO Shield for easy and quick installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications:
CPU
- LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
Chipset
- Intel® B660 Express Chipset
Memory
- Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. - Support for S/PDIF Out
LAN
-
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Key Features:
B660 AORUS ELITE DDR4. BUILD SMART. GO ELITE.
Ever wonder why your system underperforms? You may be surprised how a motherboard could critically bottleneck the system performance, especially when it falls short on both the power and thermal design. With a limited budget, it is even more important to spend it wisely. Introducing AORUS ELITE motherboards, featuring the best-in-class digital power design, the best-in-class full-metal heatsink, and the best-in-class DDR4 XMP compatibility. It only takes a small step-up to be the best-in-class. Build Smart. Go ELITE.
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
