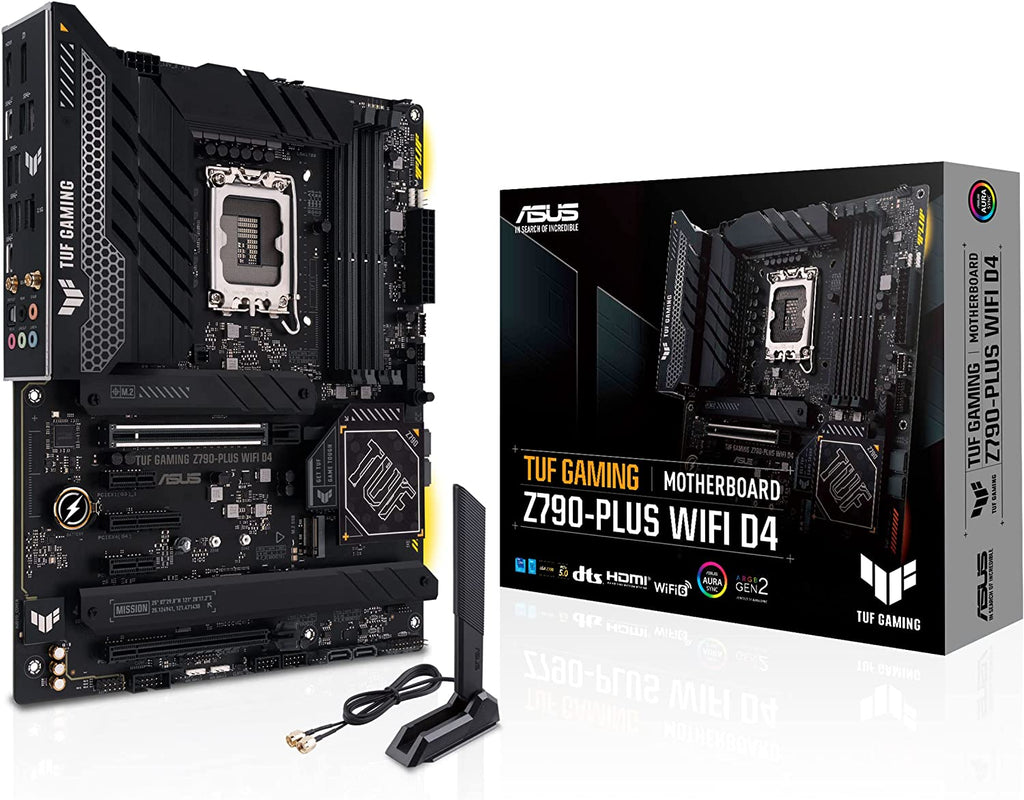

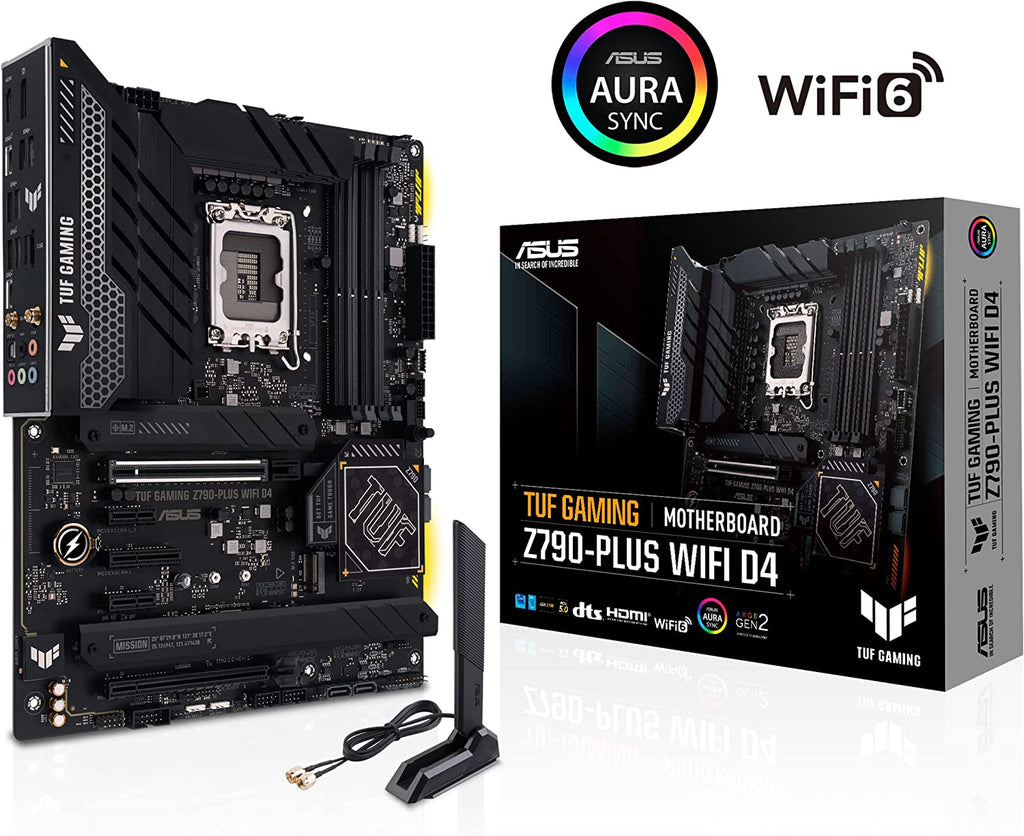

ASUS TUF GAMING Z790-PLUS WIFI D4 Intel Z790 LGA 1700 ATX (copy)
ASUS TUF GAMING Z790-PLUS WiFi D4 takes all the essential elements of the latest 13th Gen Intel® Core™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING Z790-PLUS WiFi D4 sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
- Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready
- Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
- Comprehensive Cooling : VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Ultra Fast Gaming Networking : WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology
- Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4)header
|CPU Socket||LGA 1700|
|RAM Memory Technology||DDR4|
|Compatible Processors||Intel celeron|
|Chipset Type||Intel Z790|
|Memory Speed||4400 MHz|
|Memory Storage Capacity||128 GB|
|RAM Memory Maximum Size||128 GB|
|Graphics Card Interface||PCI Express|

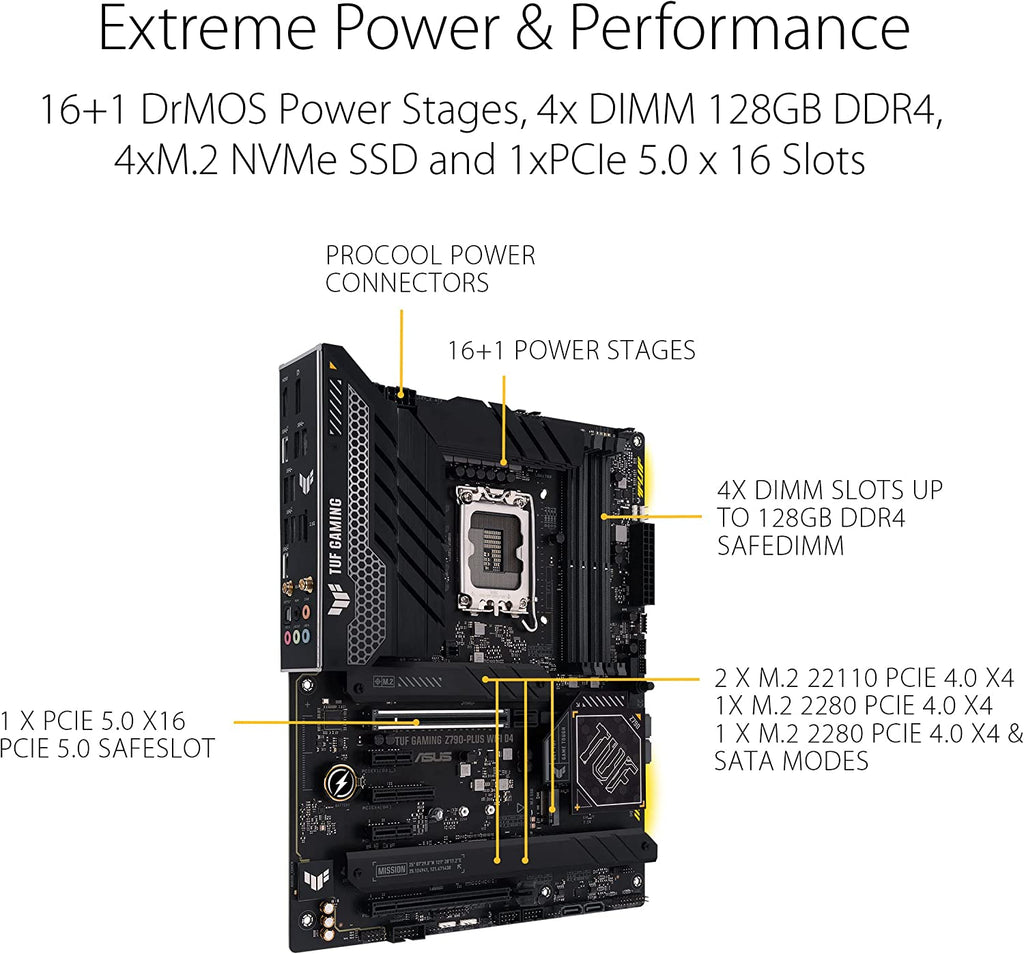

DrMOS Power Stages
16+1 power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
DRAM Overclocking Performance
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
PCIe 4.0 Support
The four PCIe 4.0 M.2 slots support up to two 22110 devices and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to four PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

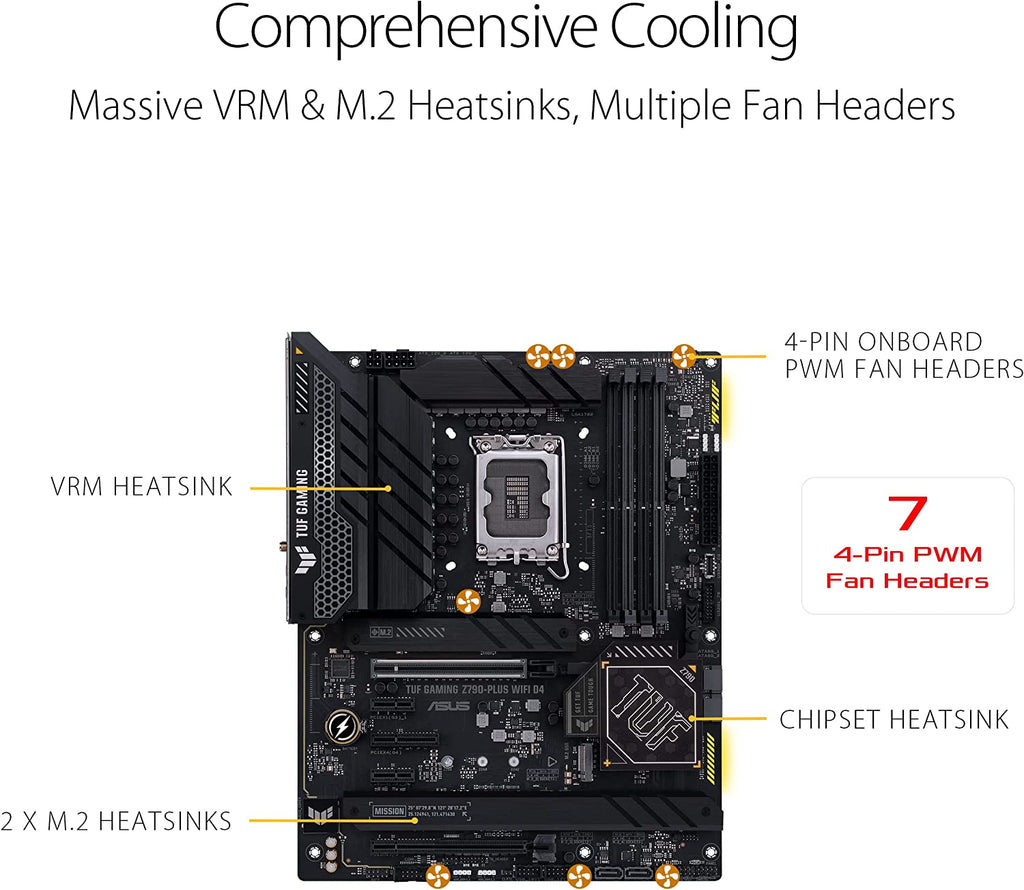

Cooler By Design
The TUF GAMING Z790-PLUS WIFI D4 is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

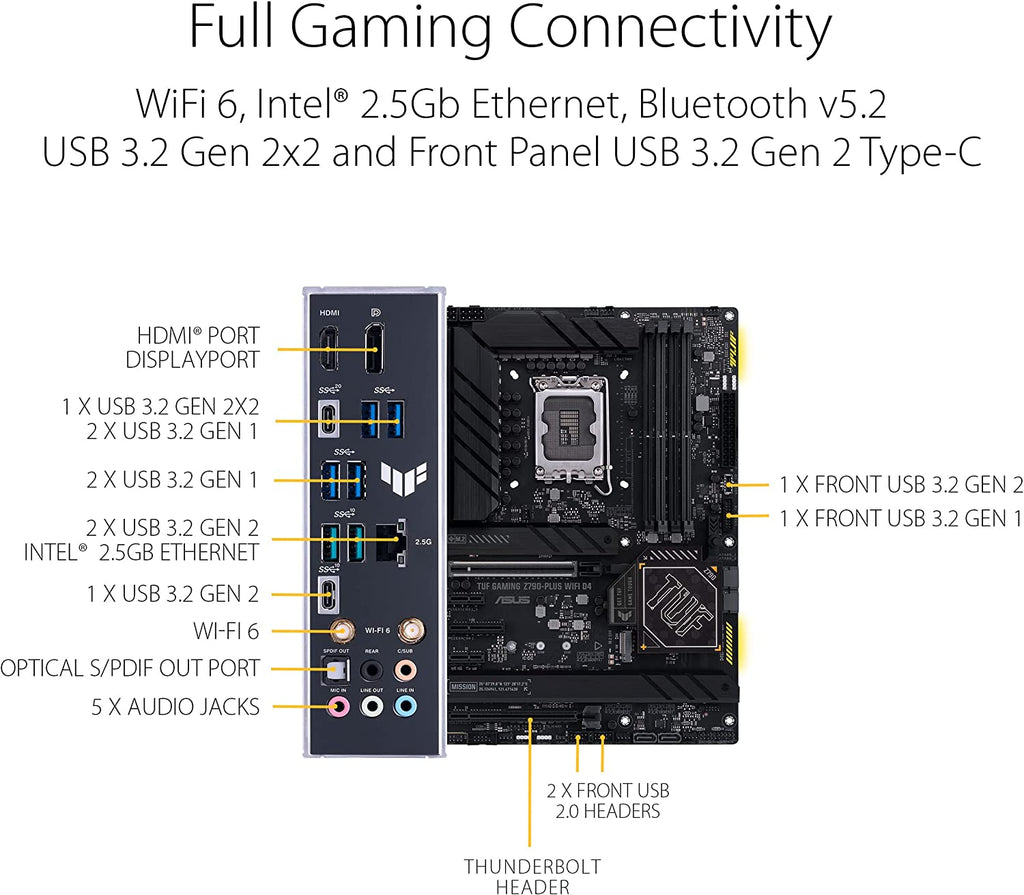

The TUF-GAMING Z790-PLUS WIFI D4 reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports include three Type-C connections and Thunderbolt 4, which expands compatibility and bandwidth even further.
1. USB 3.2 Gen 2x2 Type-C
2. PCIe 5.0
3. Thunderbolt(USB4) Support
4. Front USB3.2 Gen 2 Type-C
The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps*. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
SafeSlot & SafeDIMM
SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
