Description

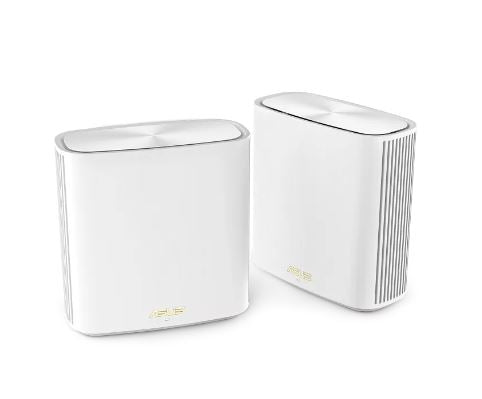

ASUS AX5400 DUALBAND MESH GIGABIT ROUTER 802.11AX, GbE, ANT(6) WHITE,3YR
Model Name
XD6S (W-2-PK)
XD6 (W-2-PK)
XD6 (W-2-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
internal antenna x 6
Transmit/Receive
2.4GHz 2x2
5GHz 4x4
5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
XD6
256 MB Flash
512 MB RAM
XD6S
128 MB Flash
512 MB RAM
256 MB Flash
512 MB RAM
XD6S
128 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 G Hz / 5 GHz
Ports
XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
Button
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
DC Output : 12 V with max. 2 A current
Package content
ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide
ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
RJ-45 cable
Power adapter
Warranty card
Quick start guide
ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
Product Weight (g)
XD6: 435 g
XD6S: 425 g
XD6S: 425 g
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history
Wireless
IPv6
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 9
Guest Network Connection time limit
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 9
Guest Network Connection time limit
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
Port forwarding
Maximum port forwarding rule : 64
Port triggering
DMZ
DDNS
Let's Encrypt
Dual WAN
Port forwarding
Maximum port forwarding rule : 64
Port triggering
DMZ
DDNS
Let's Encrypt
LAN
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
IGMP snooping
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
Administration
Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
