Description

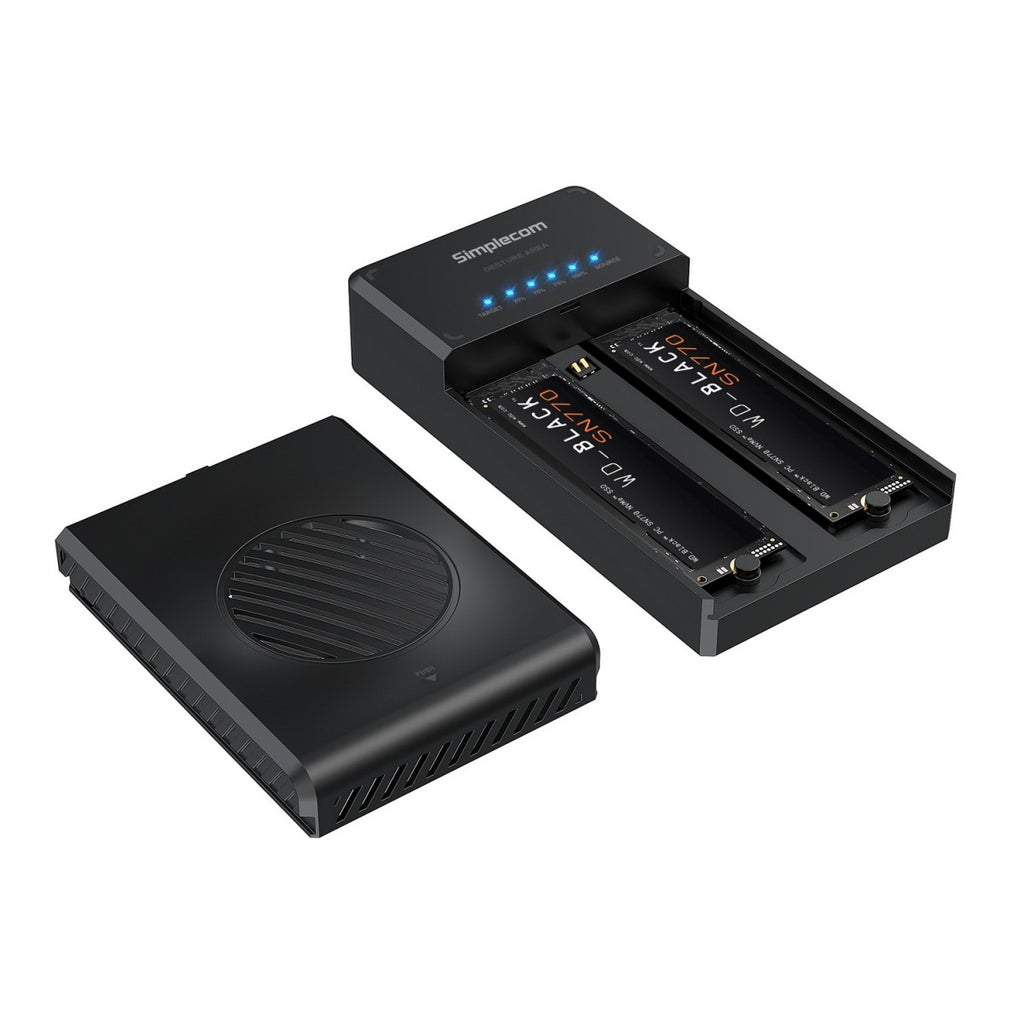

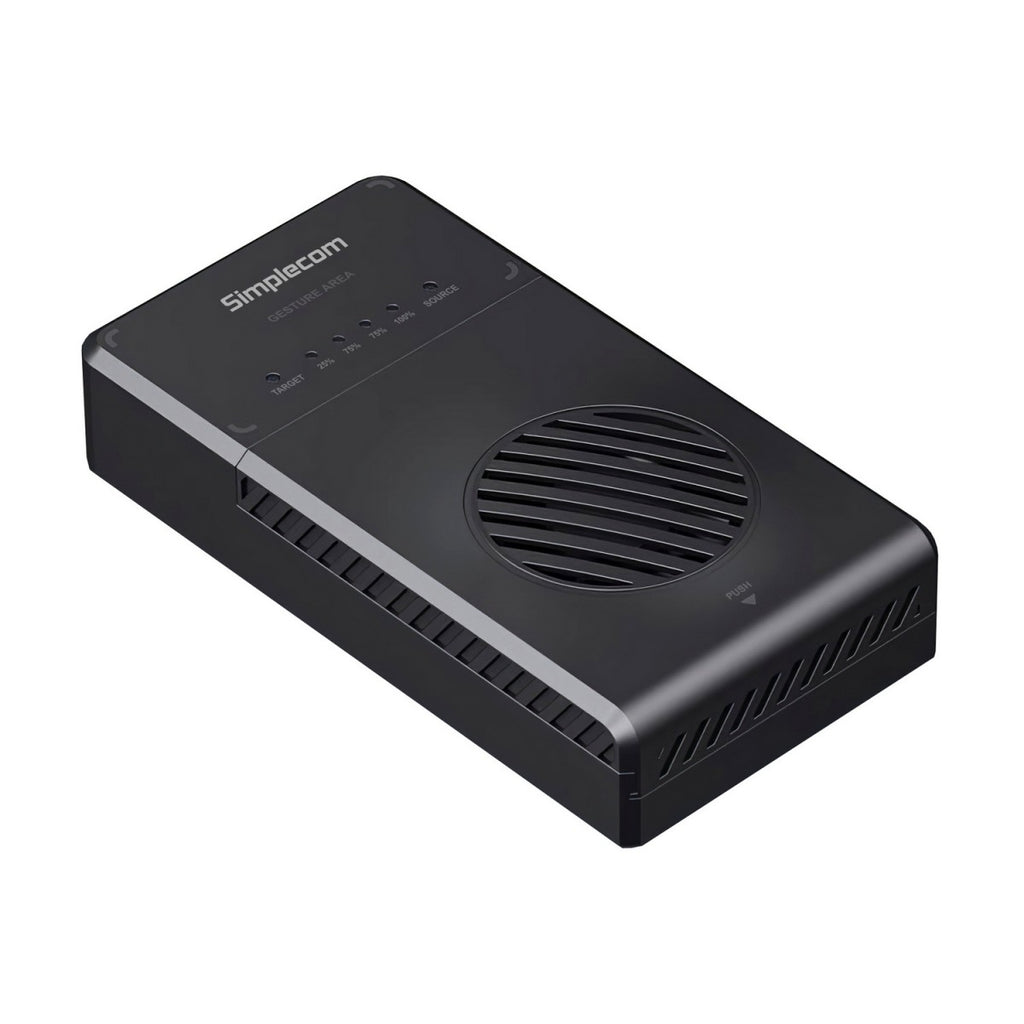

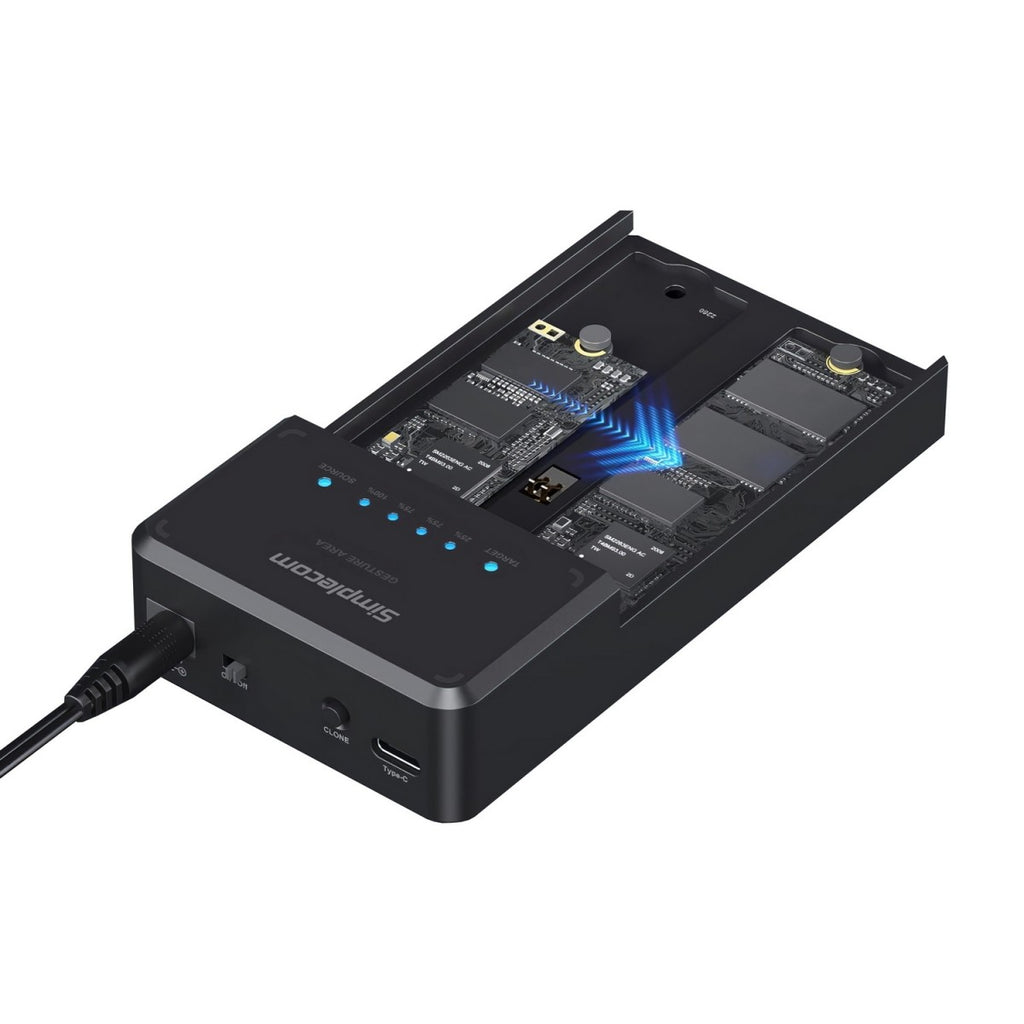

Simplecom SD560 Dual Bay NVMe M.2 SSD Enclosure Offline Clone Docking Station USB 3.2 Gen2 10Gbps
SD560 is a dual bay NVMe M.2 SSD docking station that supports accessing of two NVMe M.2 SSDs simultaneously from a computer. It can also be used as a standalone duplicator dock when not connected to a computer, which makes it easy to clone NVMe M.2 SSD without the need for a host PC, ideal for data backup and migration.

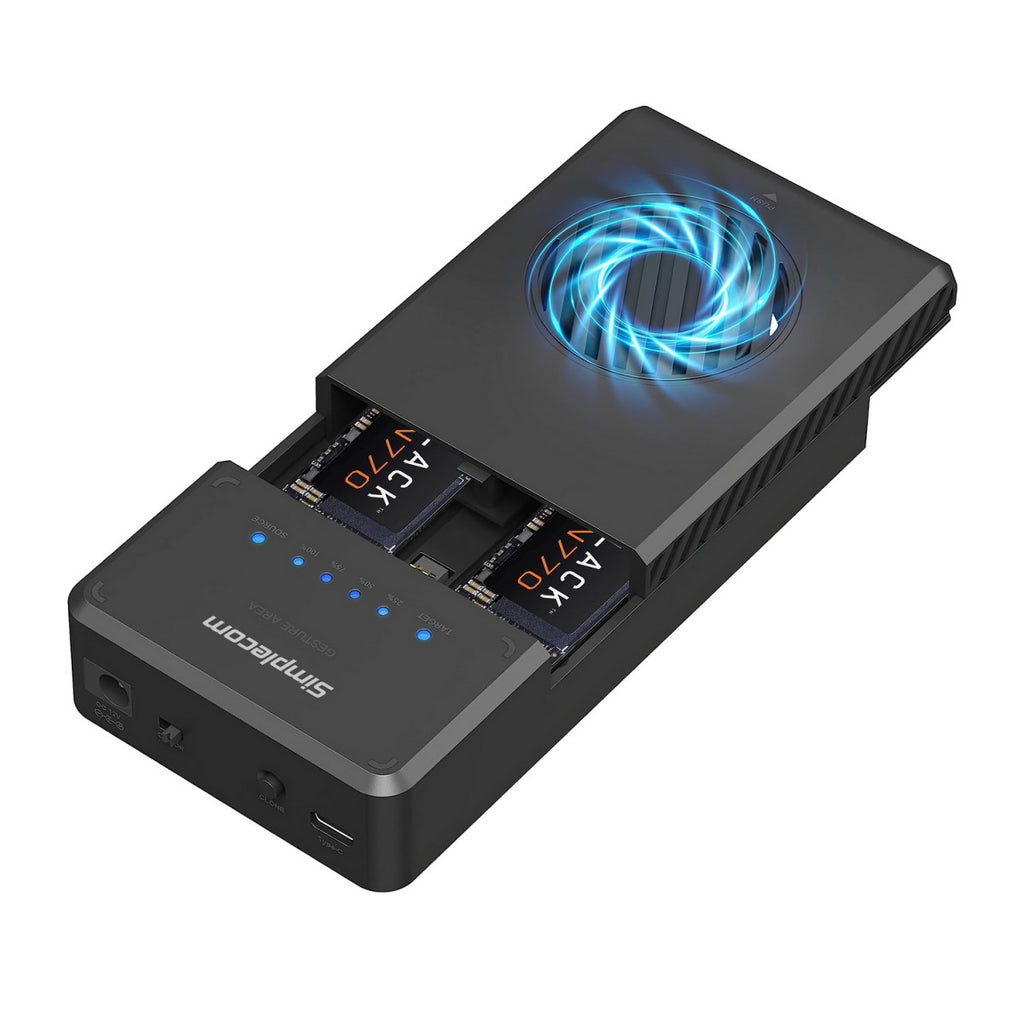

The dual bay NVMe docking station is equipped with a silent 40mm cooling fan, which provides a significant decrease in temperature compared to passive cooling enclosures. The cooling fan provides better heat dissipation and prevents your SSDs from throttling due to high temperature, ensuring performance and stability during data transmission.

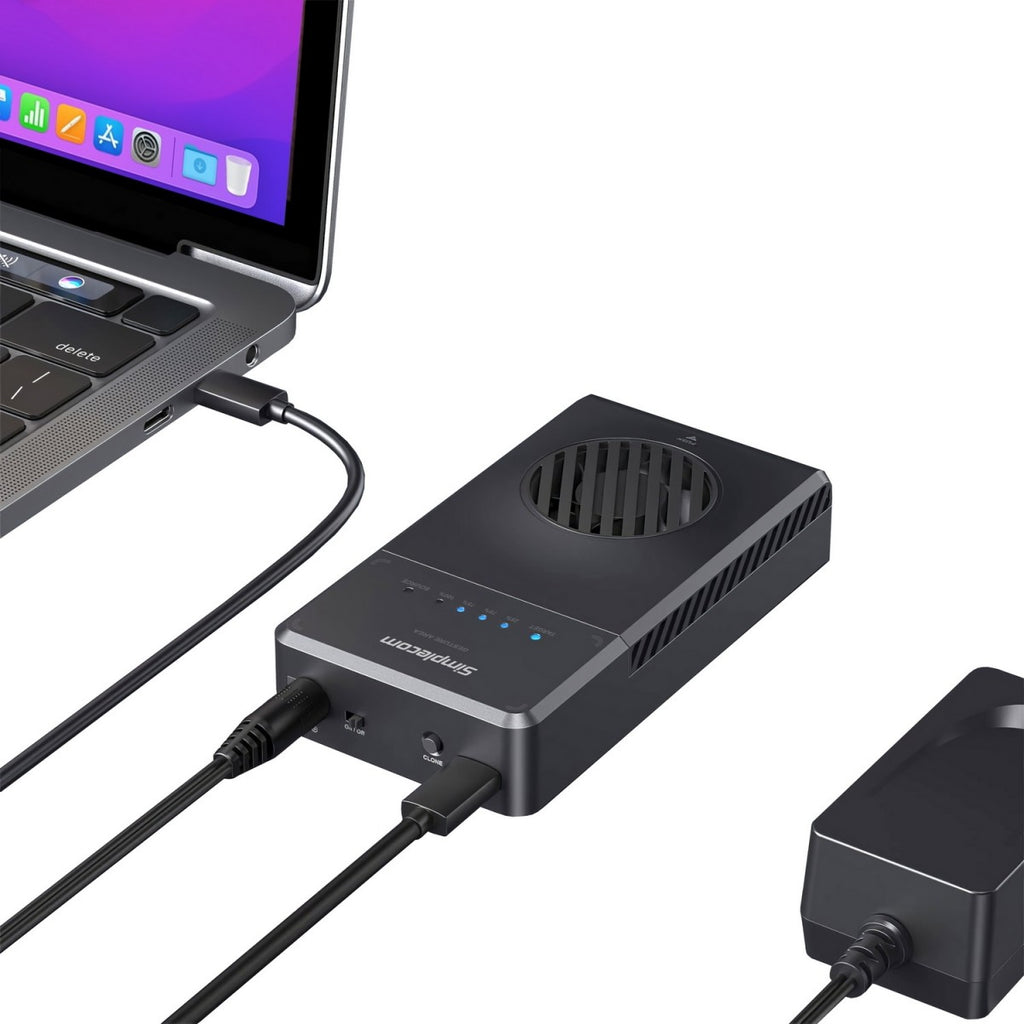

With multi-LUN (logical unit number) support, it is easy to transfer or back up files between two NVMe SSDs. It will show two separate drive letters when connected to a PC, so you can copy files from one drive to another easily. Fast USB 3.2 Gen2 interface support up to 10Gbps data transfer rate and can be easily attached to PC USB port.

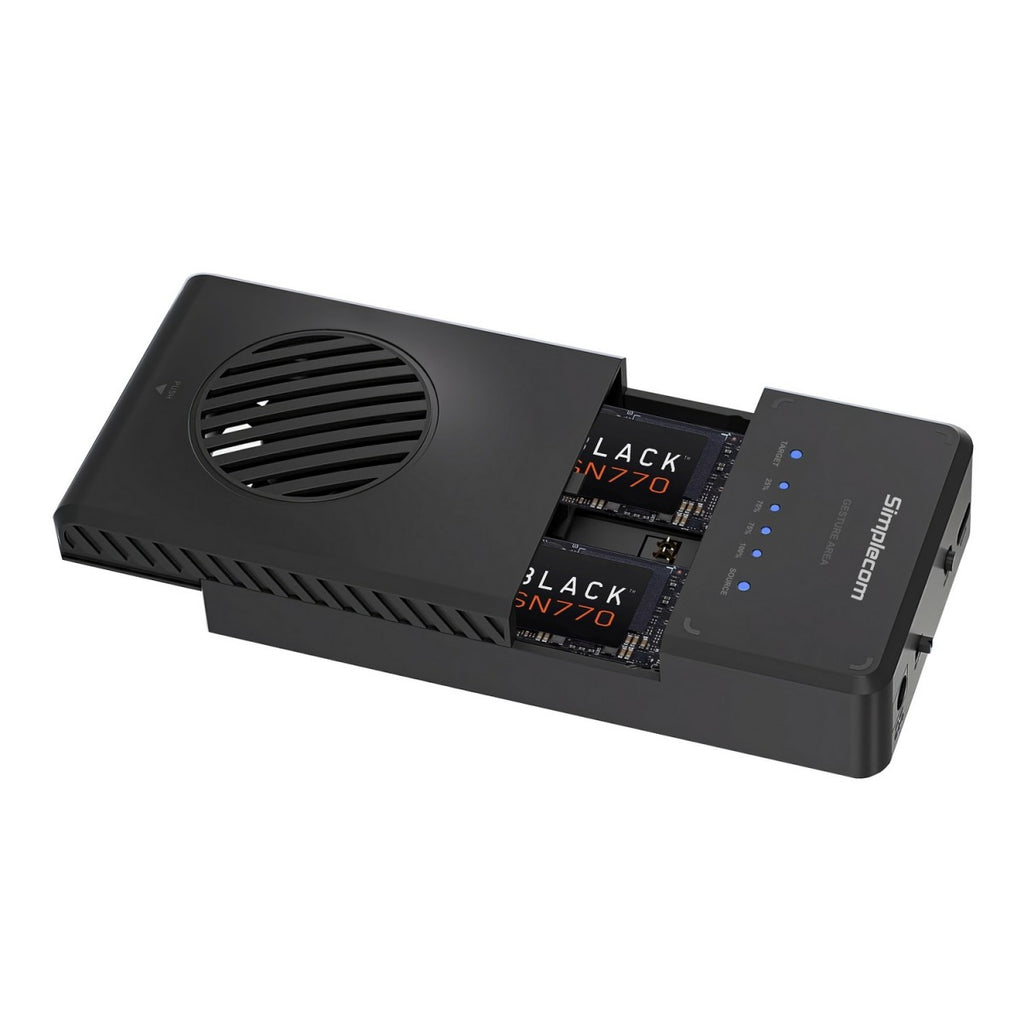

This docking station is compact and portable, sliding lid design for fast opening and installation of SSDs and 100% tool-free. It provides a simple and fast solution for backup data, batch processing data, formatting, file transfers, data recovery, and more.
Features
- Dual Bay NVMe M.2 SSD docking, support NVMe M.2 SSDs only
- Access data from two NVMe M.2 slots simultaneously
- Support multi-LUN (logical unit number), each slot has a separate drive letter
- USB 3.2 Gen2 interface support up to 10Gbps data transfer rate
- Support offline clone, standalone duplicating/cloning without host computer
- Built-in cooling fan significantly reduces operating temperature
- Intelligent fan control, auto-off when SSD is idle
- Compact and portable design, save and tidy your desktop space
- LED light indicates power and activity status
Specifications
- Model: SD560
- Interface: USB-C (USB 3.2 Gen 2)
- Transfer Rate: up to 10Gbps
- SSD Support: NVMe M.2 Only
- SSD Size Support: 2230 / 2242 / 2260 / 2280
- Multi-LUN Support: Yes
- DC Input: 12V2A
- Material: ABS, Aluminium
- Net Weight: 115g
- Dimensions: 125 x 65 x 25mm
- Cooling Fan: 4410 5V Fan (auto-on when SSD is reading or writing, and auto-off when SSD is idle)
- Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents
- 1x SD560 Docking Station
- 1x USB-C and USB-A Combo Cable
- 1x Power Adapter (12V2A)
- 1x User Manual
